CleaverBrooks Model 4 User Manual

Model 4
1500 - 6000 MBTU/hr
Rev. 03-08
Section B2-12
ITEM PART DESCRIPTION
SIZES
INCHES
Sizes 1500 TO 2500
1 Butterfly Valve 1-1/2
2 Pilot Shutoff Cock 1/2
3 Pilot Gas Regulator 1/2
4 Pilot Solenoid Valve 1/2
5 Manual Shutoff Valve 1-1/2
6 Main Gas Regulator 1-1/2
7 Motorized Valve with P.O.C. 1-1/2
Size 3000
1 Butterfly Valve 1-1/2
2 Pilot Shutoff Cock 1/2
3 Pilot Gas Regulator 1/2
4 Pilot Solenoid Valve 1/2
5 Manual Shutoff Valve 1-1/2
6 Main Gas Regulator 1-1/2
7 Low Gas Pressure Switch 1/4
8 Motorized Valve with P.O.C. 1-1/2
9 High Gas Pressure Switch 1/4
Sizes 3500 to 5000
1 Butterfly Valve 2
2 Pilot Shutoff Cock 1/2
3 Pilot Gas Regulator 1/2
4 Pilot Solenoid Valve 1/2
5 Manual Shutoff Valve 2
6 Main Gas Regulator 2
7 Low Gas Pressure Switch 1/4
8 Motorized Valve with P.O.C. 2
9 High Gas Pressure Switch 1/4
Size 6000
1 Butterfly Valve 2
2 Pilot Shutoff Cock 1/2
3 Pilot Gas Regulator 1/2
4 Pilot Solenoid Valve 1/2
5 Manual Shutoff Valve 2
6 Main Gas Regulator 2-1/2
7 Low Gas Pressure Switch 1/4
8 Motorized Valve (std) 2
9 Motorized Valve with P.O.C. 2
10 High Gas Pressure Switch 1/4

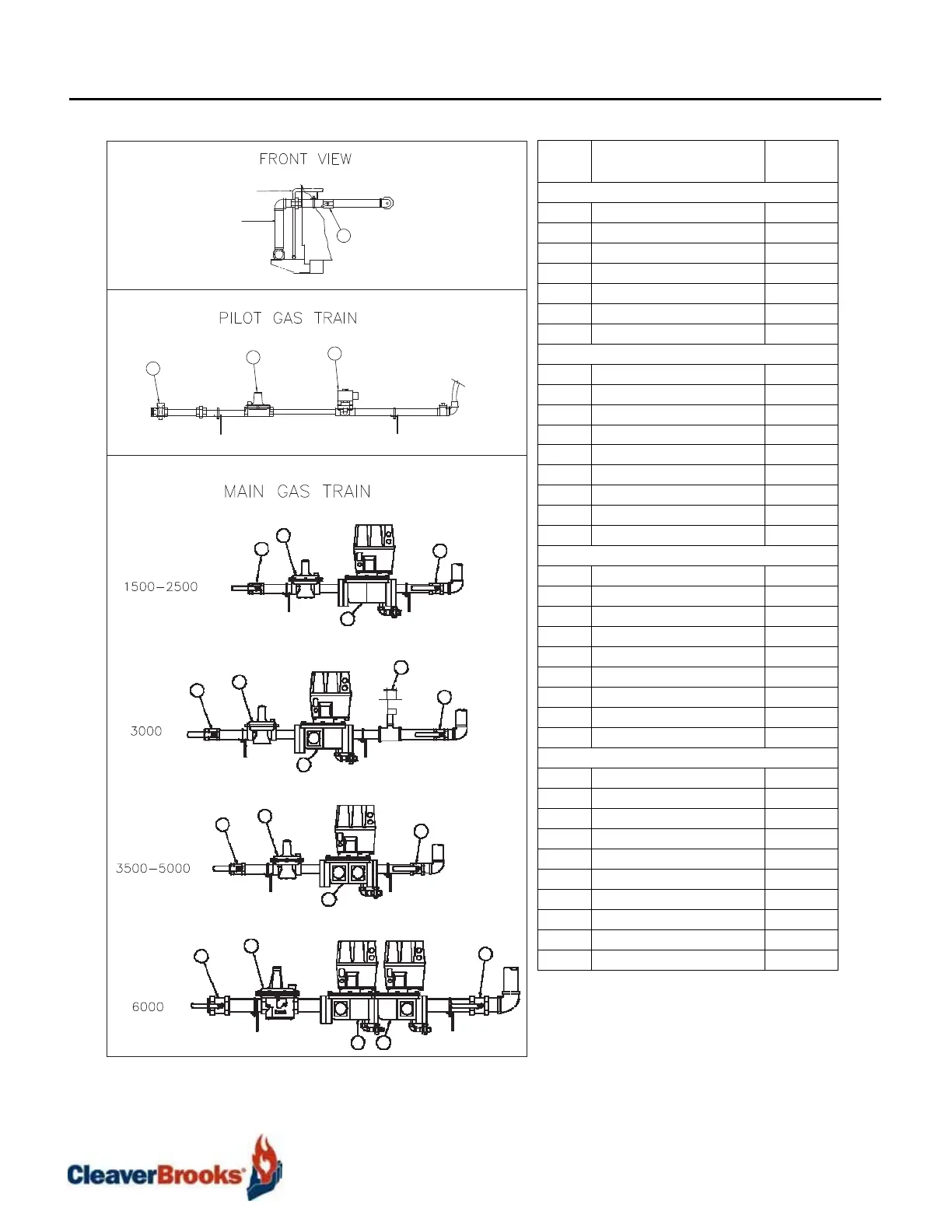

Figure B2-2. Model 4 Standard Pilot and Main Gas T r ains
Pilot
Main
1
3
4
2
6
5
5
7
9
6
5
5
7
8
6
5
5
7
9
8
6
5
5
7
10
8 9
