Clesana C1 - Finishing works; Install the round base; Prepare the round base; Mount the round base

23/3222/32

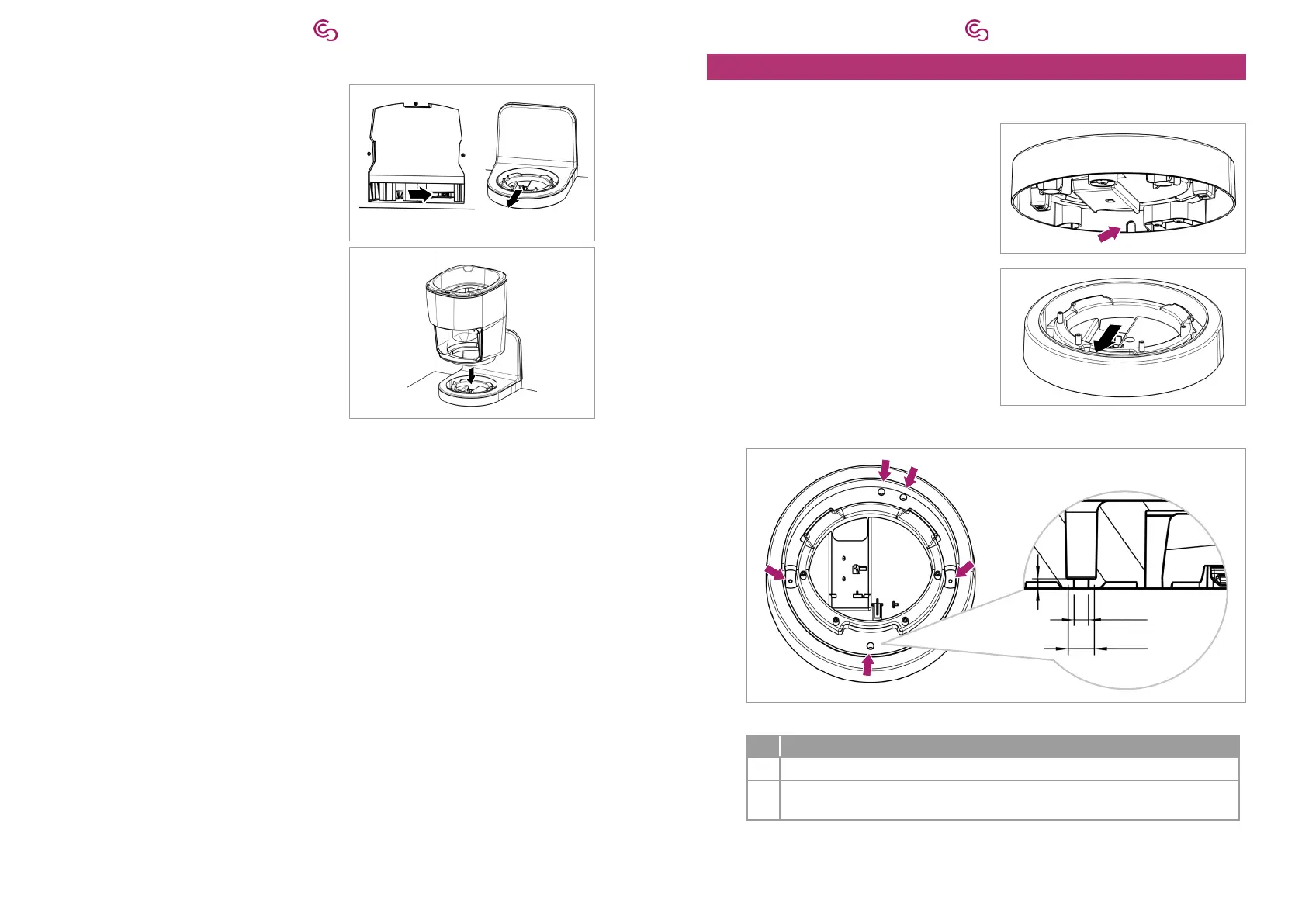

8.3. Finishing works
1. Pull the power cable and the control
cable for the control panel into the
L-Adapter from behind.
2. Place the base body on the L-Adapter.
9. Install the round base
9.1. Prepare the round base
1. 

2. Pull the ends of the power cable and
the control cable for the control panel
through the opening into the round
base.
9.2. Mount the round base
ø 4.4
3
ø 8.1
Fig. 5: 
No. Tools and consumables
1 Screwdriver
5 

1. 
2. 
