Mainboard Overview - Top (Connectors)

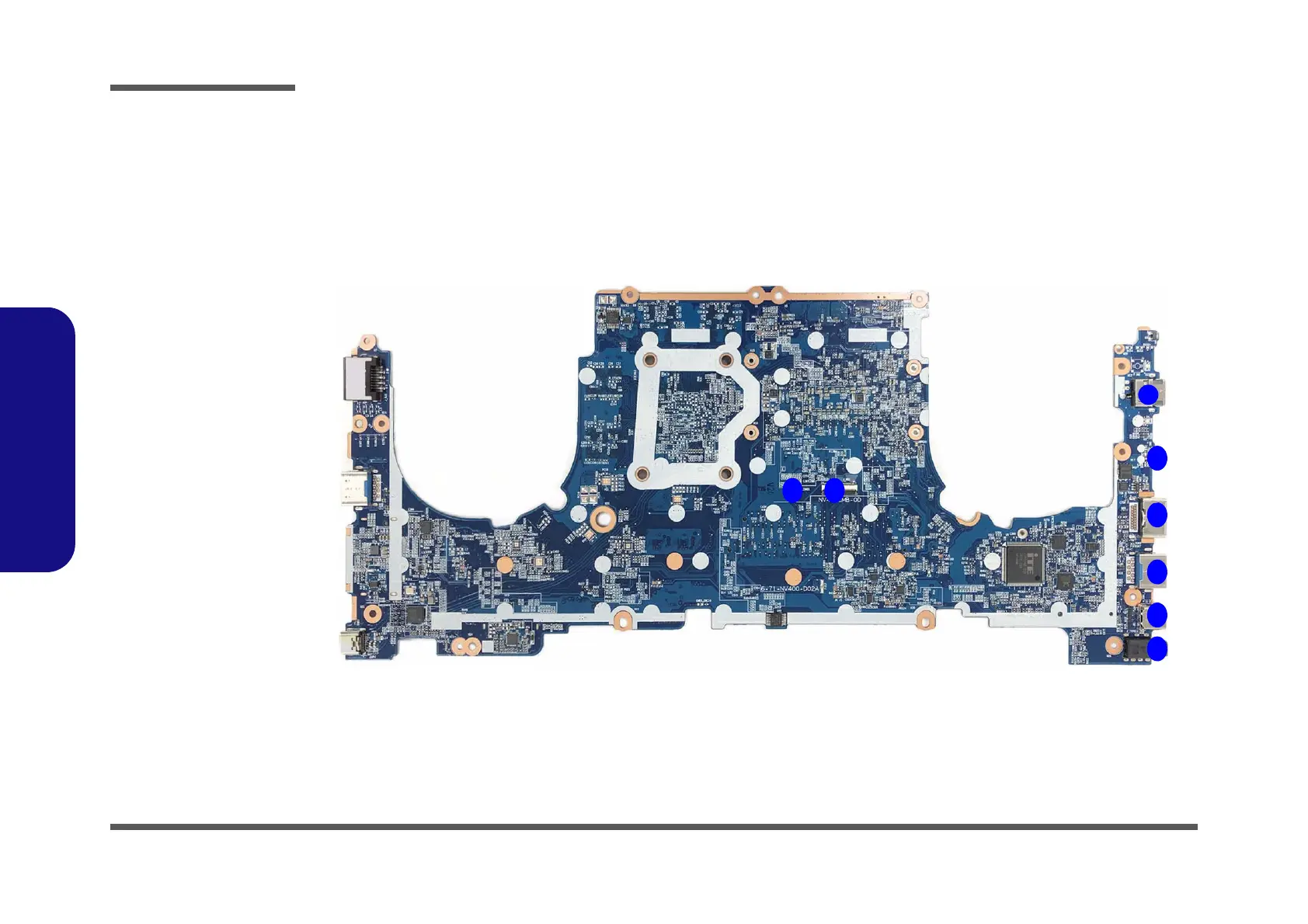

Figure 9
Mainboard Top
Connectors
1. DC-In Jack
2. Power Button
3. HDMI-Out Port
4. USB 3.1 Gen 2
Type-A Port
5. USB 3.1 Gen 2
Type-C Port
6. 2-In-1 Audio Jack
(Headphone /
Microphone)
7. Keyboard
Connector
8. LED KB
Connector
11
1
2
3
4
5
6
78
