Clevo P775DM2-G - Vccsa; Vccgt

Schematic Diagrams
B - 52 VCCSA / VCCGT
B.Schematic Diagrams

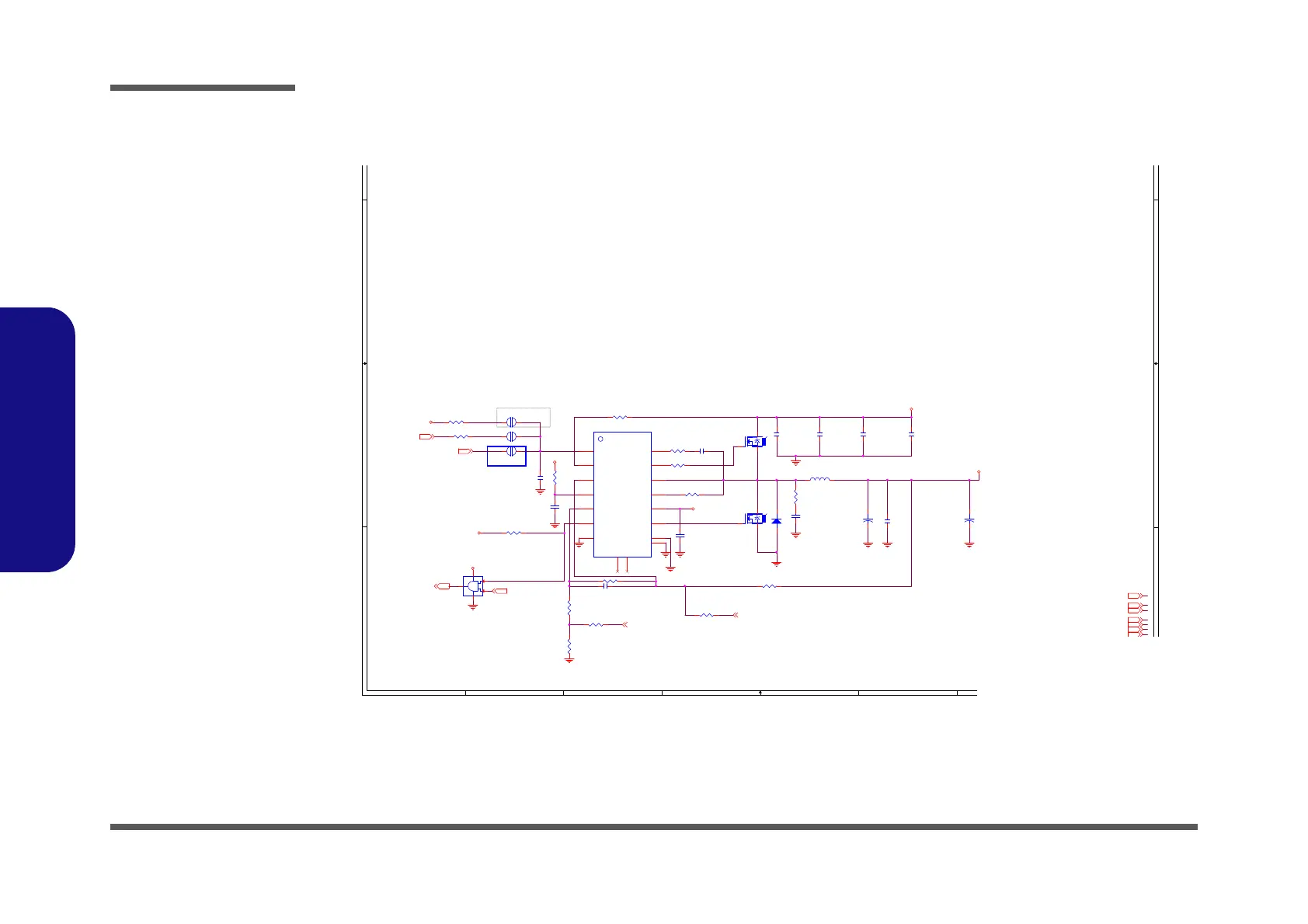

VCCSA / VCCGT
Sheet 51 of 70
VCCSA / VCCGT
8 7 6 5 4 3 2 1
C C
B B
A A
11.1A
For CV test
VCCSA
(40.2K/100K+1)*0.75=1.05V
DEFAULT
1~1.1V
VR_READY_SA
VCCSA_EN
3.3VS
5V
VIN
5V
VCCSA
VDD3
3.3VS
3.3VS7,8,9,10,11,14,15,16,17,18,19,20,21,24,25,26,27,28,30,31,32,33,34,36,38,41,42,43,44,46,47,49
VIN11,15,29,30,43,44,45,46,47,48,49,50,52
5V15,21,24,27,39,40,43,44,46,47,49,50
VCCST_VCCPLL3,5,18,46,49
VCCSA5
VDD315,16,17,18,20,21,25,30,31,33,35,43,45,46,47,52
3.3V2,11,15,17,24,25,27,38,42,43,44,46,47
VCCIO_PWRGD21,43,49
VSS_SA_IO_SENSE 5
VCCSA_SENSE 5
VCCIO_EN43
VR_READY17,21
VR_READY_VCORE 49
Tit le
Size Document Number R e v
Date: Sheet
of
6-71-P7750-D32
2.0
[50] VCCSA/VCCGT
Custom
51 70Thursday, July 14, 2016
ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/
SCHEMATIC1
Tit le
Size Document Number R e v
Date: Sheet
of
6-71-P7750-D32
2.0
[50] VCCSA/VCCGT
Custom
51 70Thursday, July 14, 2016
ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/
SCHEMATIC1
Tit le
Size Document Number R e v
Date: Sheet
of
6-71-P7750-D32
2.0
[50] VCCSA/VCCGT
Custom
51 70Thursday, July 14, 2016
ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/
SCHEMATIC1
PC111
*0.01u_16V_X7R_04
PR55
100_04
PR17
2.2_04
PC44
4.7u_25V_X5R_08
PC113
1u_6.3V_X5R_04
PJ31 *CV-40mil
1 2
PR37 2.2_1%_06
PC20
0.1u_10V_X7R_04
PR16
100K_1%_04
PR160 40.2K_1%_04
PR14 10K_04
PC120
4.7u_25V_X5R_08
U1
U74AHC1G08G-AL5-R
1
2
5
4
3
PR57 100_04
PC22
0.1u_50V_Y5V_06
PC109 *15p_50V_NPO_04
PR173 0_06
PQ3
MDU1516
ULTRASO-8
G
DS
PR38 4.3K_1%_04
PR15 100K_04
PD10CSOD140SH
A C
PC48
22u_6.3V_X5R_08
PU10
G5602R41U
VOUT
1
EN_PSV
15
TON
16
VCC
2
VFB
3
PGOOD
4
AGND
6
BST
13
DH
12
LX
11
ILIM
10
VDD
9
DL
8
PGND
7
PGND
17
NC
5
NC
14
PR58 0_04
PL3
BCIHP0730-1R0M
PCB Footprint = BCIHP0735A
1 2
PJ33 *CV-40mil
1 2
PC233
0.1u_50V_Y5V_06
PC124
2200p_50V_X7R_04
PR56 0_04
PR197
2.2_1%_06
PQ24
MDU1512
ULTRASO-8
G
DS
+
PC129
*560u_2.5V_6.6*6.6*5.9
PC110
1u_6.3V_X5R_04
PR18 10K_04
+
PC126
560u_2.5V_6.6*6.6*5.9
PJ32 1mm
1 2
PR36 820K_1%_06
