Disassembly
Removing the Wireless LAN Module 2 - 17
2.Disassembly
Removing the Wireless LAN Module
1. Turn off the computer, remove the battery (page 2 - 5), CPU (page 2 - 12) and the keyboard (page 2 - 15).
2. The Wireless LAN module will be visible at point under the keyboard (Figure 13a).
3. Carefully disconnect cables - , then remove screw from the module socket (Figure 13b).
4. The Wireless LAN module will pop-up (Figure 13c).
5. Lift the Wireless LAN module (Figure 13d) up and off the computer
.

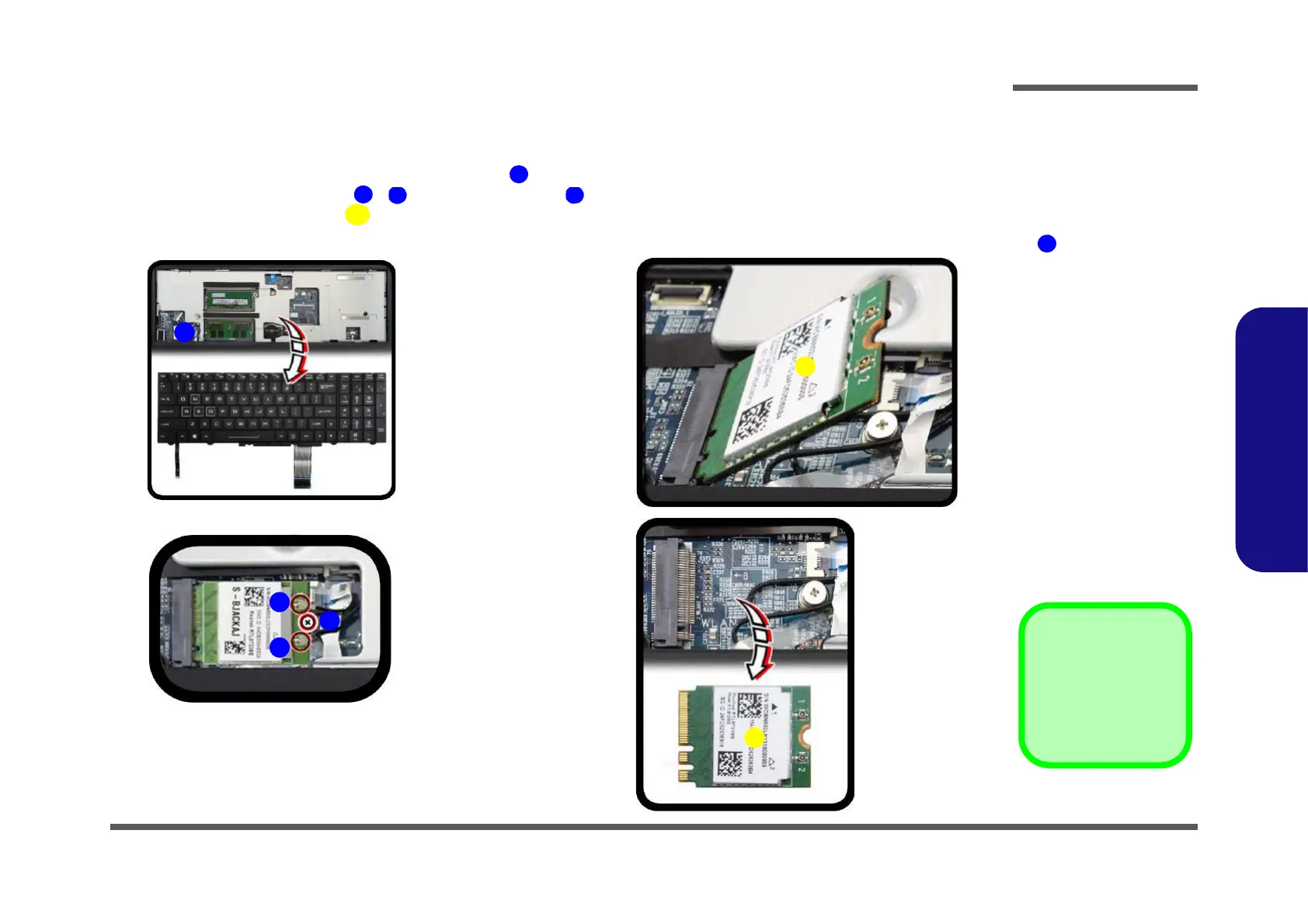

Figure 13
Wireless LAN
Module Removal
a. The Wireless LAN mod-
ule will be visible at point
under the keyboard
b. Disconnect the cables
and remove the screw.
c. The WLAN module will
pop up.
d. Lift the WLAN module
out.
To Next Page
