Front & Rear Views 1 - 21
Quick Start Guide
1
Power Converter & Dual Adapters
The power converter allows you to use the 2 identical AC/DC adapters supplied with your system (the power
rating of each adapter is identical) to power your computer. This system is used to prevent power issues arising
when using high-end games and 3D applications etc.
Attach the power converter to the DC-In jack at the rear of the computer (make sure you remove any protective
covers), then plug AC/DC adapters into the jacks at the rear of the converter. Plug the AC power cords into an
outlet, and connect the AC power cords to the AC/DC adapters.
1 1

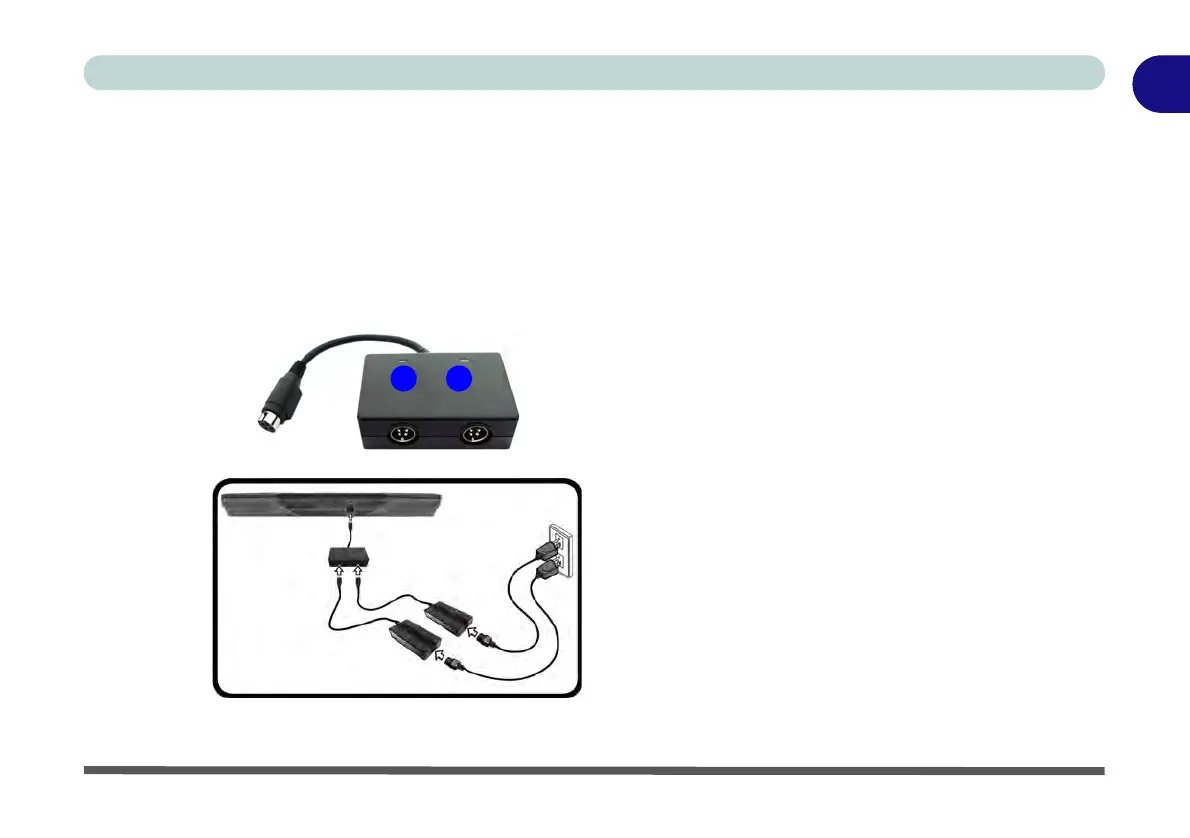

Figure 1 - 13
Power Converter and Dual Adapters
1. LED Indicators (will be illuminated in
green when the AC/DC adapters are
plugged-in and connected to a working
power outlet)
