1 - 24 Right View
Quick Start Guide
1

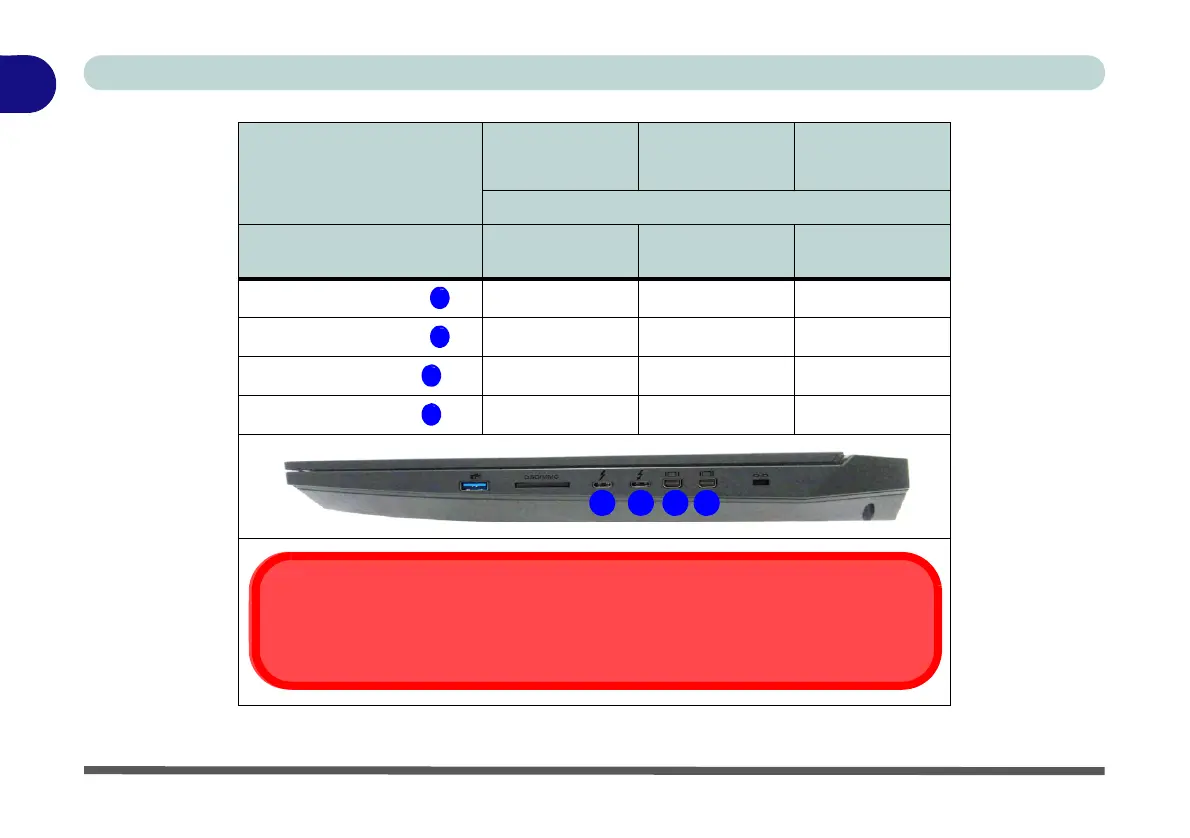

Table 1 - 5 - Thunderbolt Ports Set for Display (Right View)
* Thunderbolt 3
Ports Disabled
(Default Setting)
Thunderbolt 3
1 * Port Enabled
Thunderbolt 3
2 * Ports Enabled
BIOS Settings - Display Digital Interface (DDI) Control
PORT #
DDI to mDP
(Default Setting)
1 DDI to TBT 2 DDI to TBT
Thunderbolt 3 Port #1
Disabled Enabled Enabled
Thunderbolt 3 Port #2
Disabled Disabled Enabled
Mini DisplayPort #1
Enabled Disabled Disabled
Mini DisplayPort #2
Enabled Enabled Disabled
Thunderbolt Ports for Display
The display configuration for the Thunderbolt ports and Mini Display Ports can be set up in the
BIOS (see “DDI Control (Advanced Menu > Advanced Chipset Control)” on page 5 - 10).
