Disassembly
Removing and Installing the Heatsink 2 - 13
2.Disassembly

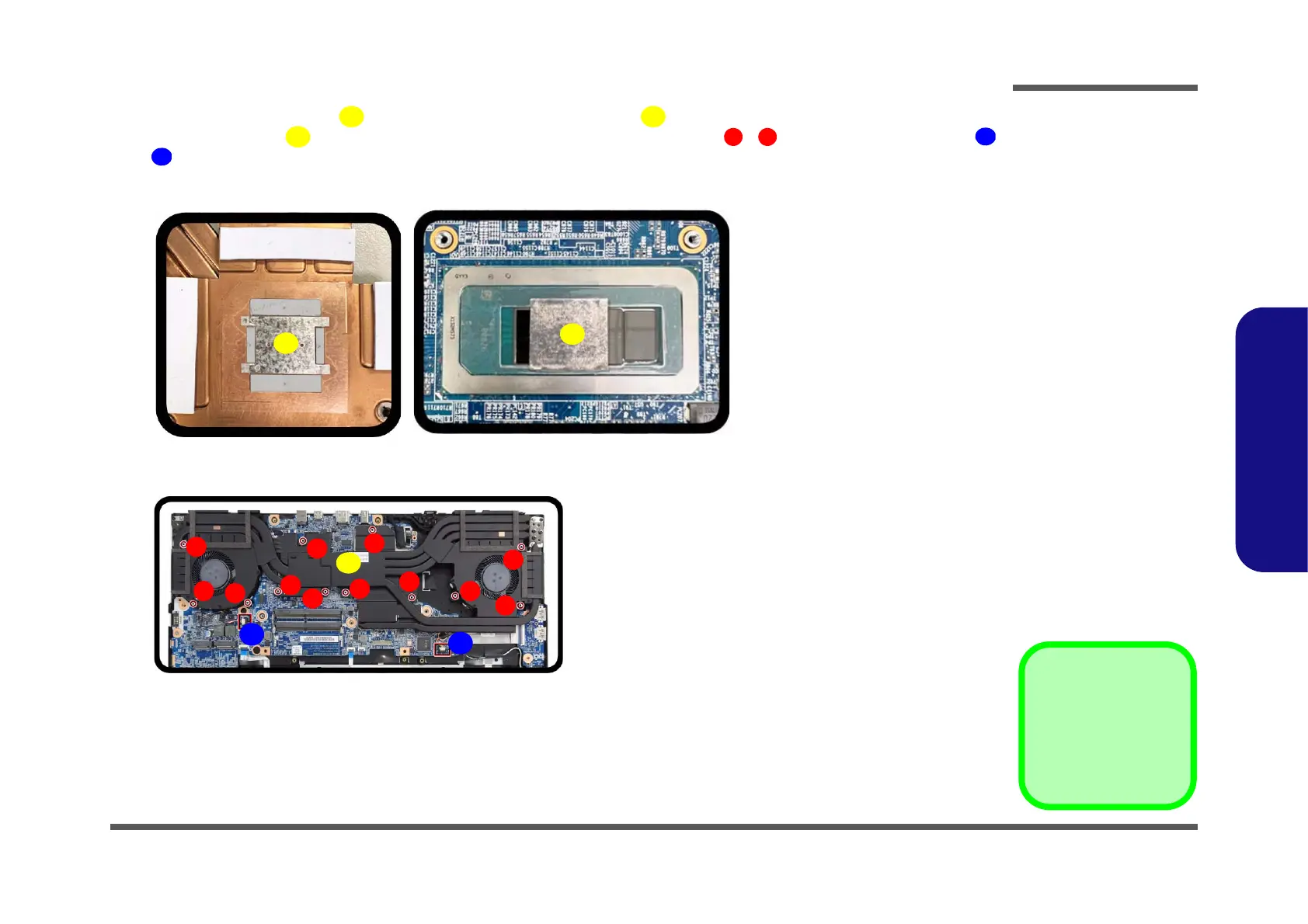

6. Place the VGA metal pad in the heatsink and CPU metal pad in the mainboard accordingly (Figure 9f).
7. Insert the heatsink
and tighten the heat sink screws in the order indicated - and reconnect the cables
- (Figure 9g).
8. Replace the bottom cover and tighten the screws (page 2 - 5).
7
8
A
1
12
B
C
f.
g.
Note:
Tighten the screws in the
order 1-2-3-4-5-6-7-8-9-
10-11-12 as indicated.
B
7
4
2
3
1
5
6
7
8
11
9
10
12
C
8
A
7. VGA Metal Pad
8. CPU Metal Pad
A. Heat Sink
•12 Screws
Figure 9
Heatsink Installation
(cont’d.)
f. Place the VGA metal
pad and CPU metal pad
accordingly.
g. Insert the heat sink and
tighten the screws. Con-
nect the cables.
