Mainboard Overview - Bottom (Connectors) 1 - 11
1.Introduction

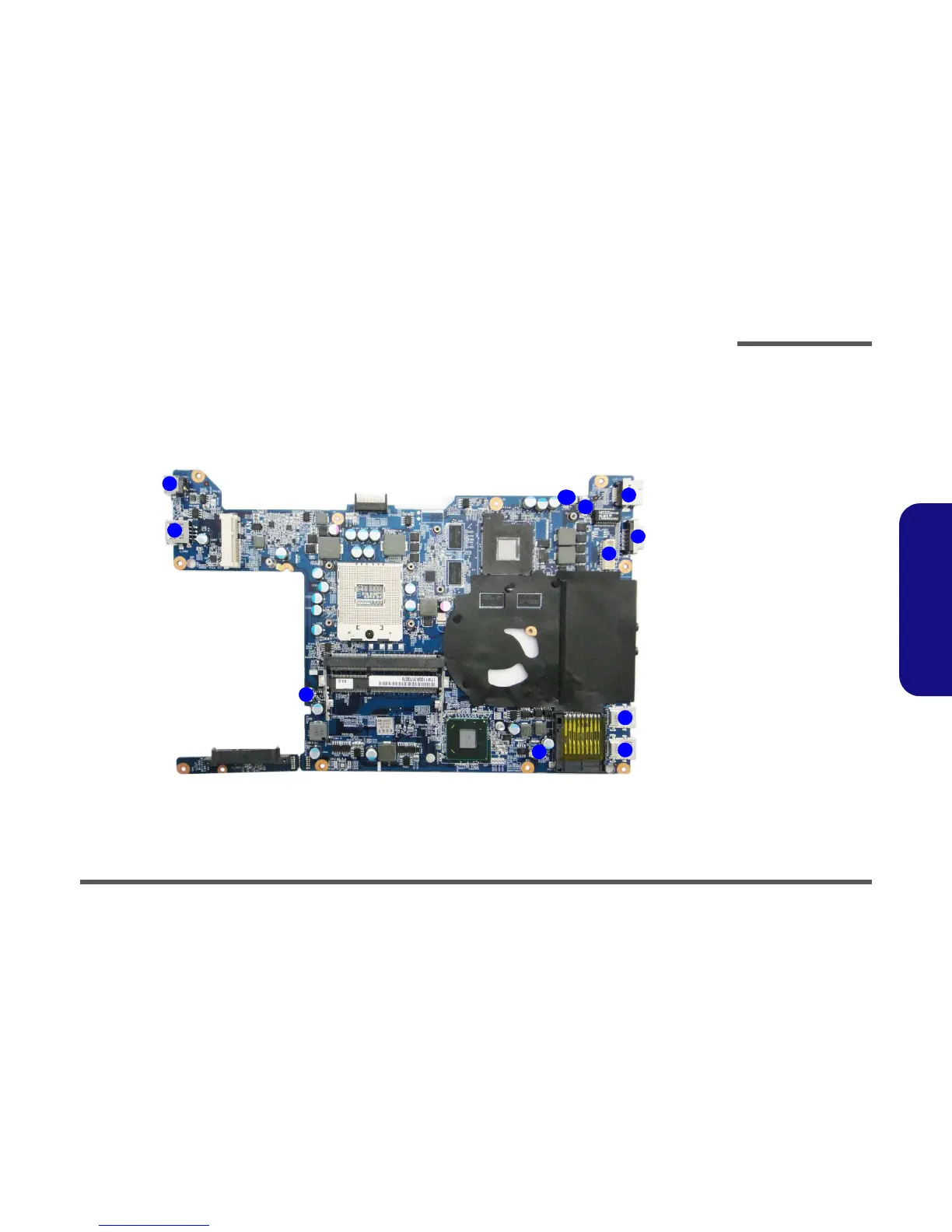

Mainboard Overview - Bottom (Connectors)
Figure 10
Mainboard Bottom
Connectors
1. DC-In Jack
2. USB 2.0 Ports
3. CMOS Battery
Connector
4. Fan Cable
Connector
5. USB Port
6. LVDS Cable
Connector
7. External Monitor
Port
8. RJ-45 Lan Port
9. CCD Cable
Connector
10.Speaker Cable
Connector
8
9
10
7
1
2
4
5
6
3
5
