Clevo w110er Service Manual

Disassembly
2 - 14 Removing the Wireless LAN Module
2.Disassembly
Removing the Wireless LAN Module
1. Turn off the computer, remove the battery (page 2 - 5) and the component bay cover (page 2 - 6).
2. The Wireless LAN module will be visible at point (Figure 10a) on the mainboard.
3. Carefully disconnect cables & , then remove screw from the module socket (Figure 10b
).
4. The Wireless LAN module (Figure 10c) will pop-up.
5. Lift the Wireless LAN module (Figure 10d) up and off the computer.

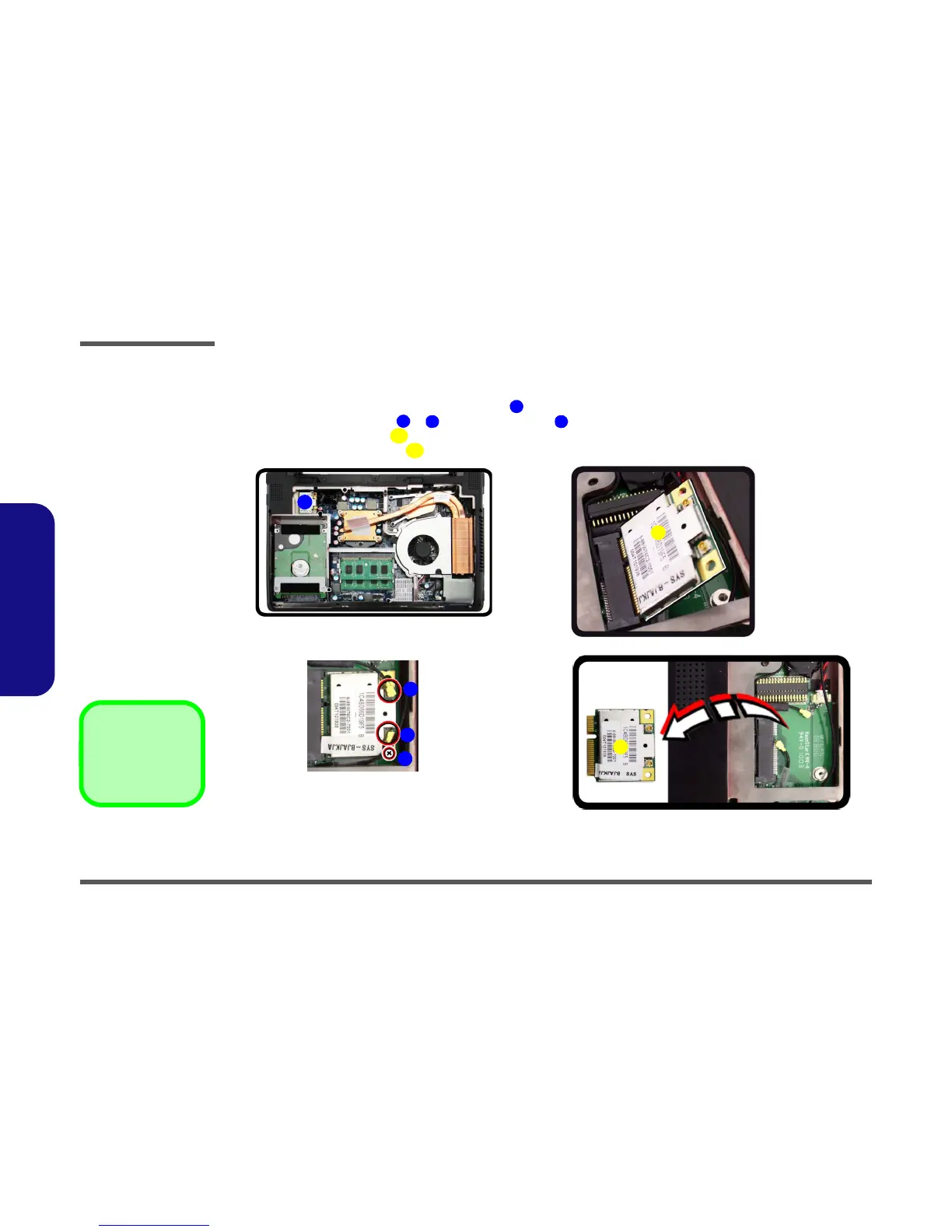

Figure 10
Wireless LAN
Module Removal
a. Locate the wireless LAN
module.
b. Disconnect the cables
and remove the screw.
c. The WLAN module will
pop up.
d. Lift the WLAN module
out.
Note: Make sure you
reconnect the antenna
cable to ‘’1’’ +
‘’2’’socket (Figure
b).
1
2
3
4
5
5
5
4
b.
a.
2
3
1
5
d.
c.

5. WLAN Module.
•1 Screw
