Disassembly
2 - 10 Removing and Installing a Processor
2.Disassembly
5. Turn the release latch towards the unlock symbol , to release the CPU (Figure 6d).
6. Carefully (it may be hot) lift the CPU up out of the socket (Figure 6e).
7. See page 2 - 11 for information on inserting a new CPU.
8. When re-inserting the CPU, pay careful attention to the pin alignment, it will fit only one way (DO NOT FORCE IT!).
D
E

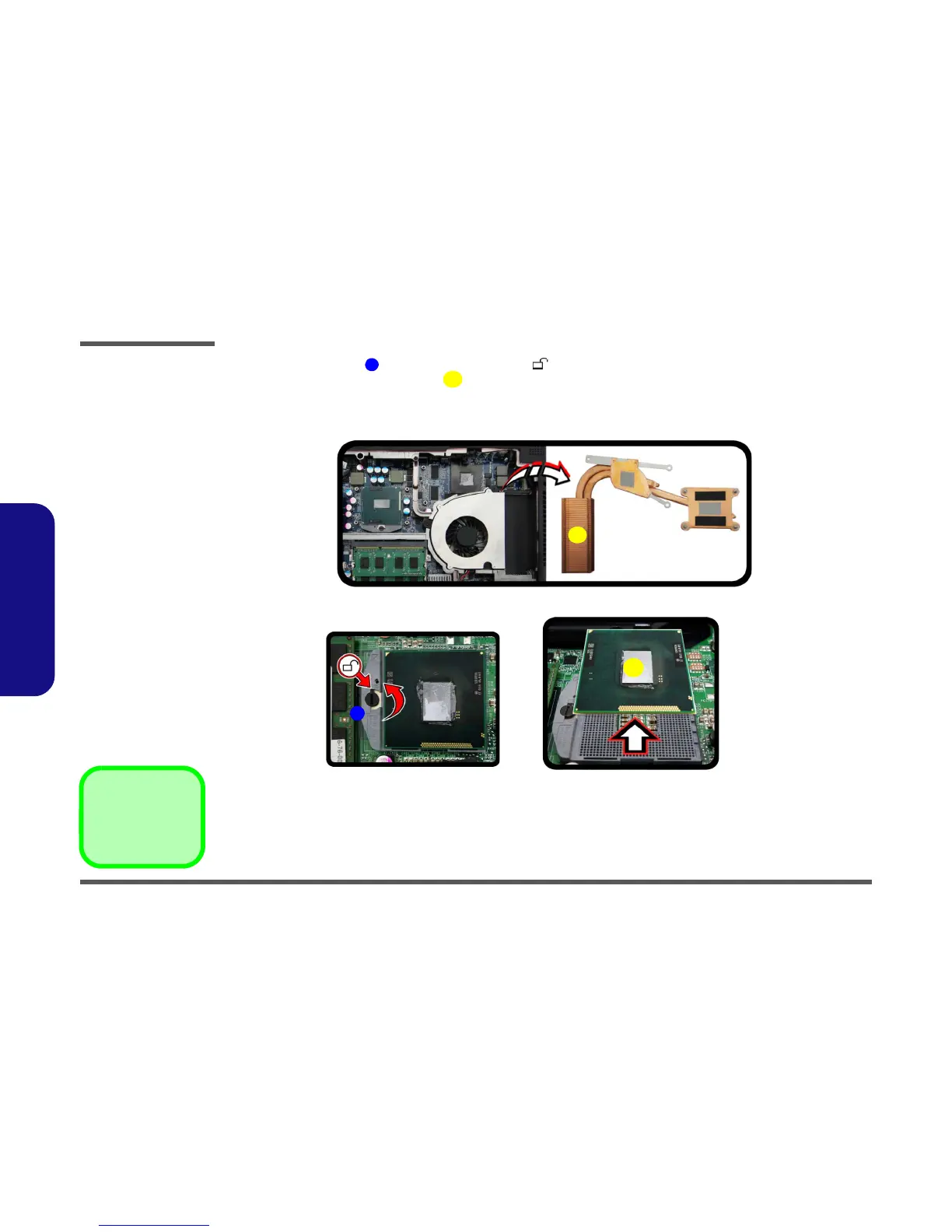

Figure 6
Processor Removal
(cont’d)
c. Remove the heat sink.
d. Turn the release latch to
unlock the CPU.
e. Lift the CPU out of the
socket.
d.
e.
c.
B
Unlock
E
D

B. Heat Sink
E. CPU
