Clevo W150ERQ User Manual

Disassembly
Removing the Hard Disk Drive 2 - 9
2.Disassembly

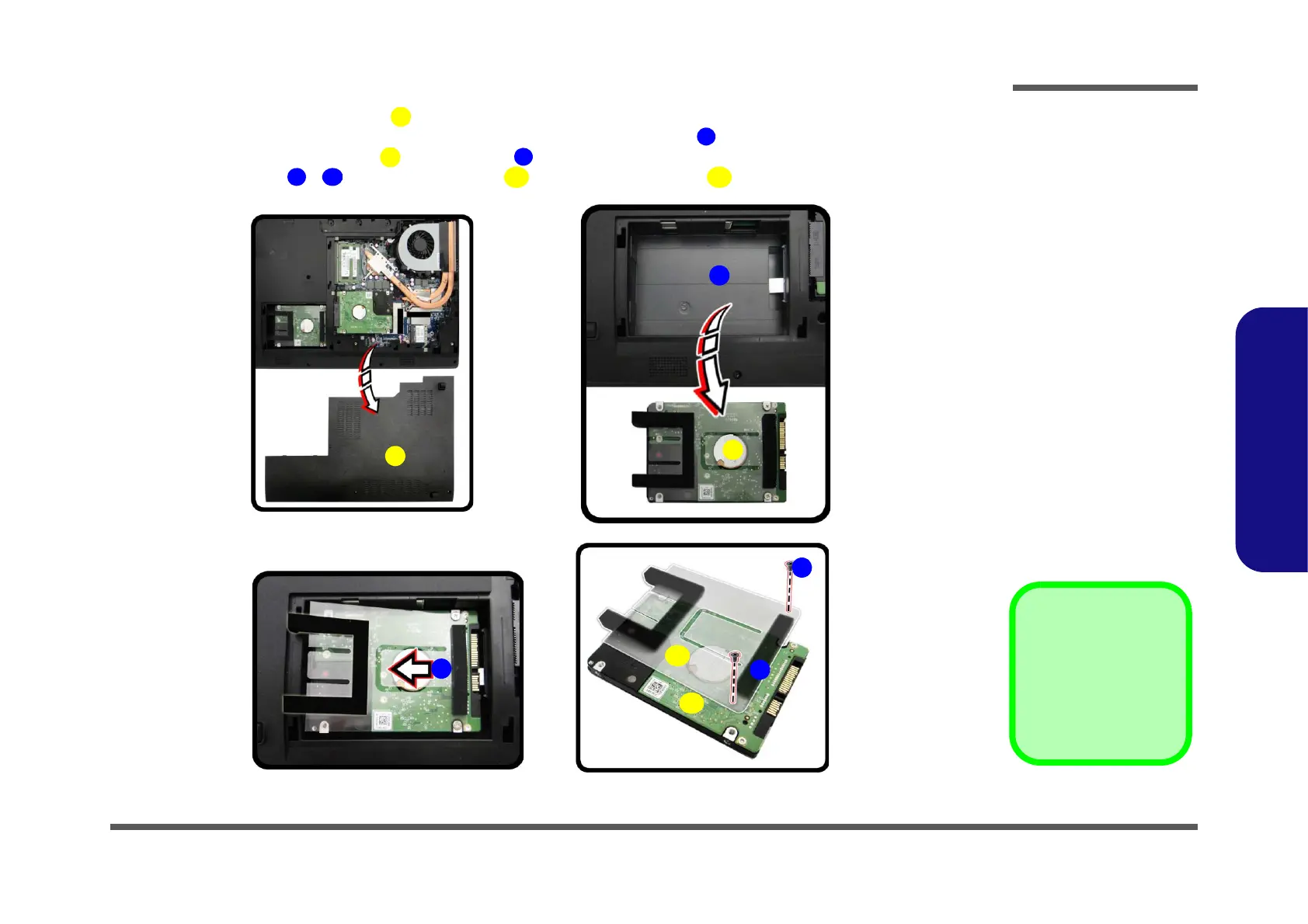

4. Remove the hard disk bay cover (Figure 5c).
5. Grip the tab and slide the 1st hard disk assembly in the direction of arrow (Figure 5d).
6. Lift the 1st hard disk assembly out of the bay (Figure 5e).
7. Remove the screw - and the mylar cover from the 1st hard disk
(Figure 5f).
6
3
4
6
5
6
7
8
9
10
4
c.
d.
6
e.
3
f.
9
8
7
10
5

3. HDD Bay Cover
5. HDD Assembly
9. Mylar Cover
10. HDD 1
•2 Screws
Figure 5
HDD Assembly
Removal (cont’d.)
c. Remove the HDD bay
cover.
d. Grip the tab and slide the
HDD assembly in the di-
rection of the arrow.
e. Lift the HDD assembly
out of the bay.
f. Remove the screws and
mylar cover.
