Clevo W150ERQ User Manual

Disassembly
Removing the Mainboard 2 - 19
2.Disassembly
5. Remove screws - and disconnect the connectors from the mainboard.
6. Separate the mainboard from the bottom case by lift the mainboard in the direction of the arrow .
7. Remove the mainboard (Figure 15c).
12
15
16
17
13
16
d.
f.
16
13
13
16
14
15
17
e.
12

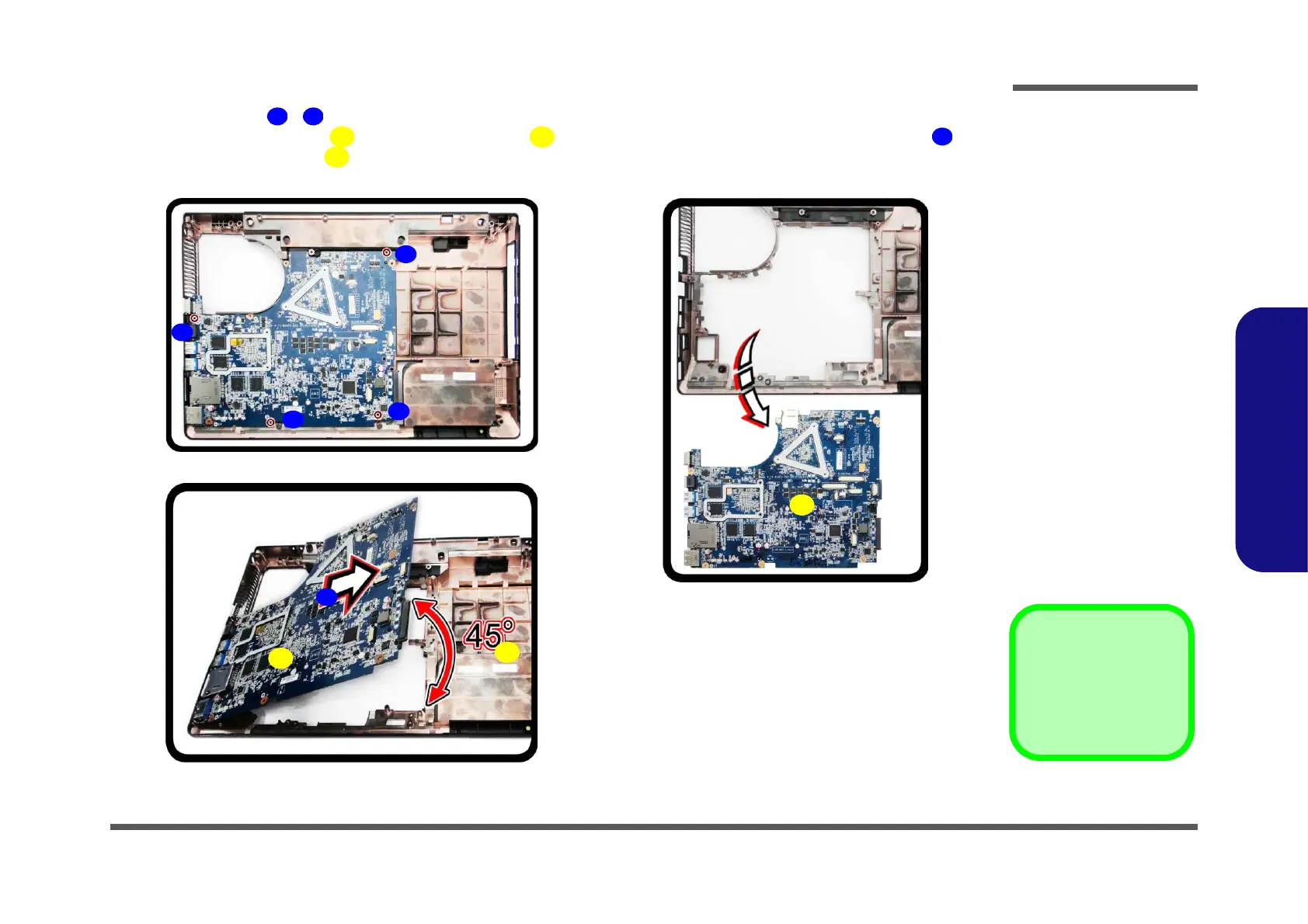

Figure 15
Mainboard Removal
(cont’d.)
d. Remove the screws (dis-
connect the connectors).
e. Separate the mainboard
from the bottom case.
f. Remove the mainboard.

16. Mainboard
17. Bottom Case
•4 Screws

Clevo W150ERQ Specifications

General

Brand	Clevo
Model	W150ERQ
Category	Laptop
Language	English
