Disassembly
Removing and Installing the Hard Disk Drive 2 - 7
2.Disassembly
5. Raise the plastic tab .
6. Slide the hard disk assembly in the direction of arrow (Figure 3d).
7. Remove the HDD assembly from the bay.
8. Remove the screws & and the adhesive cover from the hard disk
(Figure 3f).
9. Reverse the process to install a new hard disk drive.
10. Replace the hard disk bay cover and screws.
5
6
6
7
8
9
10
11
5
6
8
c.
d.
e.
7
f.
10
11
9

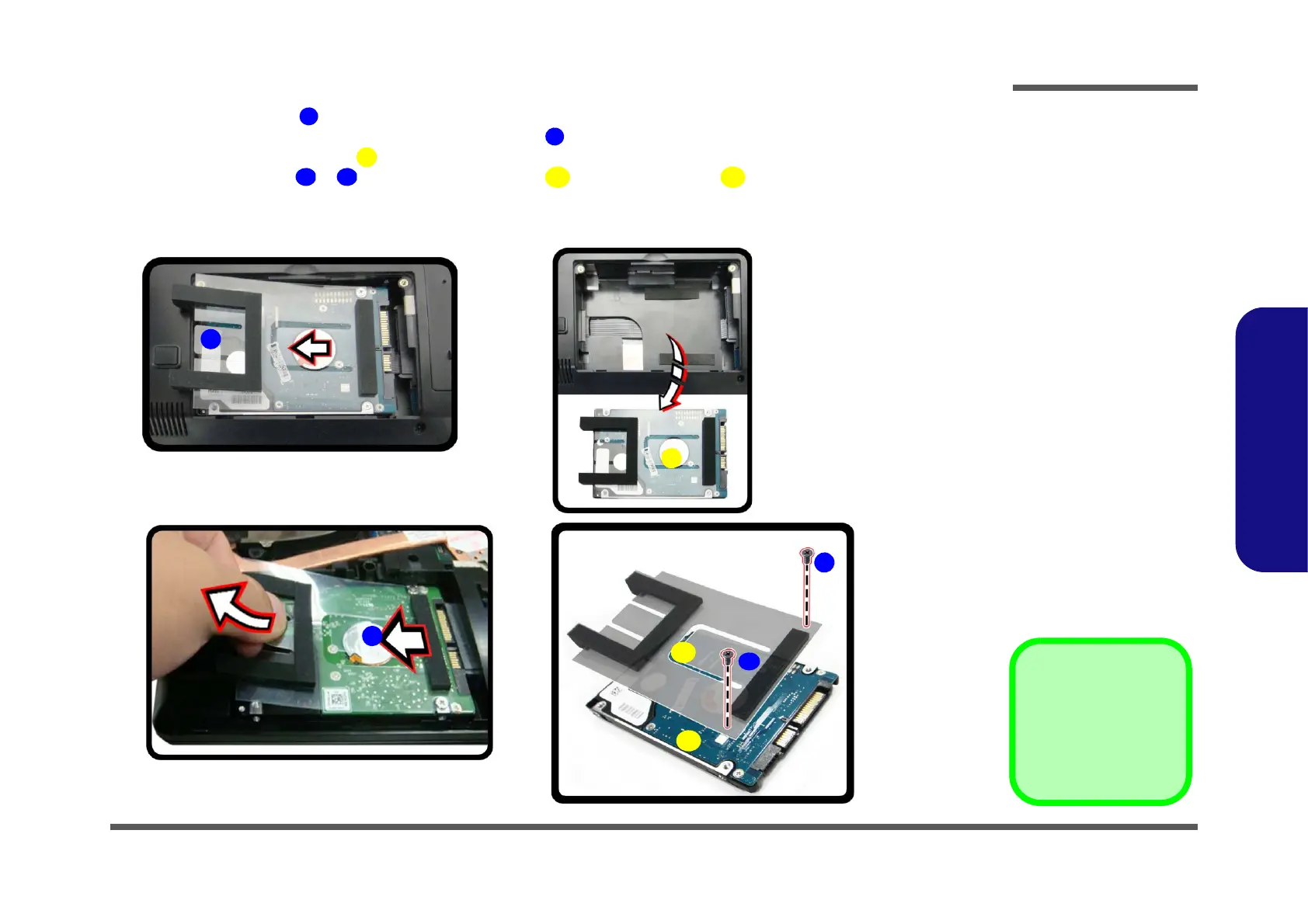

Figure 3
HDD Assembly
Removal (cont’d.)
c. Raise the plastic tab.
d. Grip the tab and slide the
HDD assembly in the di-
rection of the arrow.
e. Lift the HDD assembly
out of the bay.
f. Remove the screws and
mylar cover.

7. HDD Assembly
10. Adhesive Cover
11. HDD
•2 Screws
