Clevo W25CSV series - Speaker Removal

Disassembly
Removing the Speaker 2 - 21
2.Disassembly
Removing the Speaker
Figure 16
Speaker Module
Removal
a. Locate the speaker.
b. Remove the screws.
c. Remove the speaker.
1. Turn off the computer, remove the battery (page 2 - 5), component bay cover (page 2 - 8), keyboard (page 2 - 17)
and mainboard (page 2 - 18).

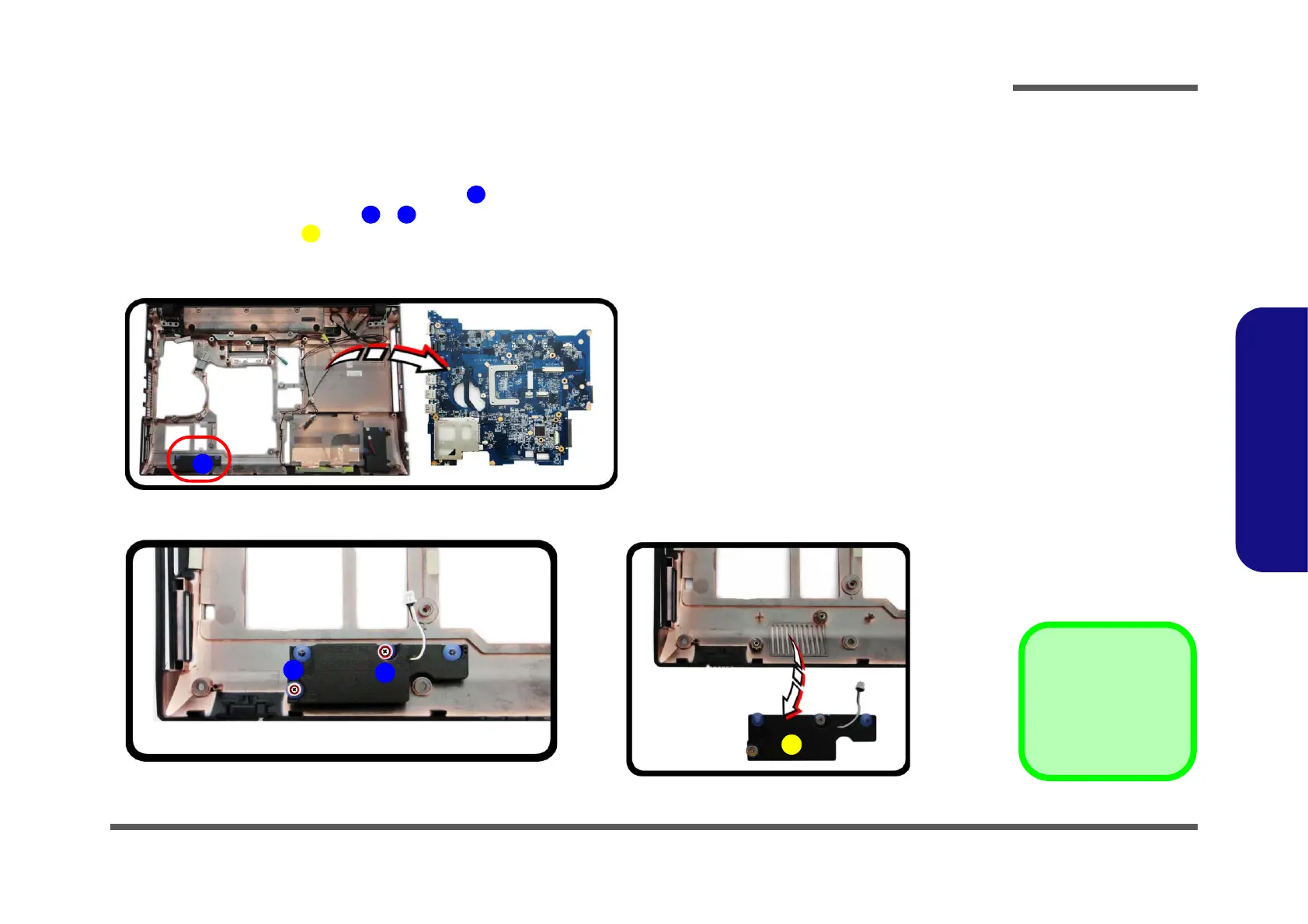

2. The speaker module will be visible at point on the mainboard (Figure 16a).
3. Carefully remove the screws
- (Figure 16b).
4. The speaker module (Figure 16c) can be removed from the bottom case.
1
2
3
4
b.
c.
a.
3
2
4
1

4.Speaker
•2 Screws
