Disassembly
Removing the System Memory (RAM) 2 - 9
2.Disassembly
4. The RAM modules will be visible at point on the mainboard.
5. Gently pull the two release latches ( & ) on the sides of the memory socket in the direction indicated by the
arrows (Figure 5b).
The RAM module will pop-up (Figure 5c), and you can then remove it.
6. Pull the latches to release the second module if necessary.
7. Insert a new module holding it at about a 30° angle and fit the connectors firmly into the memory slot.
8. The module will only fit one way as defined by its pin alignment. Make sure the module is seated as far into the slot
as it will go. DO NOT FORCE IT; it should fit without much pressure.
9. Press the module in and down towards the mainboard until the slot levers click into place to secure the module.
10. Replace the component bay cover
(see page 2 - 6).
11. Restart the computer to allow the BIOS to register the new memory configuration as it starts up.

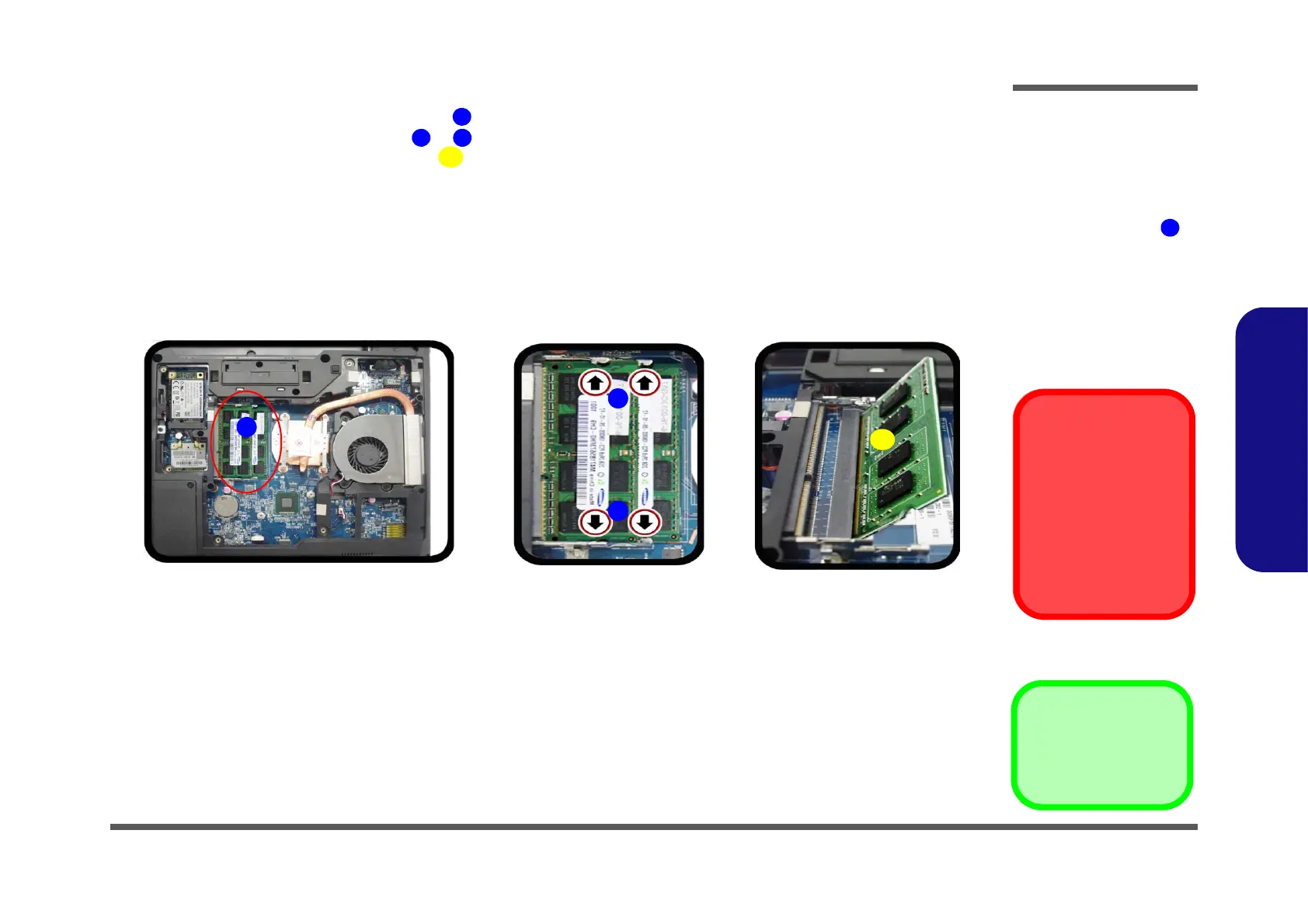

Figure 5
RAM Module
Removal (cont’d)
c. The RAM modules will
be visible at point
on the mainboard.
d. Pull the release lat-
ches.
e. Remove the module.
Contact Warning
Be careful not to touch
the metal pins on the
module’s connecting
edge. Even the cleanest
hands have oils which
can attract particles, and
degrade the module’s
performance.
To Next Page
