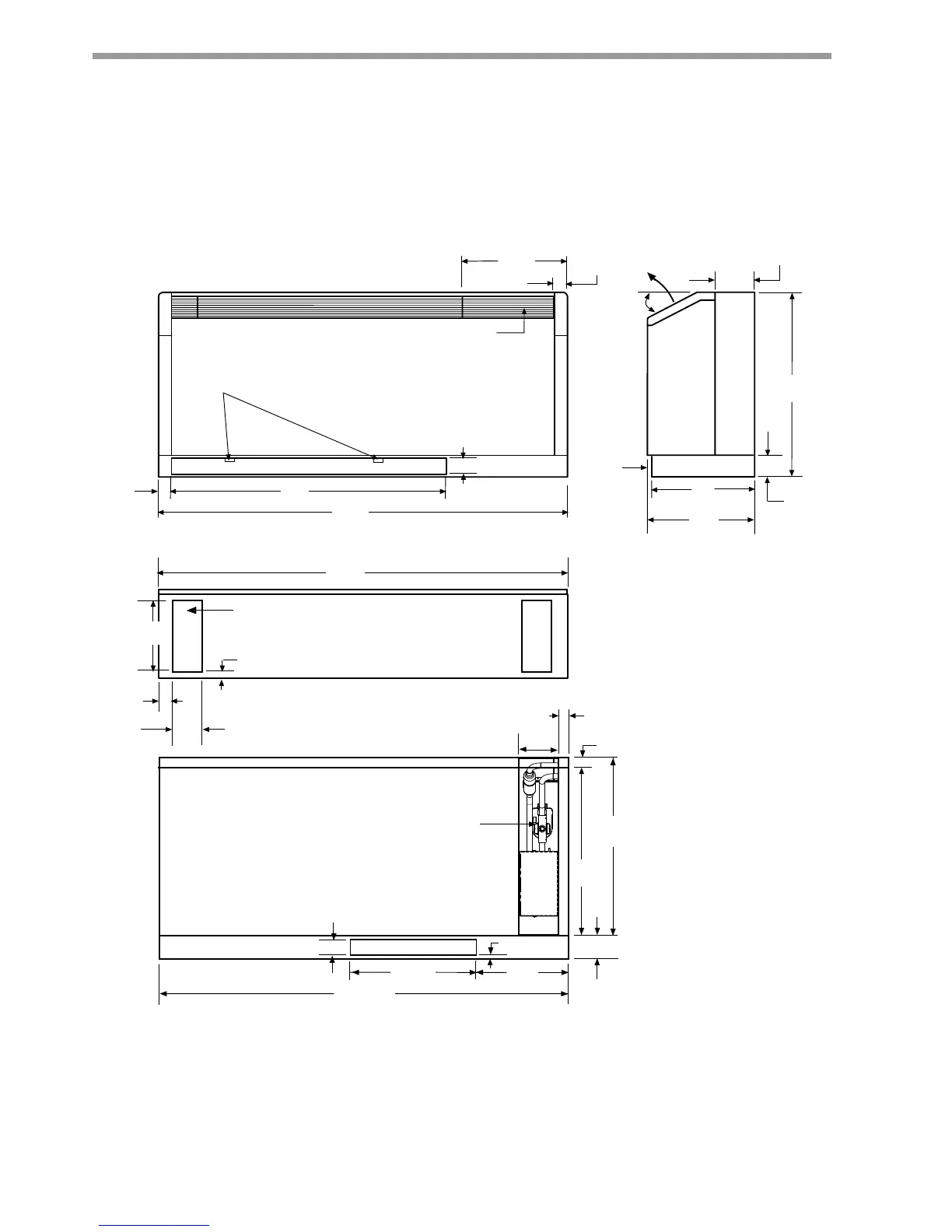

ClimateMaster Console CCE Series - Physical Dimensions

C l i m a t e M a s t e r Wa t e r-S o u r c e H e a t i n g a n d C o o l i n g S y s t e m s
C L I M A T E M A S T E R W A T E R - S O U R C E H E A T P U M P S
C o n s o l e s
R e v. : 0 8 / 1 3 / 1 0
14
30º
292
*74
88.9
607
DAMPER OPENING*
1219
41
298 251
15
533
*74
REAR VIEW
Air
Inlet
Discharge
Air
305
BOTTOM VIEW
320
FRONT VIEW
Control Access Door
AIR INLET AREA
1219
851
44.5
Left Hand Bottom Return
1219
Notes:
All Dimensions are in mm
* Dimension with 76.2 mm subbase. Add 50.8 mm to dimension shown for 5” subbase .
38
48
40
89
19
L.H. Pipe &
Electric Area
254
REAR
ACCESS
25
25
114
508
SIDE
VIEW
Filter located inside and at
top of air inlet area. Push
tabs back and down to release
filter for replacement.
Physical Dimensions
