ClimateMaster Console CCE Series - Chassis Dimensions

5
c l i m a t e m a s t e r. c o m
C o n s o l e s
R e v. : 0 8 / 1 3 / 1 0
T H E S M A R T S O L U T I O N F O R E N E R G Y E F F I C I E N C Y

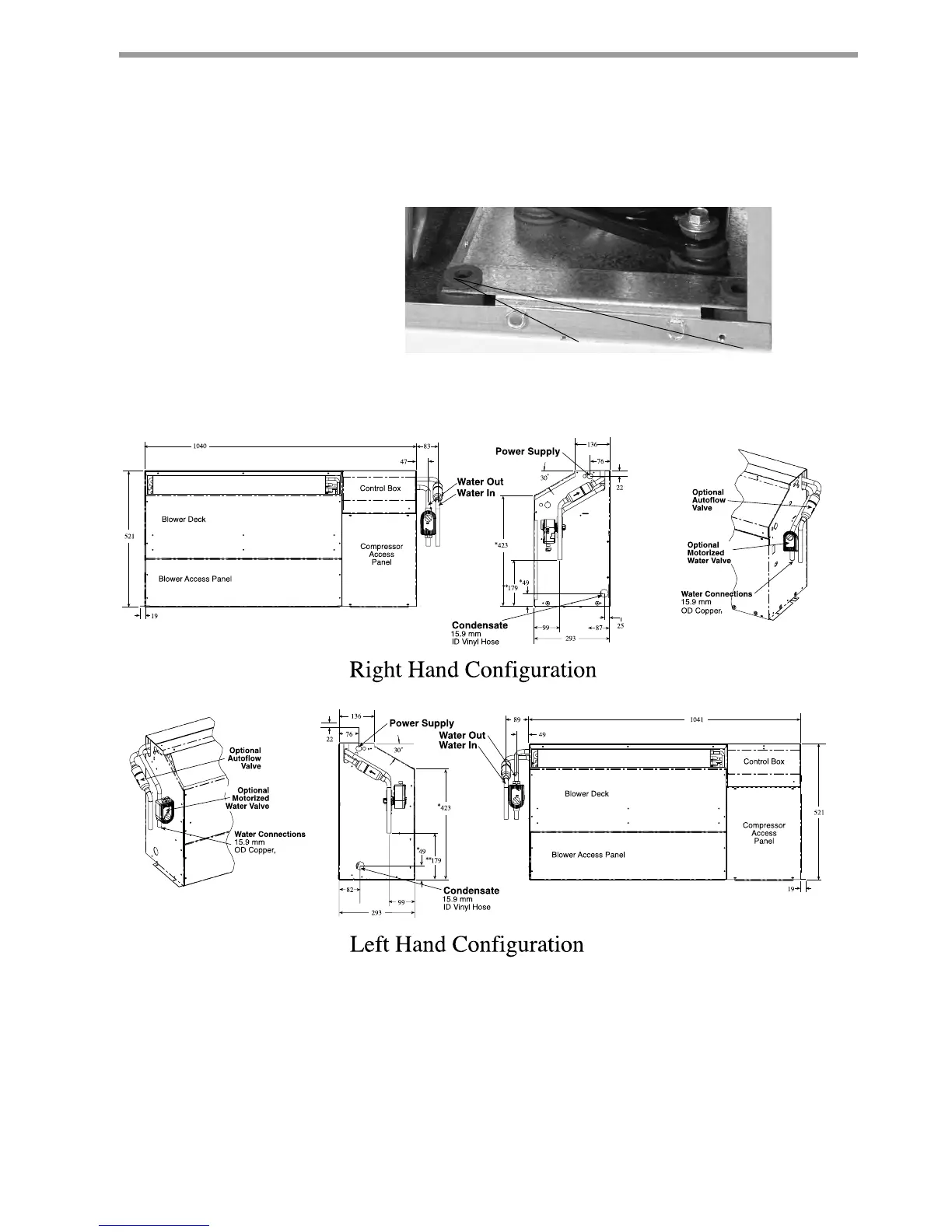

Chassis Dimensions
Figure 1a : Remove 4 shipping
bolts on compressor isolation plate.
(Not all models)
1/2” FPT or
1/2” MPT
1/2” FPT or
1/2” MPT
Notes:
All dimensions are in mm.
*For installed dimension, add to dimension shown 74mm with 3” subbase and 124mm for 5” subbase.
**Dimension reduced by fitting if selected.
Chassis Dimensions
