13
climatemaster.com
THE SMART SOLUTION FOR ENERGY EFFICIENCY
Packaged Units
Rev.: 1/06/09B
Horizontal Installation

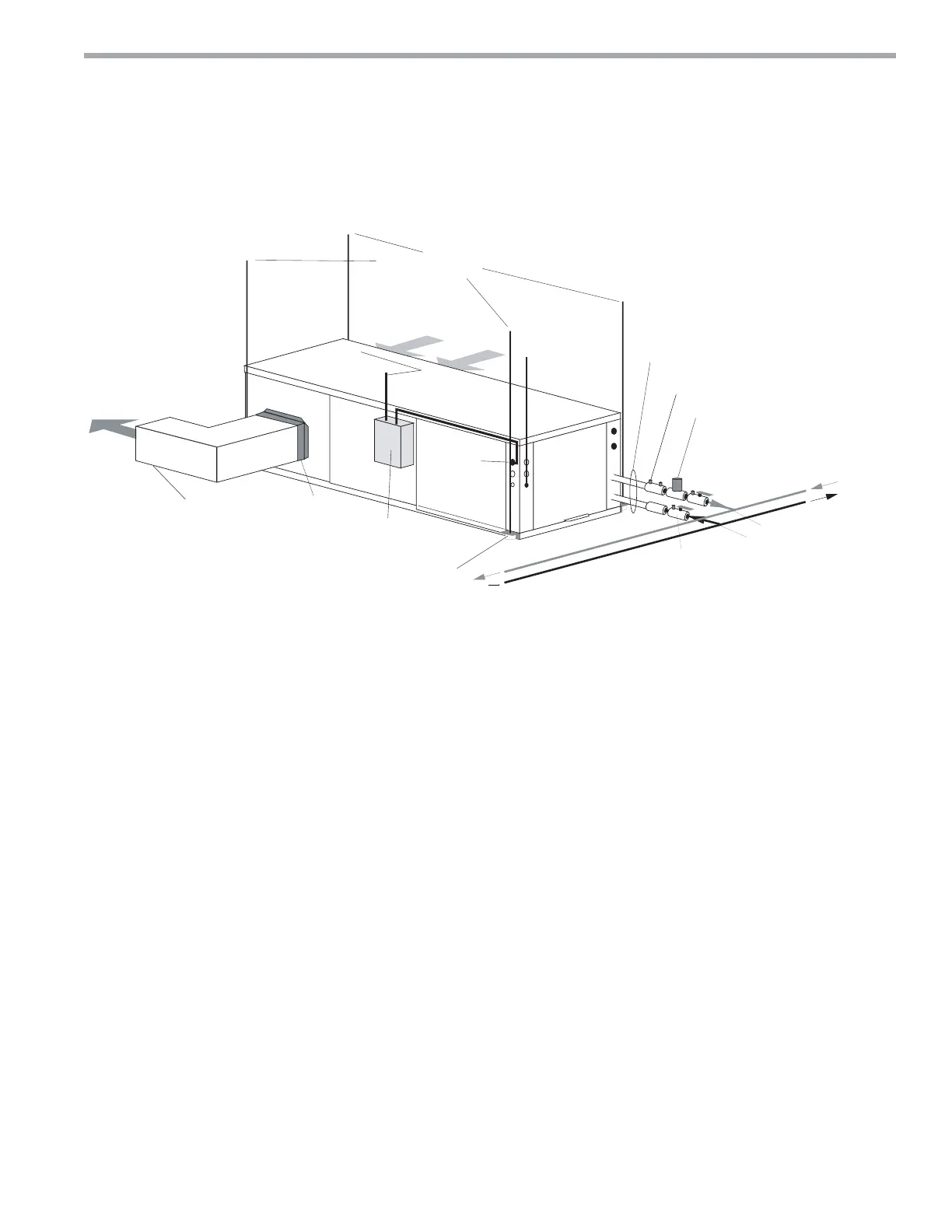

Figure 3: Typical Horizontal Unit Installation
Air Coil
To obtain maximum performance, the air coil should be cleaned
before start-up. A 10% solution of dishwasher detergent and
water is recommended for both sides of the coil. A thorough
water rinse should follow. UV based anti-bacterial systems
may damage e-coated air coils.
NOTICE! Installation Note - Ducted Return: Many horizontal
WSHPs are installed in a return air ceiling plenum application
(above ceiling). Vertical WSHPs are commonly installed in
a mechanical room with free return (e.g. louvered door).
Therefore, fi lter rails are the industry standard and are included
on ClimateMaster commercial heat pumps for the purposes of
holding the fi lter only. For ducted return applications, the fi lter rail
must be removed and replaced with a duct fl ange or fi lter rack.
Canvas or fl exible connectors should also be used to minimize
vibration between the unit and ductwork.
(by others)
(by others)
Thermostat
Wiring
Optional Balancing Valve
Water In
Water Out
Optional Low Pressure Drop Water
Control Valve
(can be internally mounted
on some models)
Ball Valve with optional
integral P/T plug
Stainless steel braid hose
with integral "J" swivel
Building
Loop
Unit Power
Disconnect
Power Wiring
Insulated supply duct with
at least one 90 deg elbow
to reduce air noise
Return Air
Supply Air
Unit Hanger
3/8" [10mm] threaded rods
Unit Power
Flexible Duct
Connector
