Ground-Loop Heat Pump Applications

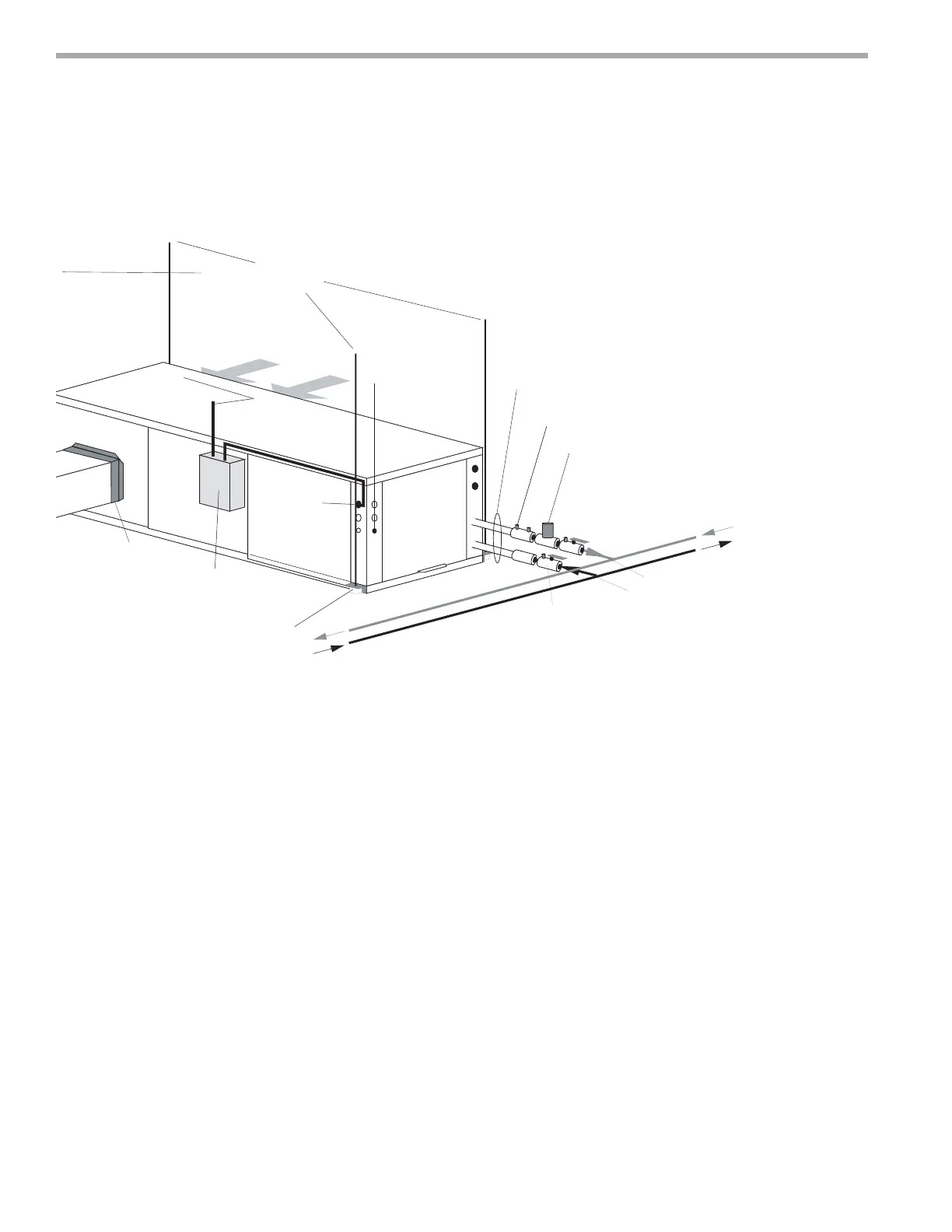

Figure 13: Typical Ground-Loop Application
(by others)
(by others)
Thermostat
Wiring
Optional Balancing Valve
Water In
Water Out
Optional Low Pressure Drop Water
Control Valve
(can be internally mounted
on some models)
Ball Valve with optional
integral P/T plug
Stainless steel braid hose
with integral "J" swivel
Building
Loop
Unit Power
Disconnect
Power Wiring
Return Air
Unit Hanger
3/8" [10mm] threaded rods
Unit Power
Flexible Duct
Connector
To Next Page
