Troubleshooting Guide - Tranquility
®
Digital (DXM2) Packaged Units
Rev.: 01/15/14

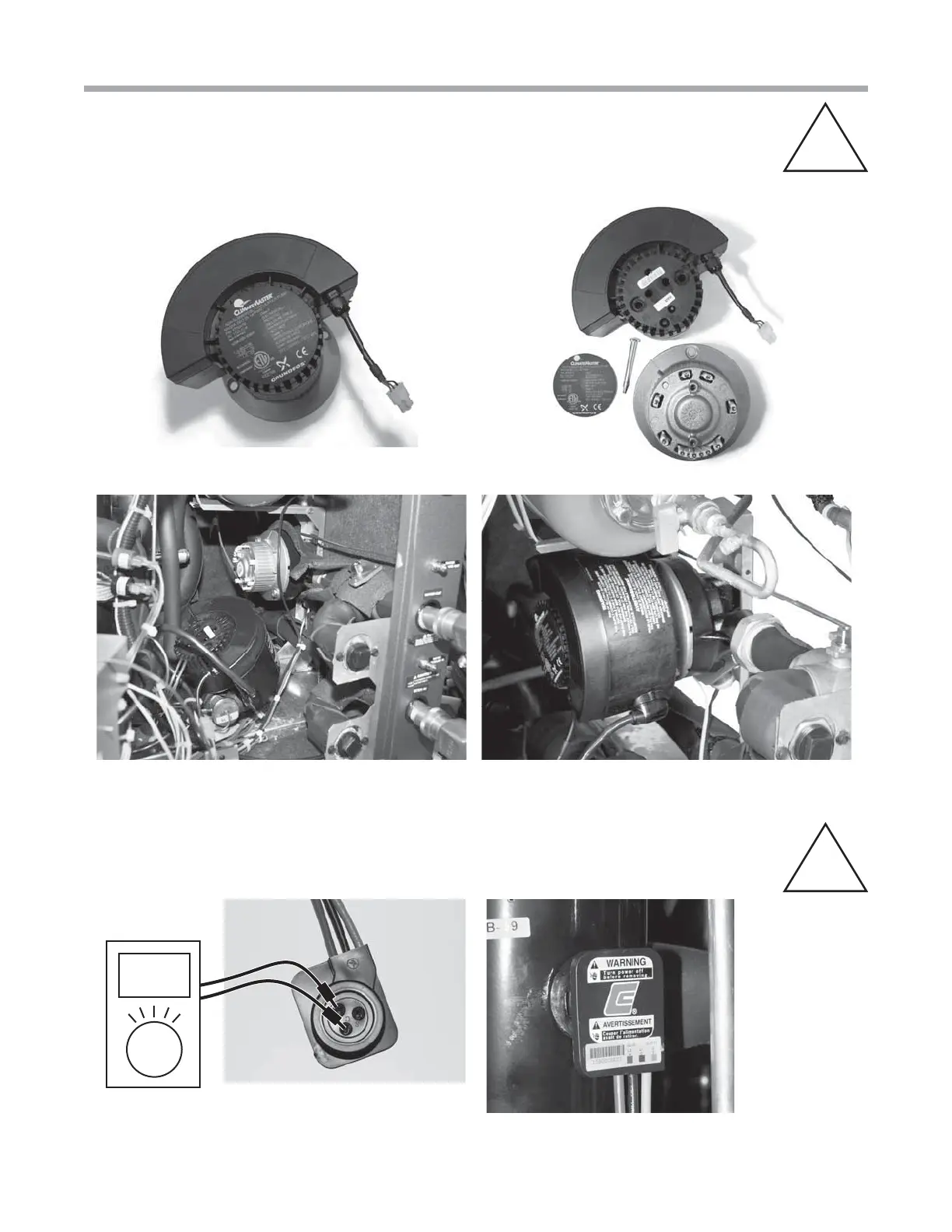

Replacing Variable-Speed Pump Power Head
1) You can remove power head from motor with # 25 Torx driver if feedback is out of range.
2) Remove plastic cover to remove Torx head screws.
Comp verify voltage
208-240V
Verifying Power at Molded Plug For Compressor
A-P
A-P
A-Q
A-Q
