ClimateMaster Tranquility Digital - Blower Voltage and Modulating Valve Configuration; Checking Blower Line Voltage; Modulating Valve Configuration Fix

Troubleshooting Guide - Tranquility
®
Digital (DXM2) Packaged Units
Rev.: 01/15/14
44
Geothermal Heat Pump Systems

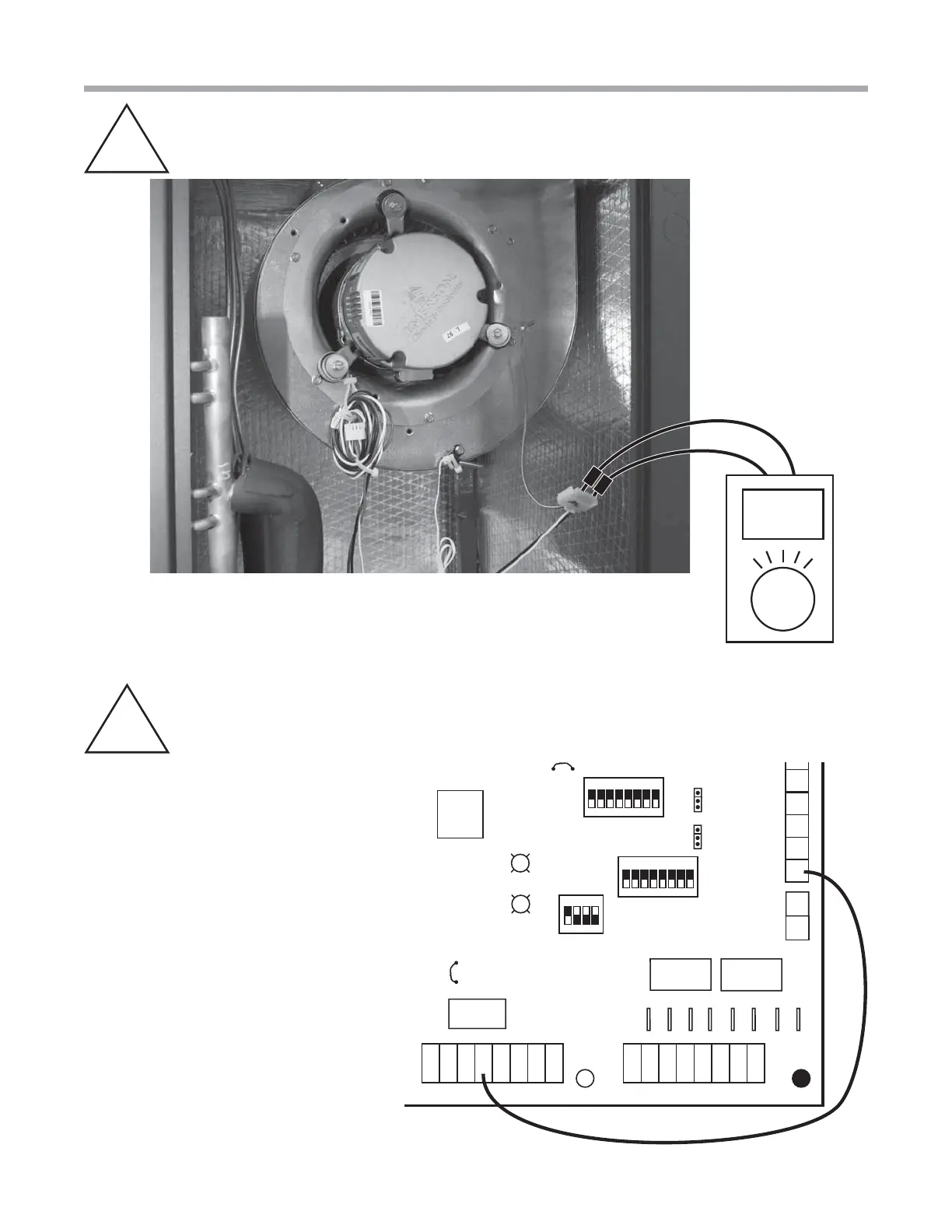

Checking Blower Line Voltage
B-I
B-I
For a Modulating Valve that
Loses Configuration on Thermostat
B-J
B-J
In order to have your thermostat acknowledge
that the unit has a modulating valve instead
of incorrectly showing a variable-speed pump,
connect a piece of thermostat wire between C and
T1 so the DXM2 board does not see feedback.
