ClimateMaster Tranquility Series - Page 13

13
Tranquility
®
Digital Air Handler (TAH)
Rev.: 11 Feb., 2013
Installation

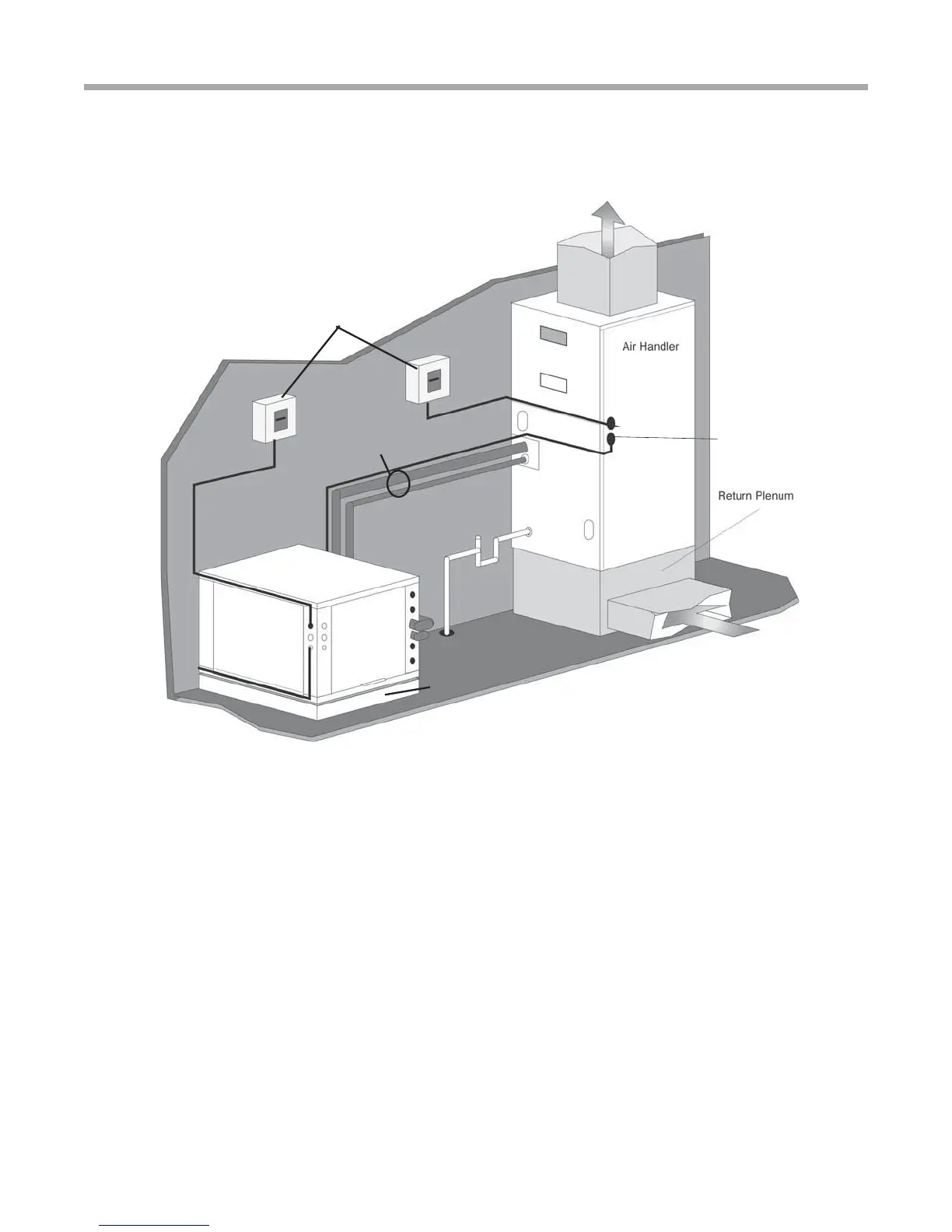

Figure 5: Typical Split/Air Handler Installation
Compressor Section
Low Voltage
Insulated
Linesets
Air pad or Extruded
polystryene
PVC Condensate
with vented trap
Power
Disconnects
