Installation in a sliding sash window

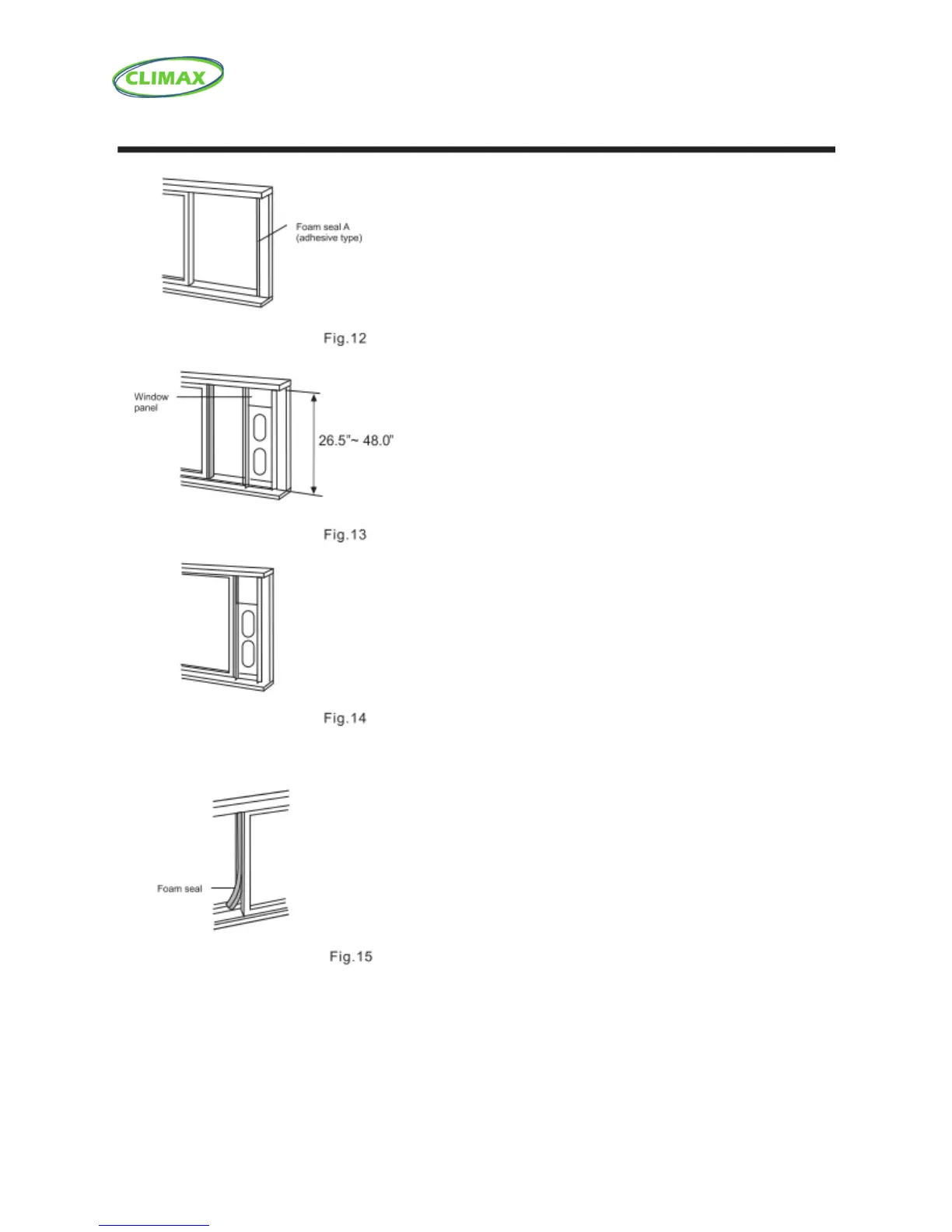

1. Cut the foam seal (adhesive type) to the proper length and
attach it to the window frame. See Fig.12.
2. Attach the window slider kit to the window sill. Adjust the
length of the window slider kit according to the width of
window, shorten the adjustable window kit if the width of
window is less than 26.5 inches.
Open the window sash and place the window slider kit on
the window sill. See Fig.13.
3. Cut the foam seal (adhesive type) to the proper length,
and attach it on the top of the window. As shown as in Fig.14.
4. Close the sliding sash securely against the window.
5. Cut the foam seal to an appropriate length and seal the
open gap between the top window sash and outer window
sash. Shown as in Fig.15.
NOTE: All the illustrations in this manual are for explanation
purpose only. Your unit may be slightly different. The
actual shape shall prevail.
