Model HF-15B High Frequency Spark Tester
HF-15B Instruction Manual – Page 31

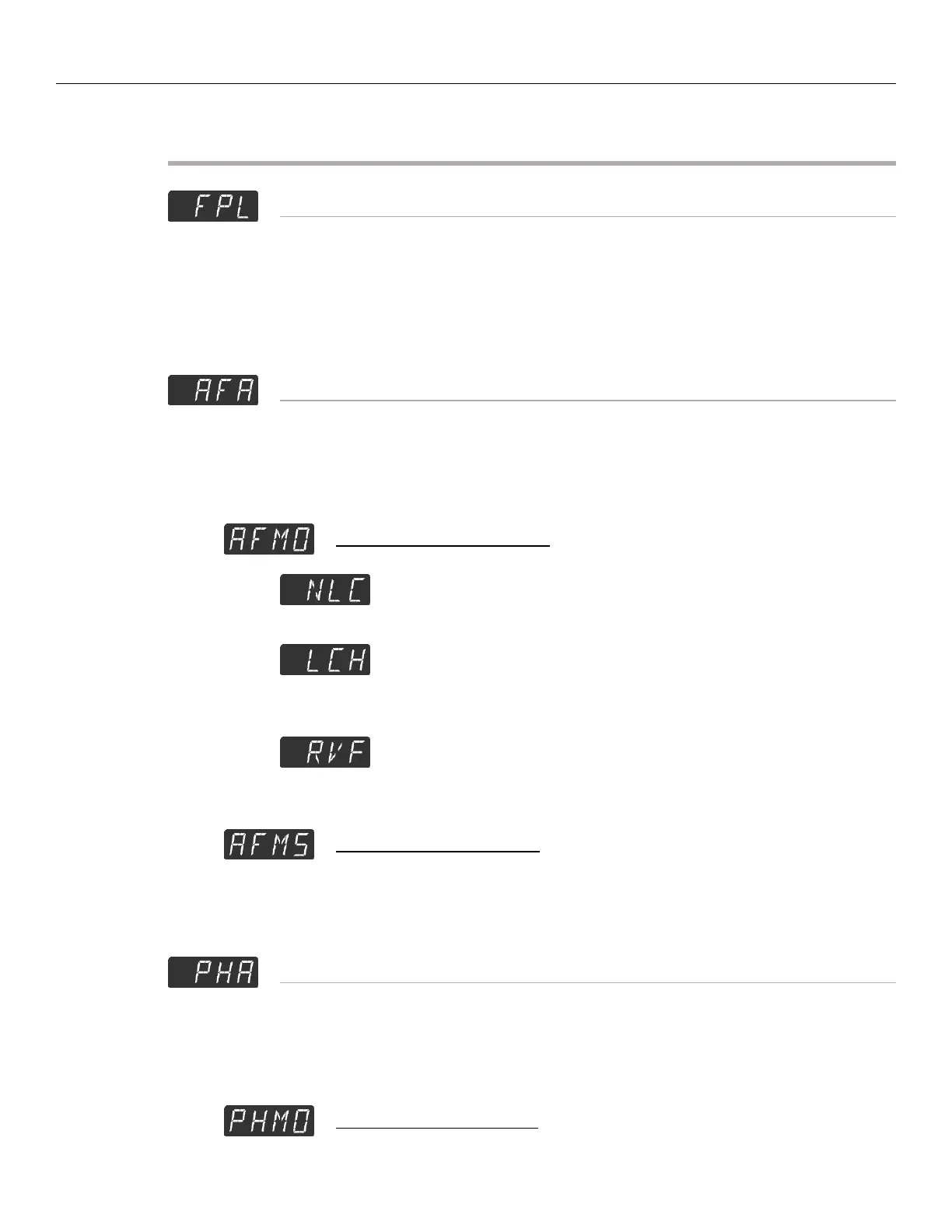

Fault Output Options
Fault Pulse (FPL)
This output will change state when a fault occurs. See the “Definition of Terms”
section of the manual for more information.
When fault pulse times are shorter than 50mS, timings may not be exact when
using relay type outputs.
Any Fault Alarm (AFA)
This output will operate in 3 different modes, “NLC”,”LCH”,”RVF”. The Any Fault
alarm is triggered by any high voltage fault that occurs. See the “Definition of
Terms” section of the manual for more information.
Any Fault Alarm Mode (AFMO)
– Non Latch Mode
The output will change state for the configured “AFMS” time.
– Latch Mode
The output will change state until it is reset at the front panel or
remotely.
– Remove Voltage on Fault
The output will change state and the test voltage will be
disabled until it is reset at the front panel or remotely.
Any Fault Alarm Time (AFMS)
Set in seconds (.01 – 5.0). If “AFMO” is set to “NLC”, this is the time for
which the output will change state.
Pinhole Alarm (PHA)
This output will operate in 2 different modes, “NLC”,”LCH”. The Pinhole alarm
will respond only to a ‘Pinhole’ fault type. See the “New Features” section of
the manual for more information on fault typing.
Pinhole Alarm Mode (PHMO)
