Model HF-15B High Frequency Spark Tester
HF-15B Instruction Manual – Page 32

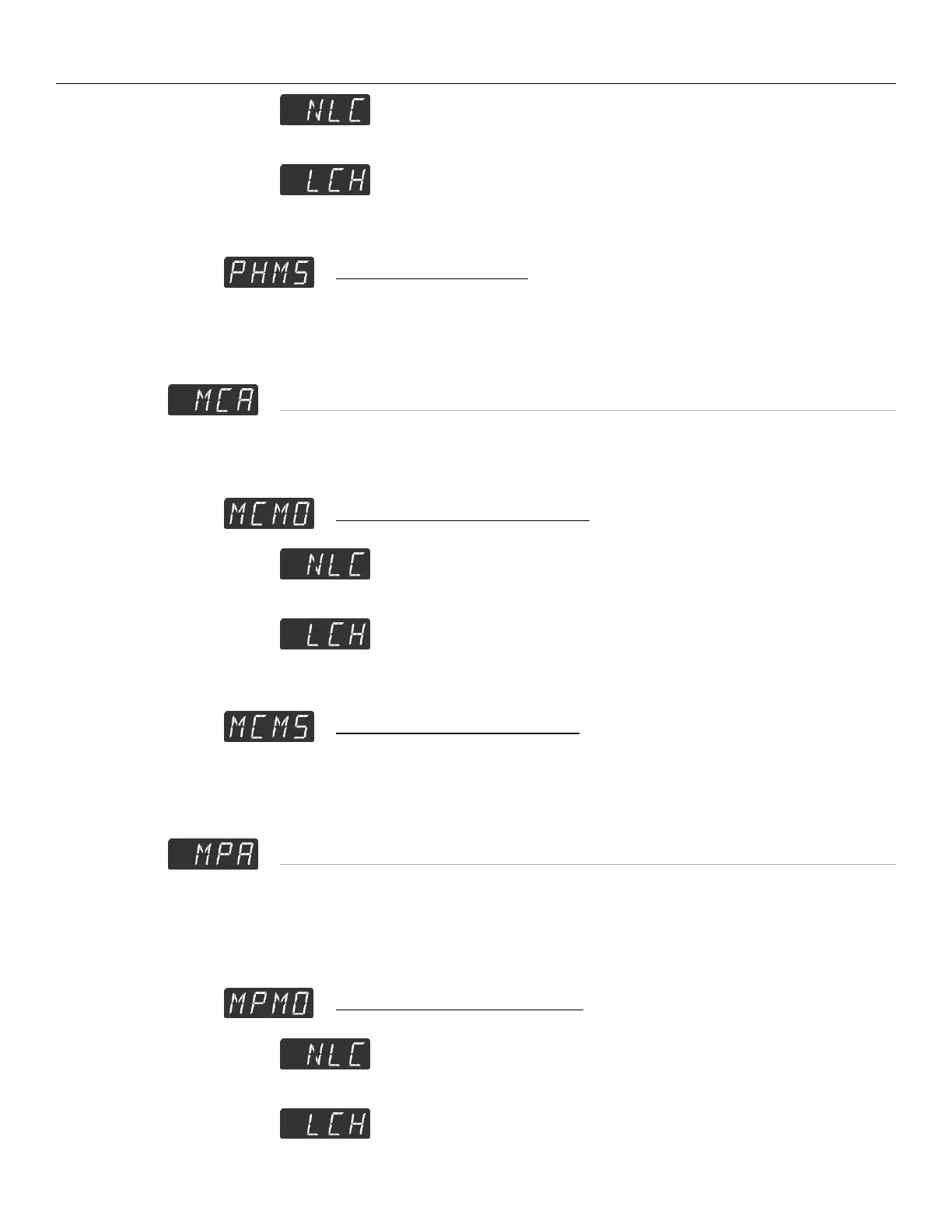

– Non Latch Mode
The output will change state for the configured “PHMS” time.
– Latch Mode
The output will change state until it is reset at the front panel or
remotely.
Pinhole Alarm Time (PHMS)
Set in seconds (.01 – 5.0). If “PHMO” is set to “NLC”, this is the time for
which the output will change state.
Metal Contact Alarm (MCA)
This output will operate in 2 different modes, “NLC”,”LCH”. The Metal Contact
alarm will respond only to a ‘direct metal contact’ fault type. See the “Fault
Typing” section of the manual for more information.
Metal Contact Alarm Mode (MCMO)
– Non Latch Mode
The output will change state for the configured “MCMS” time.
– Latch Mode
The output will change state until it is reset at the front panel or
remotely.
Metal Contact Alarm Time (MCMS)
Set in seconds (.01 – 5.0). If “MCMO” is set to “NLC”, this is the time for
which the output will change state.
Multi Pinhole Alarm (MPA)
This output will operate in 2 different modes, “NLC”,”LCH”. The Multi Pinhole
alarm will respond only to a ‘Multi Pinhole’ fault type. See the “Fault Typing”
section of the manual for more information.
Multi Pinhole Alarm Mode (MPMO)
– Non Latch Mode
The output will change state for the configured “MPMS” time.
– Latch Mode
