The output will change state until it is reset at the front panel or
remotely.

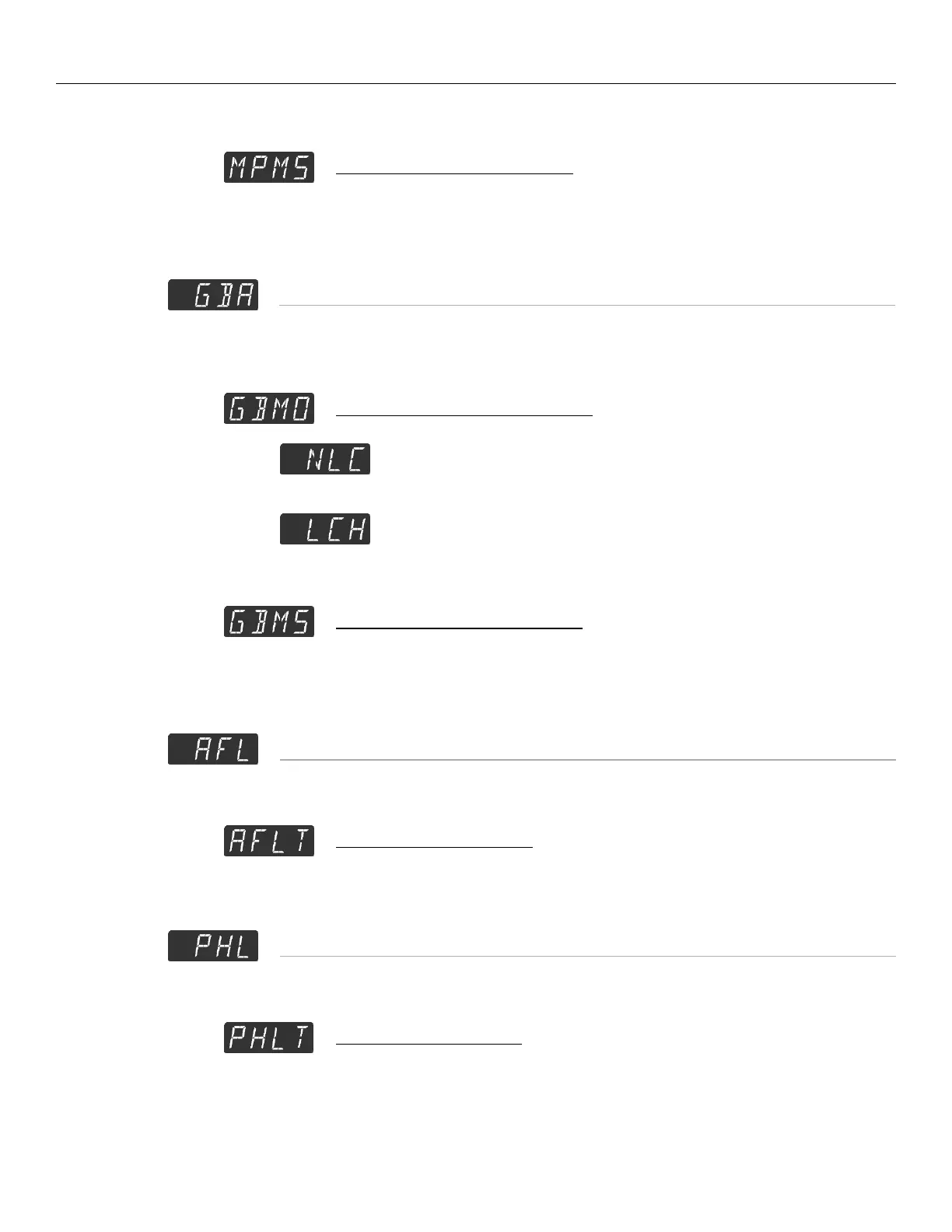

Multi Pinhole Alarm Time (MPMS)
Set in seconds (.01 – 5.0). If “MPMO” is set to “NLC”, this is the time for
which the output will change state.
Gross Barewire Alarm (GBA)
This output will operate in 2 different modes, “NLC”,”LCH”. The Gross Barewire
alarm will respond only to a ‘Gross Barewire’ fault type. See the “Fault Typing”
section of the manual for more information.
Gross Barewire Alarm Mode (GBMO)
– Non Latch Mode
The output will change state for the configured “GBMS” time.
– Latch Mode
The output will change state until it is reset at the front panel or
remotely.
Gross Barewire Alarm Time (GBMS)
Set in seconds (.01 – 5.0). If “GBMO” is set to “NLC”, this is the time for
which the output will change state.
Any Fault Limit (AFL)
This output will change state when the “Any Fault” Count is equal to or greater
than the configured “AFLT”.
Any Fault Count Limit (AFLT)
Amount of counts allowed before the output responds.
Pinhole Limit (PHL)
This output will change state when the “Pinhole” count is equal to or greater
than the configured “PHLT”.
Pinhole Count Limit (PHLT)
Amount of counts allowed before the output responds.
