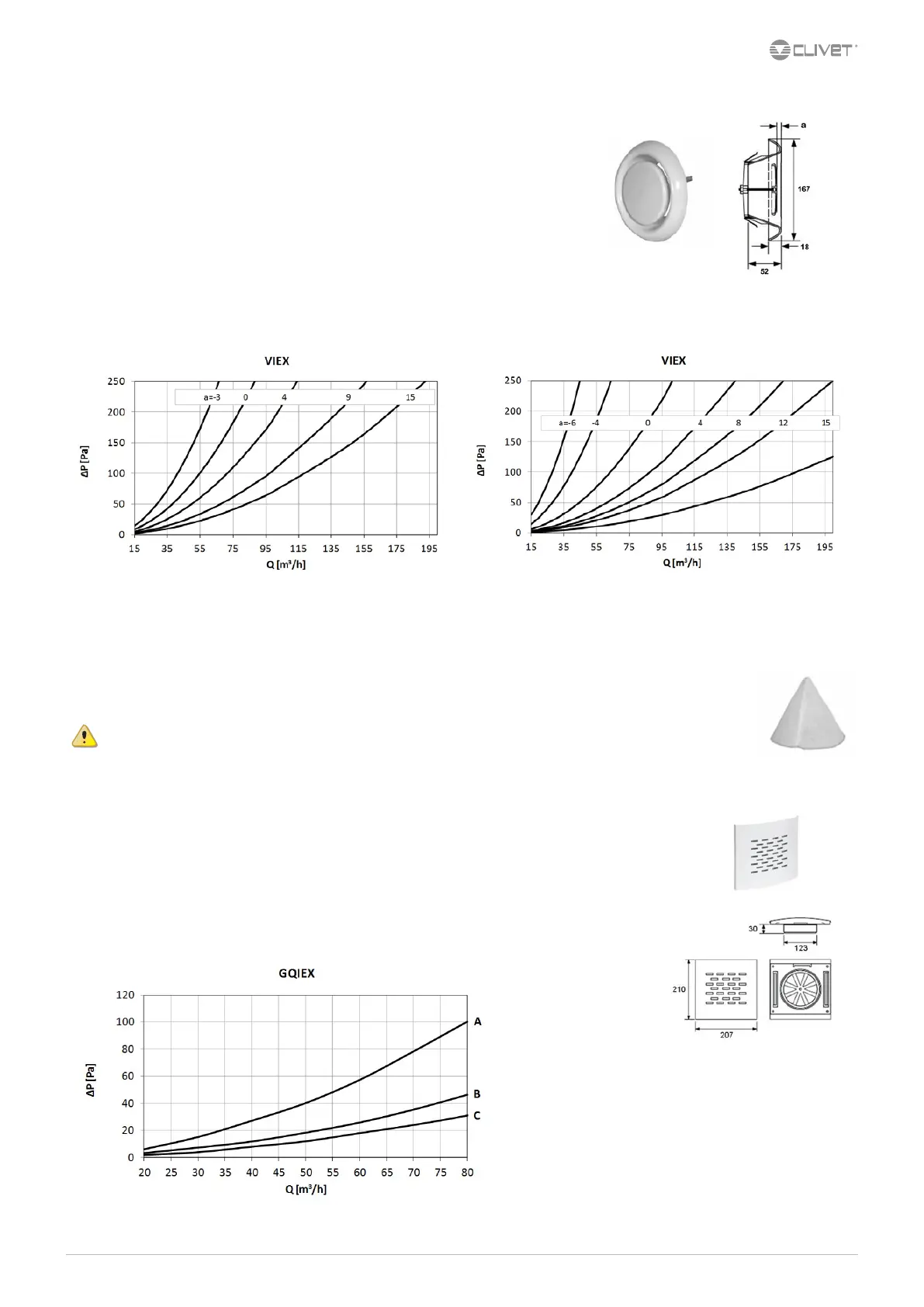

VIEX - Extraction/intake valve DN125
Valve for wall or ceiling installation.
It is possible to adjust the airow through the central disc.
PP white plastic material.
It is coupled to the following adapters:
A90DTX: 90-degree adaptor, double DN90 round tube for DN125 valve + cap. Max air ow of 120
m³/h
A90MPX: 90-degree adaptor, single tube for DN125 valve. Max air ow of 50 m³/h
A90DPX: 90-degree adaptor, double at tube for DN125 valve. Max air ow of 100 m³/h
ADMPX: straight adaptor, single at tube for DN125 valve. Max air ow of 50 m³/h
Air supply Extraction of stale air
Dp = pressure drop
Q = Air ow
FT125X - Filter for DN125 valve (5 pcs.)
Conical lter to be housed inside the opening.
For installation, simply remove its internal plate and reposition it once it is inserted on the central internal threaded screw.
Provided in boxes of 5 pieces.
GQIEX - Extraction/intake squared grill of DN125 joint with air lter
Supply and/or return grille in steel for wall or ceiling installation supplied with a removable and washable metal
lter and control dampers.
It is coupled to the following adapters:
A90DTX: 90-degree adaptor, double DN90 round tube for DN125 valve + cap. Max air ow of 120 m³/h
A90MPX: 90-degree adaptor, single tube for DN125 valve. Max air ow of 50 m³/h
A90DPX: 90-degree adaptor, double at tube for DN125 valve. Max air ow of 100 m³/h
ADMPX: straight adaptor, single at tube for DN125 valve. Max air ow of 50 m³/h
A with lter
damper 50% open
B with lter
damper 100% open
C without lter
damper 100% open
Dp = pressure drop
Q = Air ow
