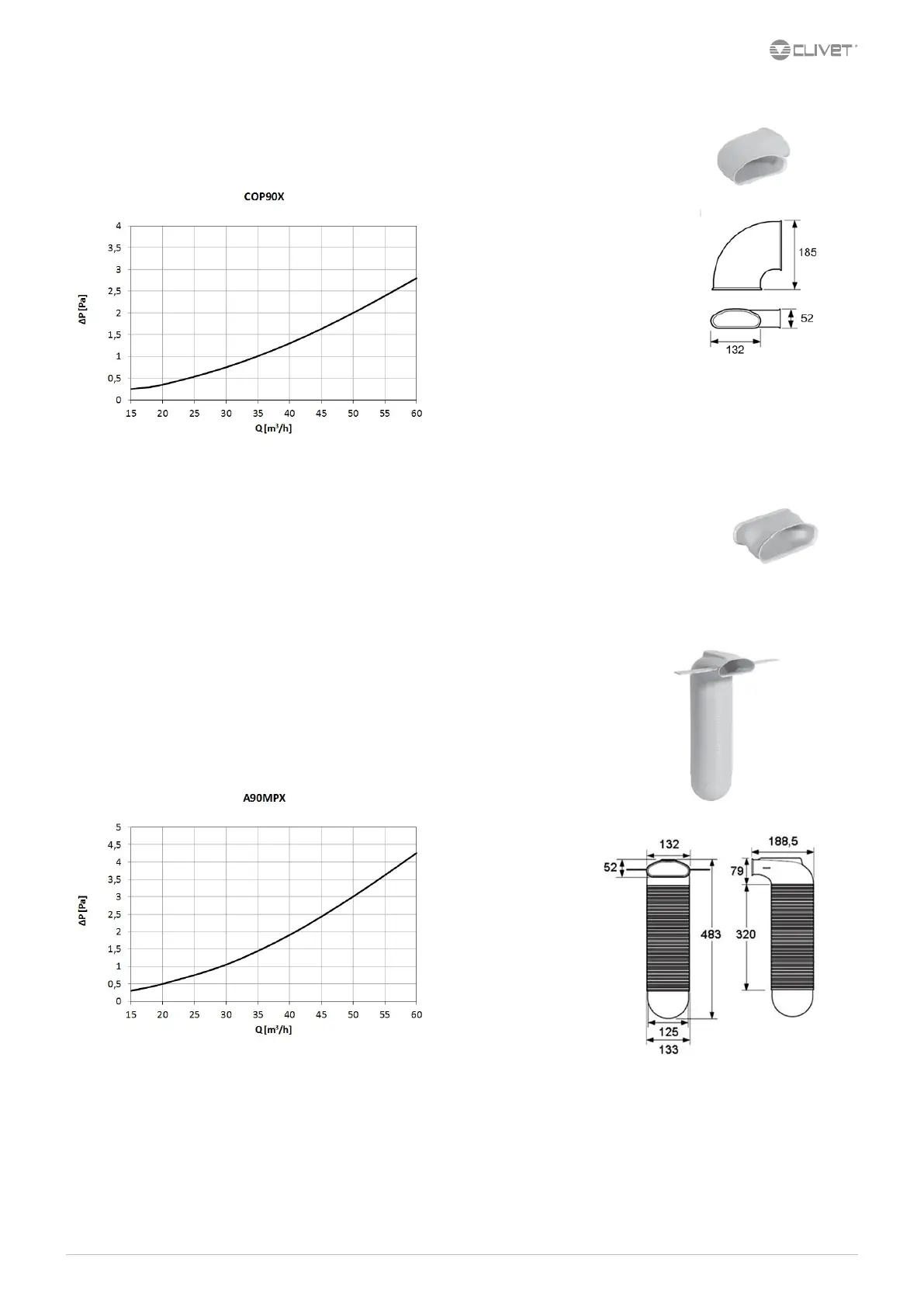

COP90X - Horizontal 90-degree curve for at tube
Flexible at tubes can be bent horizontally with a minimum radius of curvature of 300mm.
If the bend must have a smaller radius, 90° stamped horizontal elbows can be used.
CTP180X - Joint for rotating the at tube through 180°
Thanks to this special joint, at exible tubes can be rotated through 180° on the horizontal axis.
The exible pipe connection with rotational joint takes place exclusively through the use of a special joint for at exible
tubes with double seal ring.
A90MPX - 90-degree adaptor, single tube for DN125 valve
Allows for connecting the air intake and extraction valves to the air distribution system with a at
tube.
It is equipped with one air inlet guaranteeing a maximum airow rate of 50m³/h.
If required, the cylindrical body can be shortened with a cutting tool. The body has a series of
reference marks to make it easier to cut.
The valve adapter is supplied closed and ends with a round cap to be cut, which – during installation
of the distribution system – can function as a closing cap if turned through 180°, so as to prevent
dust and dirt from entering the exible tubes.
Dp = pressure drop
Q = Air ow
*** Joint included for at exible tube with
double sealing ring.
Dp = pressure drop
Q = Air ow
