CLIVET ELFOFresh2 CPAN-U 70-120 Series User Manual

BT15B012GB-00 ELFOFresh² 59

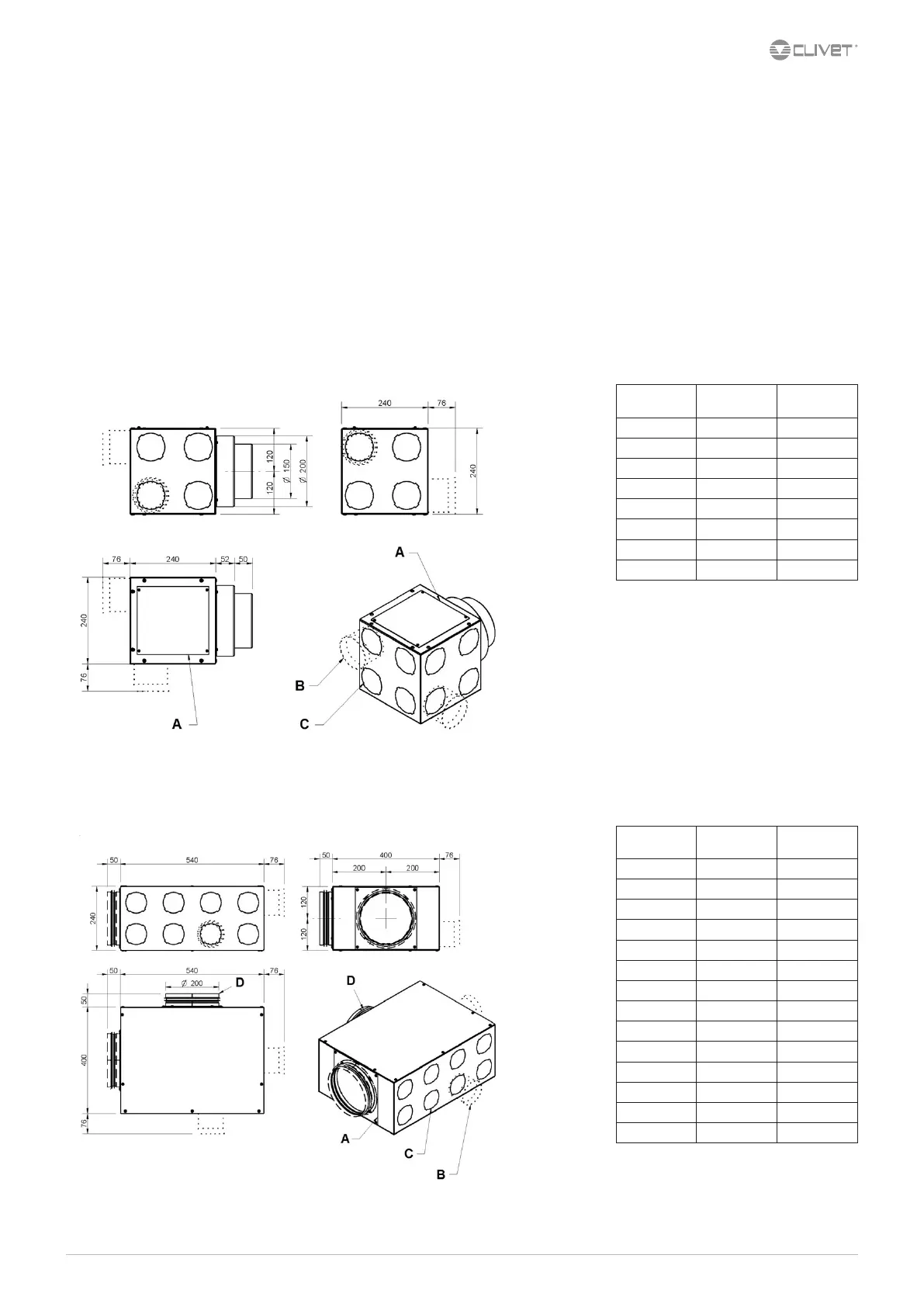

4 - External distribution
BD8CX - 8-output distribution box, DN150-200 joint
BD14CX - 14-output distribution box, DN200 joint
Distribution box that can be used for supply and return.
During installation, thanks to pre-shearing only the necessary holes are used for connecting the exible tubes.
The connection between the box and round tube DN90 is performed by the CBT90X accessory.
The at tube 132x52 is connected using the CBT90X and COBPX accessories.
The box is provided with a removable plate for inspection and cleaning.
Internally, the box is lined with sound-proong material ensuring improved air ow noise levels.
The distribution box is provided with 4 angular brackets for installation.
The box can be installed horizontally or vertically.
8 connections
Number of ducts
Max. air ow
[m³/h]
Pressure drop
[Pa]
1 60 15
2 120 15
3 180 15
4 240 15
5 320 15
6 360 15
7 420 15
8 480 15
14 connections
Number of ducts
Max. air ow
[m³/h]
Pressure drop
[Pa]
1 60 15
2 120 15
3 180 15
4 240 15
5 320 15
6 360 15
7 420 15
8 480 15
9 540 15
10 600 15
11 660 15
12 720 15
13 780 15
14 840 15
A. inspection
B. CBT90X (supplied separately)
C. pre-cut connections
A. inspection
B. CBT90X (supplied separately)
C. pre-cut connections
D. DN200 air tting
