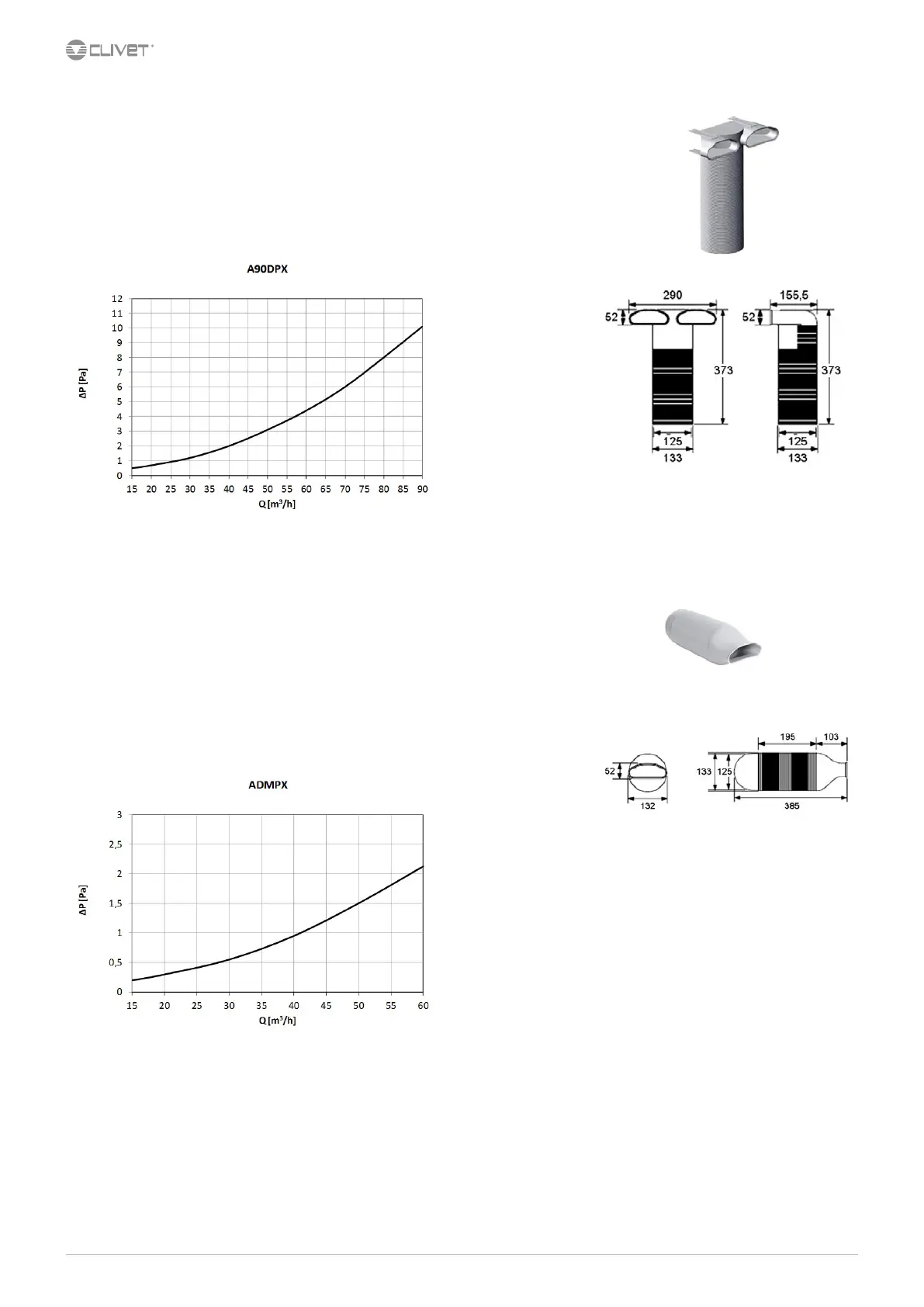

A90DPX - 90-degree adaptor, double at tube for DN125 valve
Allows for connecting the air intake and extraction valves to the air distribution system with a at
tube.
It is equipped with two air intakes guaranteeing a maximum airow rate of 100m³/h.
If required, the cylindrical body can be shortened with a cutting tool. The body has a series of
reference marks to make it easier to cut.
The valve adapter is supplied with a round cap, which – during installation of the distribution
system – can be used to prevent dust and dirt from entering the exible tubes.
Dp = pressure drop
Q = Air ow
ADMPX - Straight at single-tube adapter for DN125 valve
Allows for connecting the air intake and extraction valves to the air distribution system with a at
tube.
It is equipped with one air inlet guaranteeing a maximum airow rate of 50m³/h.
If required, the cylindrical body can be shortened with a cutting tool. The body has a series of
reference marks to make it easier to cut.
The valve adapter is supplied closed and ends with a round cap to be cut after the building work, so
as to prevent dust and dirt from entering the exible tubes.
In cases with round tube air distribution it is necessary to provide an RTPTX joint for round tube/
at pipe connection.
Dp = pressure drop
Q = Air ow
*** Joint included for at exible tube with double sealing ring.
*** Joint included for at exible tube with double sealing ring.
