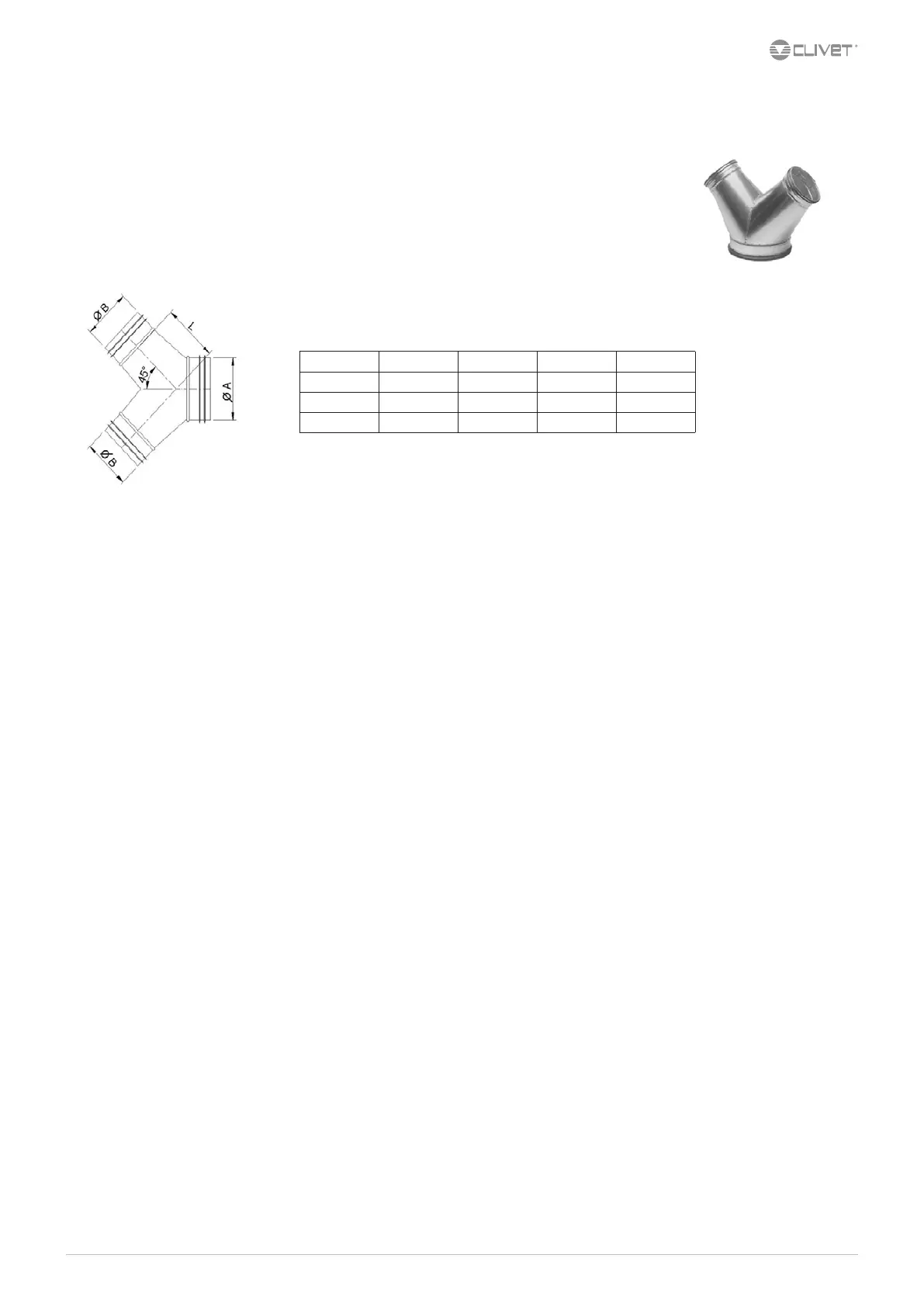

DY200X - DN200-DN200-DN200 Y-joint
DY250X - DN250-DN200-DN200 Y-joint
For the 500 and 650 ELFOFresh
2
units, two air distribution boxes are used for intake air and two boxes for
extraction, so it is necessary to split the DN250 exible pipe coming from the ELFOFresh
2
into two DN200 pipes.
The DN250-DN200-DN200 Y-branch with 45° angle allows this splitting.
If, however, you need to bring air into distant rooms you can have more distribution boxes also with the 200-300
size ELFOFresh
2
systems and in this case it is necessary to use the DN200-DN200-DN200 Y-branch.
The branch is made of galvanized metal sheet and the connections are male and equipped with seal gaskets.
A B B L Weight
Diameter [Ø] Diameter [Ø] Diameter [Ø] [mm] [kg]
200 200 200 230 2.1
250 200 200 280 3.5
