CLIVET WSAR-MT-E User Manual

17
5 - ELECTRICAL CONNECTIONS

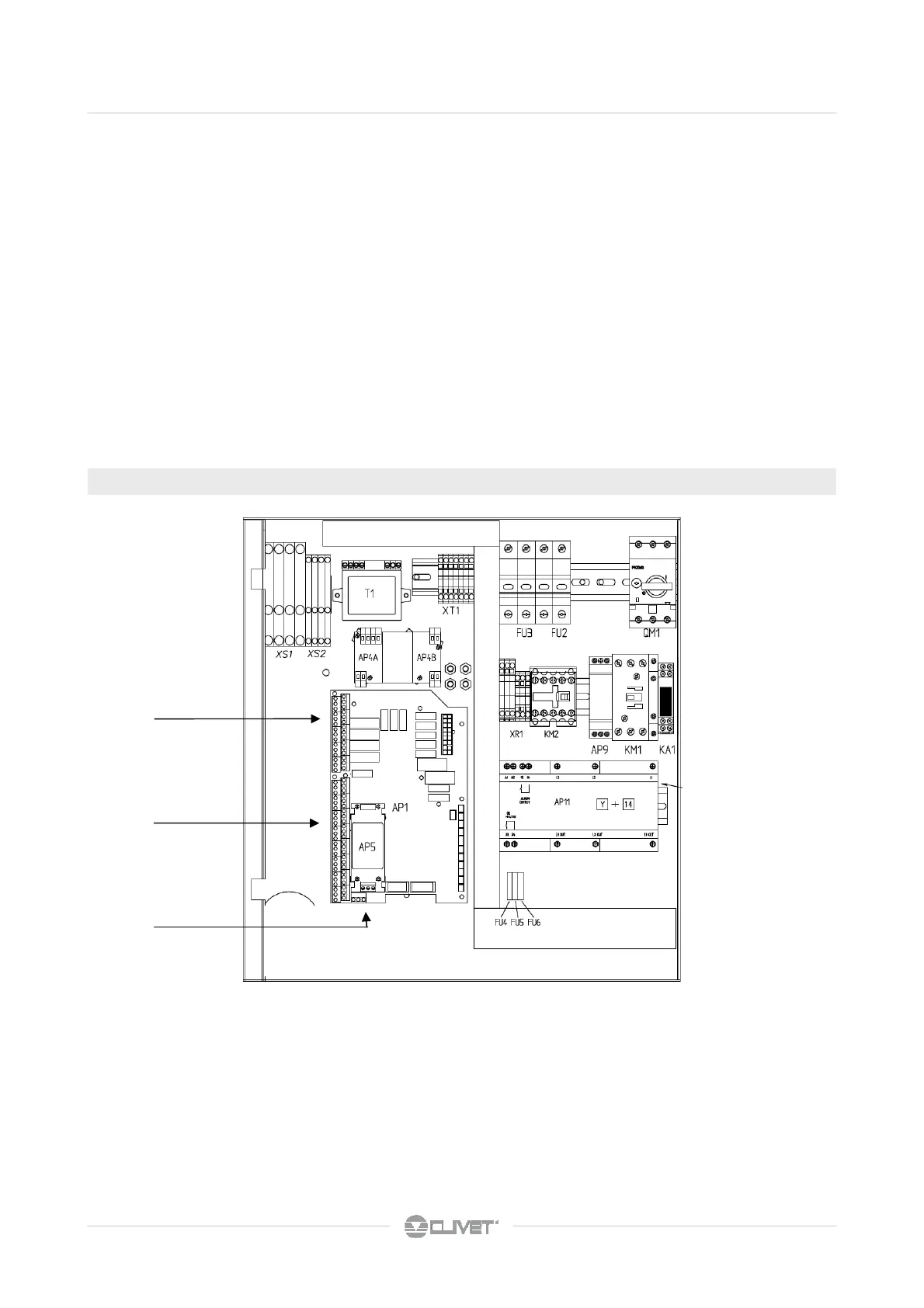

5.6 ELECTRICAL PANEL - 400/3/50+N
XC1
XC2
XC3
AP1 Main control module
AP4A
Condenser fan control module
AP4B Water pump control module
AP5 RS 485 module
AP9 Phase monitor module
AP11 Soft starter
FU2 230v auxiliary circuit fuse
FU3 Heating element fuse
FU4/5/6 Auxiliary circuit fuse
KA1 Auxiliary relays
KM1 Compressor contactor
KM2 Electric heater contactor
QM1 Compressor motor overload cutout
T1 Auxiliary circuit transformer
XS1 Single power supply input
XS2 Double power supply input
XC1 Terminal block of the Customer connections
XC2 Terminal block of the Customer connections
XC3 Terminal block of the Customer connections
INDEX - CONNECTION
Electrical panel - 400/3/50+N ....................................................... pag. 17
Electrical panel - 230/1/50 ..................................................................... 20
Remote ON/OFF : SA1 ......................................................................... 21
Remote summer - winter: SA2 .............................................................. 21
Remote second set:SA3 ........................................................................ 21
Compressor disabling: EDS .................................................................. 21
Domestic hot water kit control - option ................................................... 22
Domestic hot water request: SA4 .......................................................... 27
Sanitary valve - performed by the customer ......................................... 27
DHW setpoint correction on outside temperature - winter ...................... 27
Boiler - option ........................................................................................ 28
Electric heaters - performed by the customer ...................................... 28
System with mixing group kit ................................................................ 29
Fresh air probe only for unit in ductable version .................................. 31
Water reset ................................................................................. …….32
Set point correction on outside temperature and humidity ................... 32
Deman limit - performed by the customer ............................................ 33
External pump - performed by the customer ........................................ 33
Storage tank - performed by the customer ........................................... 33
Local user interface local ...................................................................... 33
Modbus ................................................................................................ 33
Unit interface mode .............................................................................. 34
Room chronothermostat mode ............................................................ 34
Master slave ......................................................................................... 35
