9 - TECHNICAL INFORMATION

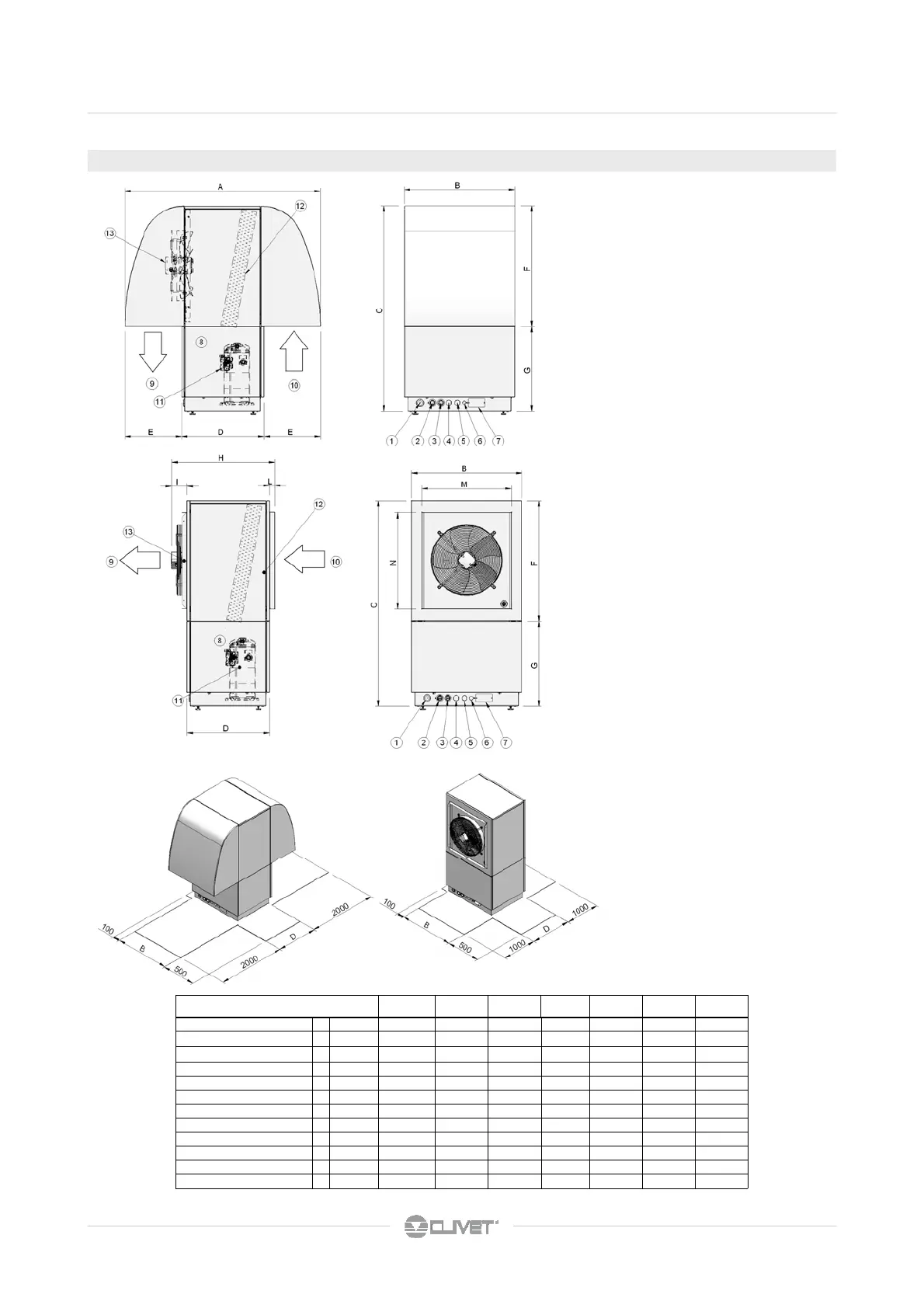

9.1 DIMENSIONS
(1) condensate discharge
(2) installation input
(3) installation output
(4) domestic hot water input
(5) domestic hot water output
(6) installation charge
(7) power input
(8) E.P. and maintenance
(9) outlet air direction
(10) inlet air direction
(11) compressor
(12) finned exchanger
(13) fan
WITH OPTION (KCUX)
WITH OPTION (CAN)
FUNCTIONAL CLEARANCES
SIZES
21 25 31 41 51 61 81
A
mm 1420 1420 1420 1420 1420 1835 1835
B
mm 800 800 800 800 800 1250 1250
C
mm 1485 1485 1485 1485 1485 1770 1770
D
mm 600 600 600 600 600 775 775
E
mm 410 410 410 410 410 530 530
F
mm 870 870 870 870 870 1120 1120
G
mm 615 615 615 615 615 650 650
H
mm 750 750 750 750 750 945 945
I
mm 110 110 110 110 110 130 130
N
mm 700 700 700 700 700 950 950
L
mm 40 40 40 40 40 40 40
M
mm 650 650 650 650 650 1000 1000
