20
5 - ELECTRICAL CONNECTIONS

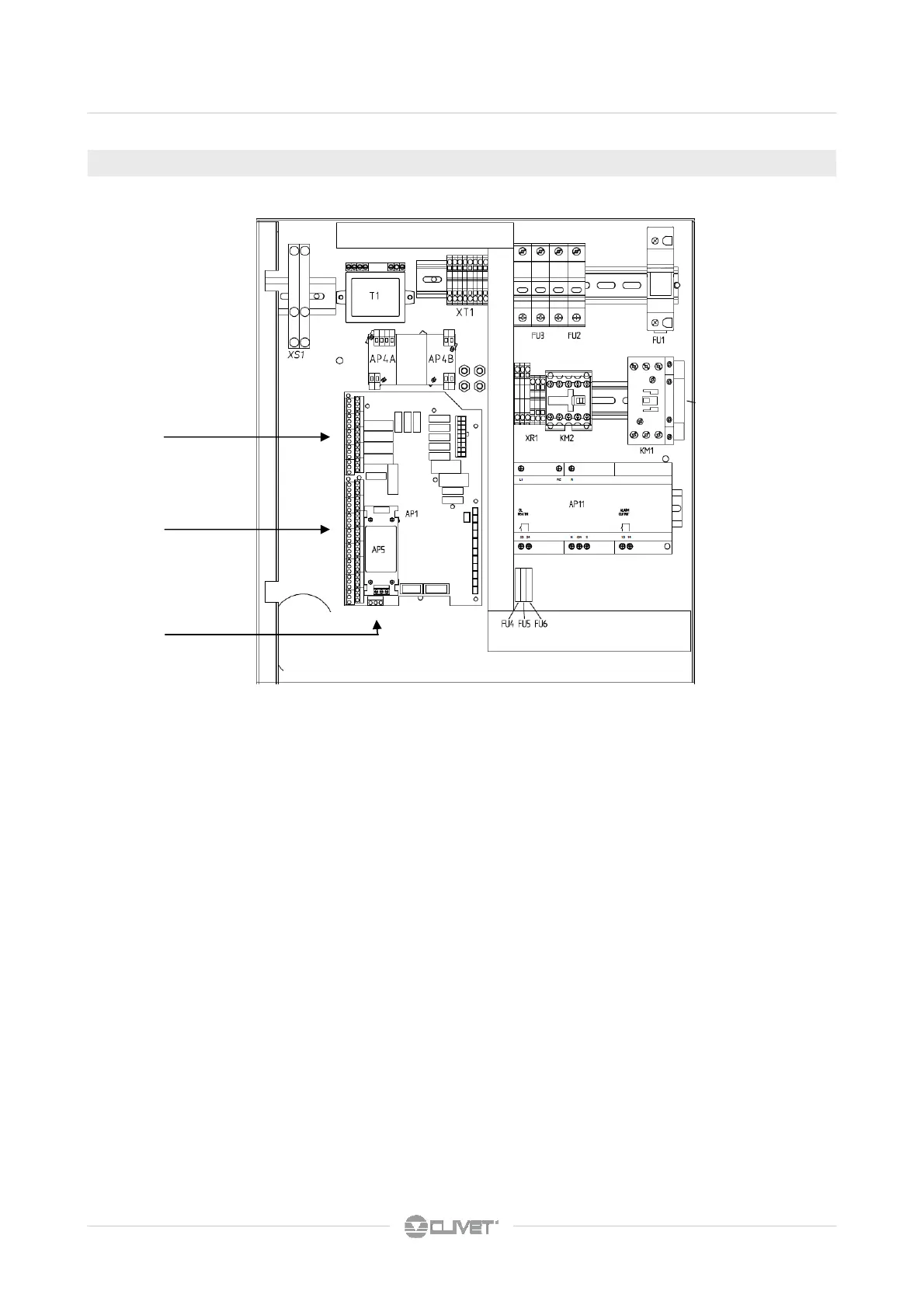

5.7 ELECTRICAL PANEL - 230/1/50
XC1
XC2
XC3
AP1 Main control module
AP4A
Condenser fan control module
AP4B Condenser fan control module
AP5 RS 485 module
AP11 Soft starter
FU1 Compressor fuse
FU2 230v auxiliary circuit fuse
FU3 Heating element fuse
FU4/5/6 Auxiliary circuit fuse
KA1 Auxiliary relays
KM1 Compressor contactor
KM2 Electric heater contactor
T1 Auxiliary circuit transformer
XS1 Power supply input
XC1 Terminal block of the Customer connections
XC2 Terminal block of the Customer connections
XC3 Terminal block of the Customer connections
