22

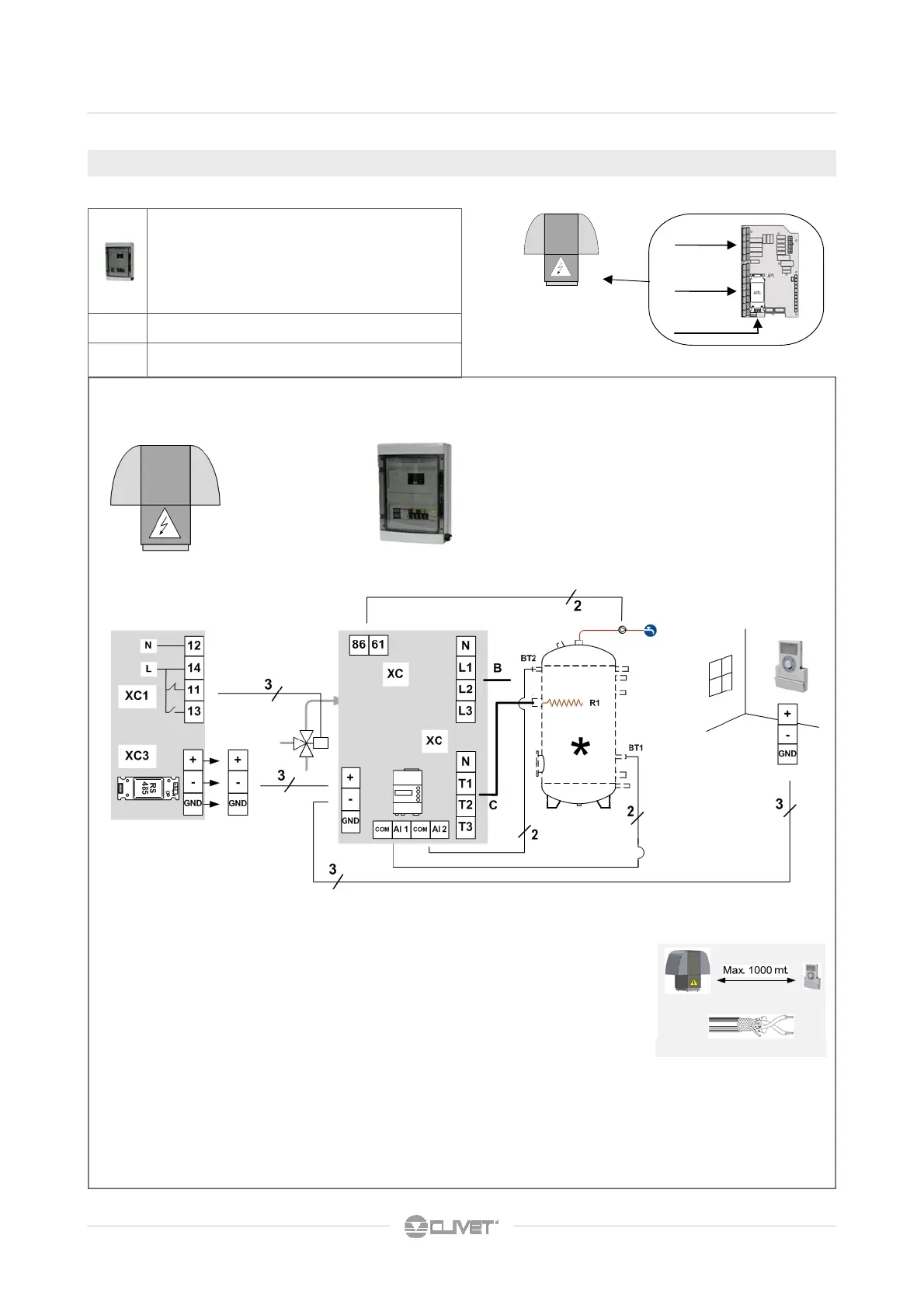

5 - ELECTRICAL CONNECTIONS
5.12 DOMESTIC HOT WATER KIT CONTROL - OPTION
Before performing any operation read carefully the IOM supplied with the unit .
DHW = Electrical panel with :
module for DHW production management;
power circuit and and resistance control comprehensive of
short circuit protection (resistance not provided by Clivet).
BT1
Temperature probe with 5 metres cable
BT2
Temperature probe with 5 metres cable
Wiring diagram
ACS - Module to be installed near the storage
B - Power supply to the DHW module:
230/1/50 or 400/3/50 + N max cable section 10 mm2
C - Power supply to the electric heaters:
230/1/50 o 400/3/50+N
Electric heaters 230/1/50 connect the N and the T1, and feed the electrical
panel between N and L1.
R1 - Additional heating element
Cable BELDEN 3105A
HID-H1 keyboard connection:
page 34, 5.28
XC1
XC2
XC3
