11
®
The tables refer to standard units. For special units or versions R, D, etc., refer to the unit dimensional drawings.
Reception/Positioning
UNIT CODE POSITIONING
302 PE581072
W1 = cod. C6100080 K=21,2
W2 = cod. C6100080 K=21,2
W3 = cod. C6100080 K=21,2
W4 = cod. C6100080 K=21,2
323
404 W1 = cod. C6100080 K=21,2
464 W2 = cod. C6100082 K=25,6
524 W3 = cod. C6100080 K=21,2
564 W4 = cod. C6100082 K=25,6
614
PE581051
ANTIVIBRATION MOUNTS CODES

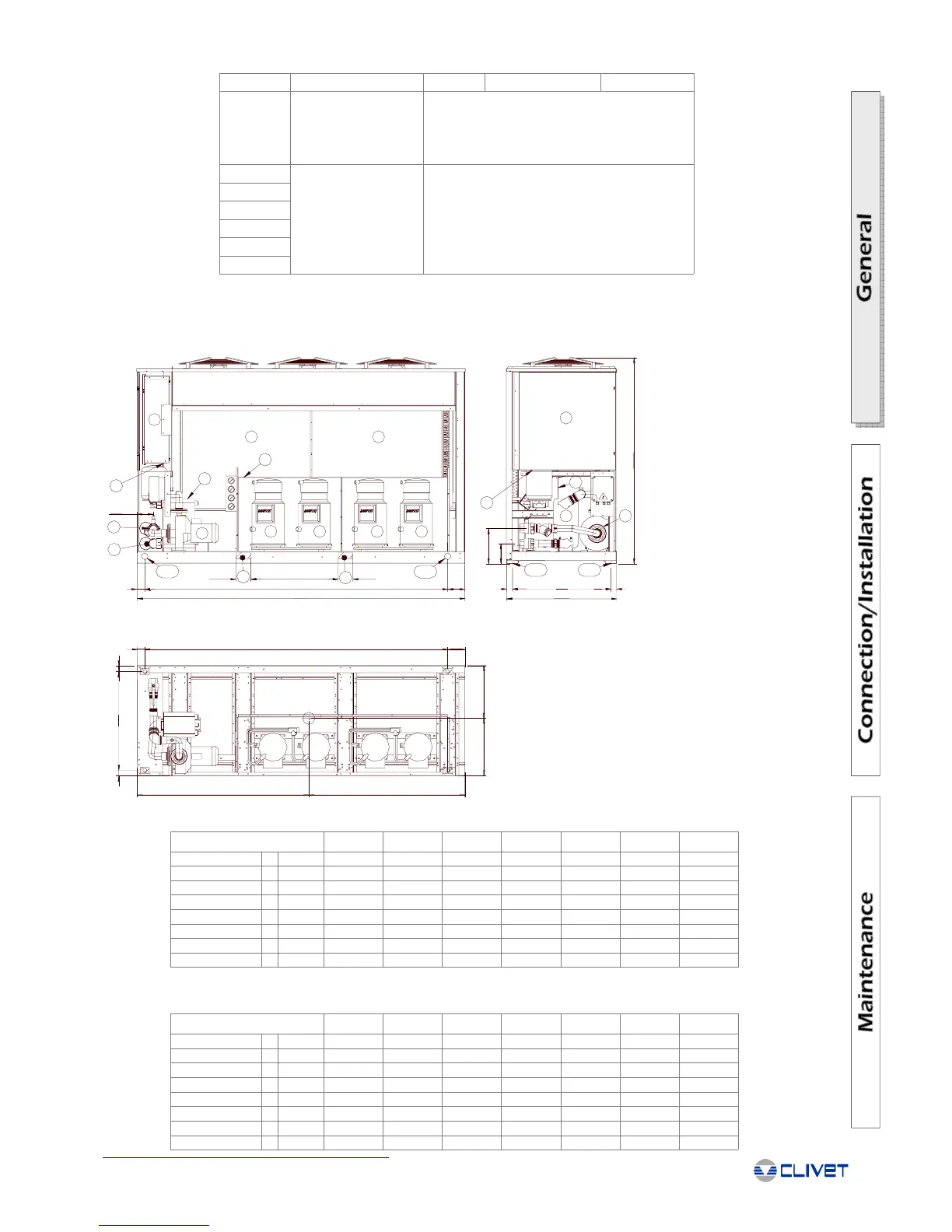

DIMENSIONS
W3
11 11
2
33
7
7
W1 W2
W4
10
MN
O
W3
W1 W2
W4
P
W3
W1 W2
W4
"G"
977
W
9
59
175299085
59
977
L
861
2990
9
8
160
85
11
4-5
12
148
6
2
4-5
148
6
200
350
175
59
4-5
8
H
59
4-5
10
KEY:
1. Compressor
2. Evaporator
3. Condenser
4. Unit mounts holes
5. Belt lifting holes
6. Fork lift lifting holes
7. Electrical panel
8. Power supply input
9. Sound proof enclosure
10. Centrifugal water Pump
11. Evaporator water inlet
12. Evaporator water outlet
Version S / Configuration ST
Version S / Configuration LN
SIZES 302 323 404 464 524 564 614
H
mm 2030 2030 2030 2030 2030 2030 2030
L
mm 3250 3250 3250 3250 3250 3250 3250
M
mm 1628 1675 1703 1701 1708 1722 1733
N
mm 1622 1575 1547 1549 1542 1528 1517
O
mm 523 544 554 557 559 564 568
P
mm 572 551 541 538 536 531 527
W
mm 1095 1095 1095 1095 1095 1095 1095
OD
“ 2" 1/2 2" 1/2 2" 1/2 2" 1/2 2" 1/2 2" 1/2 2" 1/2
SIZES 302 323 404 464 524 564 614
H
mm 2030 2030 2030 2030 2030 2030 2030
L
mm 3250 3250 3250 3250 3250 3250 3250
M
mm 1637 1682 1709 1707 1714 1727 1738
N
mm 1613 1568 1541 1543 1536 1523 1512
O
mm 529 548 558 561 563 568 572
P
mm 566 547 537 534 532 527 523
W
mm 1095 1095 1095 1095 1095 1095 1095
OD
“ 2" 1/2 2" 1/2 2" 1/2 2" 1/2 2" 1/2 2" 1/2 2" 1/2
