14
WSAN-YES 18.2-35.2
M0ST10N19-00

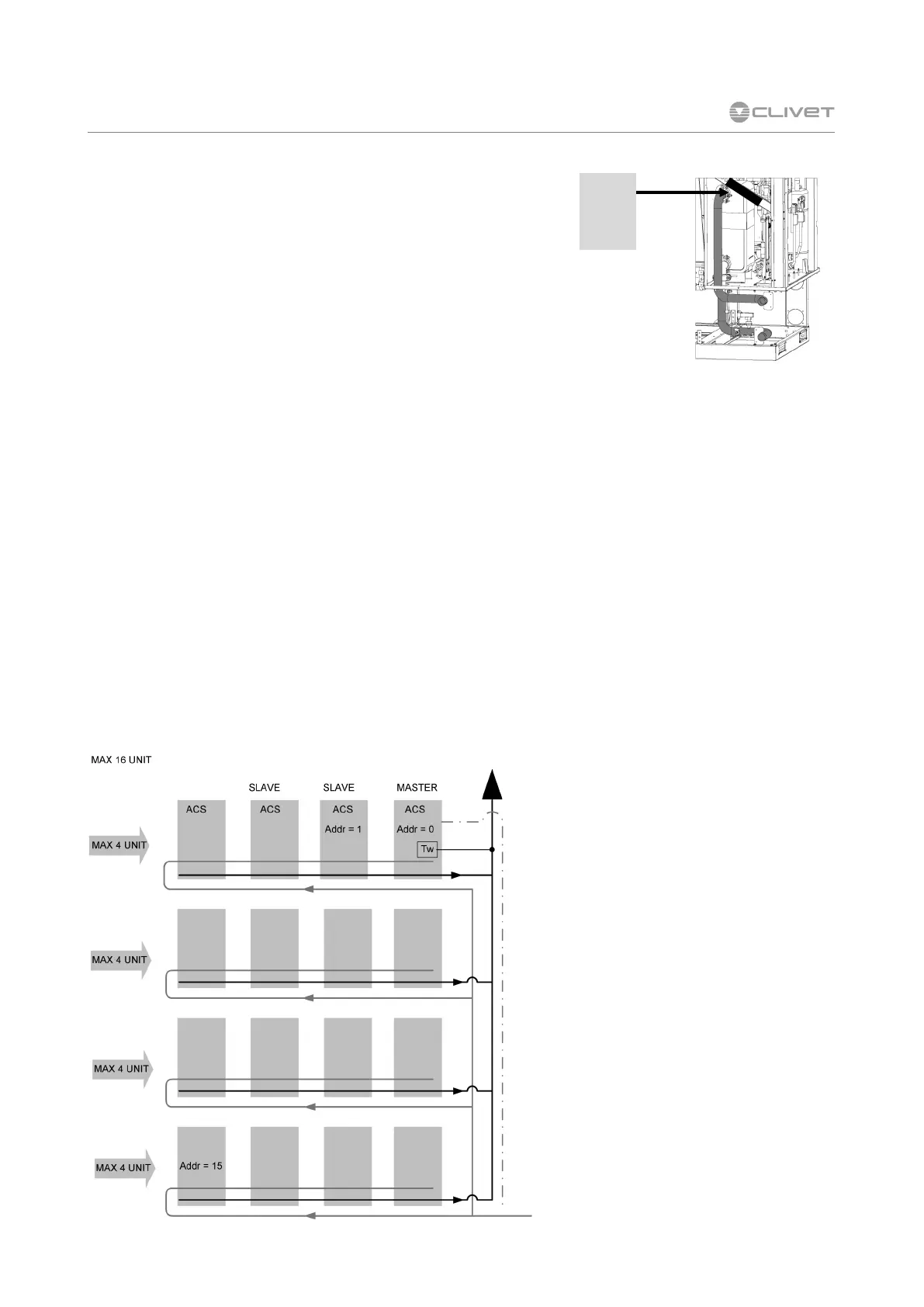

TW Probe - Total water
It must be installed on the supply of the unit, as far away
as possible.
SINGLE UNIT: antifreeze function
MODULAR UNIT: thermoregulation (see diagram below)
4 WATER CONNECTION
Taf1
T5
Tw
Unit in modular configuration
 Maximum 16 total units.
 Maximum 4 units in the same water branch.
 The modular system is controlled by the MASTER unit (address=0), → Electrical connections
 All units must be electrically connected to each other con cavo schermato a 3 conduttori → Electrical
connections Each module must be configured with the water fittings for modular unit (AMOD).
 Each module can be equipped with inertial system storage tank (ACIMP).
 It is not possible to have a hydronic assembly installed on board.
 It is necessary to provide an external pumping unit, sized for the entire capacity of the modular system
( r esponsibility of the Customer ) . The pumping unit will be managed by the Master unit through a potential-free
contact and 0-10V signal → electrical connections
DHW managament in modular configuration
 Each unit with ACS option must have its own DHW storage
 Each unit with DHW option must have its own DHW storage tank.
 The pumping unit is managed directly by the unit with ACS option via clean contact (PUMP-N)
 The management of domestic hot water takes priority over the system
→ Domestic hot water
