CLIVET WSAT-YES 18.2-20.2 User Manual

20
WSAN-YES 18.2-35.2
M0ST10N19-00

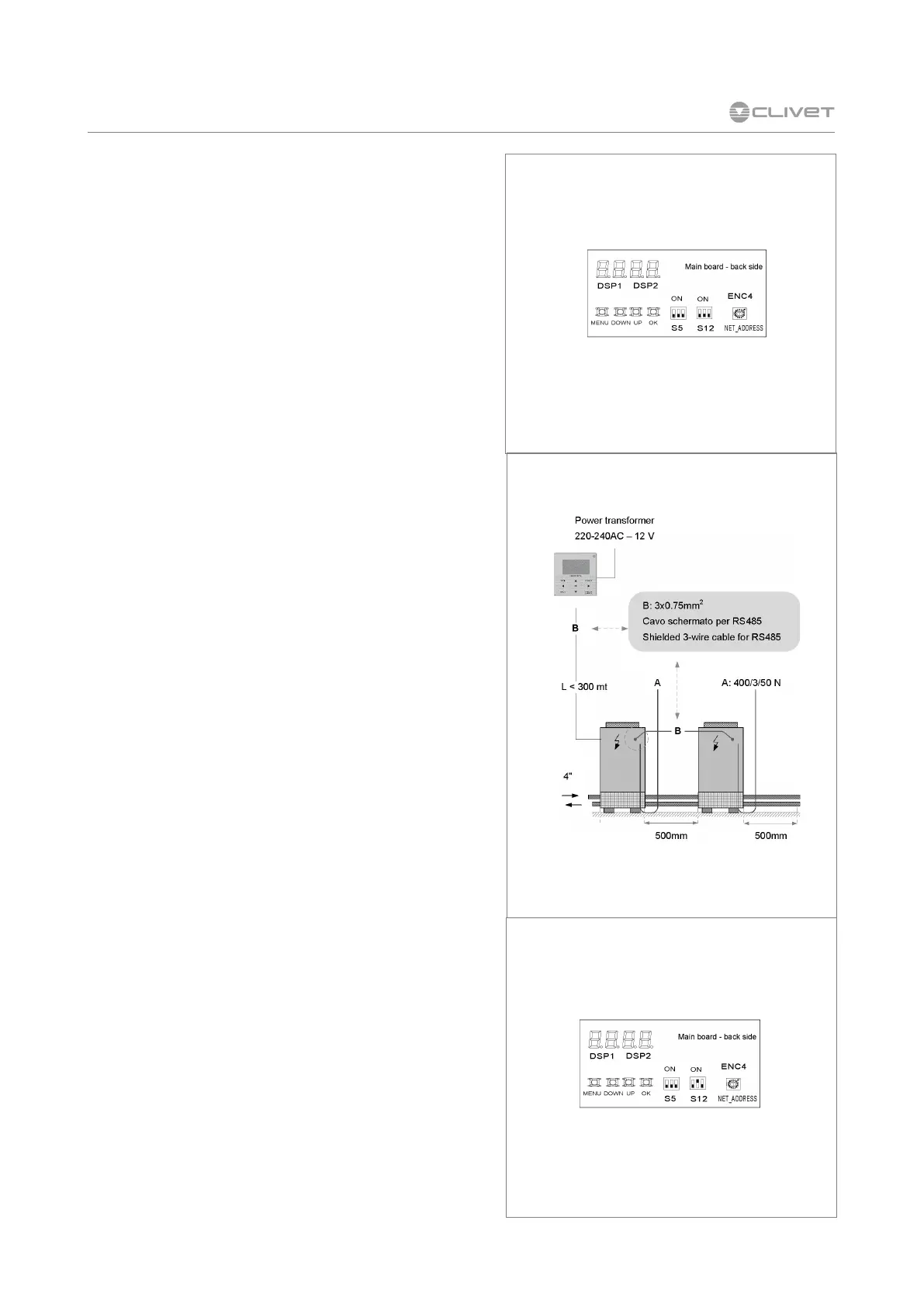

REMOTE CONTROL
With S5_3 ON, the unit is controlled remotely.
Wired controller disabled.
ON/OFF state:
controlled by the On/Off input
input ON = unit ON
Heat/Cool mode:
controlled by the Heat/Cool input
On = heating, Off = Cooling
With the units in modular configuration, remote
control must be applied to the master unit, which
transmits it to the slave units.
After having set S5_3 disconnect and reconnect the
power supply to confirm the change.
Unit in modular configuration
Set the correct date and time on each unit before
connecting them to the network
Enable multiple configuration:
SW12-2 :
ON units in multiple configuration (or enabling DHW
menu)
OFF single unit
The modular configuration consists of two networks:
the controller network and the unit network (main
boards).
Each network can have up to 16 addresses (from 0
to 15) and must be addressed separately.
Each network has its own master, which must have
address = 0.
If some slave have no DHW option:
 set as master a unit without DHW option.
 set the major addresses to the slaves equipped with
DHW option
5 ELECTRICAL CONNECTIONS
Addressing units in multiple configuration
They are addressed through the encoder ENC4 on
the back of the keypad.
The address corresponds to the encoder no.
The address is shown on the display DSP1.
Es: MASTER : address = 0 encoder = 0
SLAVE 1 : address = 1 encoder = 1
SLAVE 15 : address = 15 encoder = F
