CLIVET WSAT-YES 18.2-20.2 User Manual

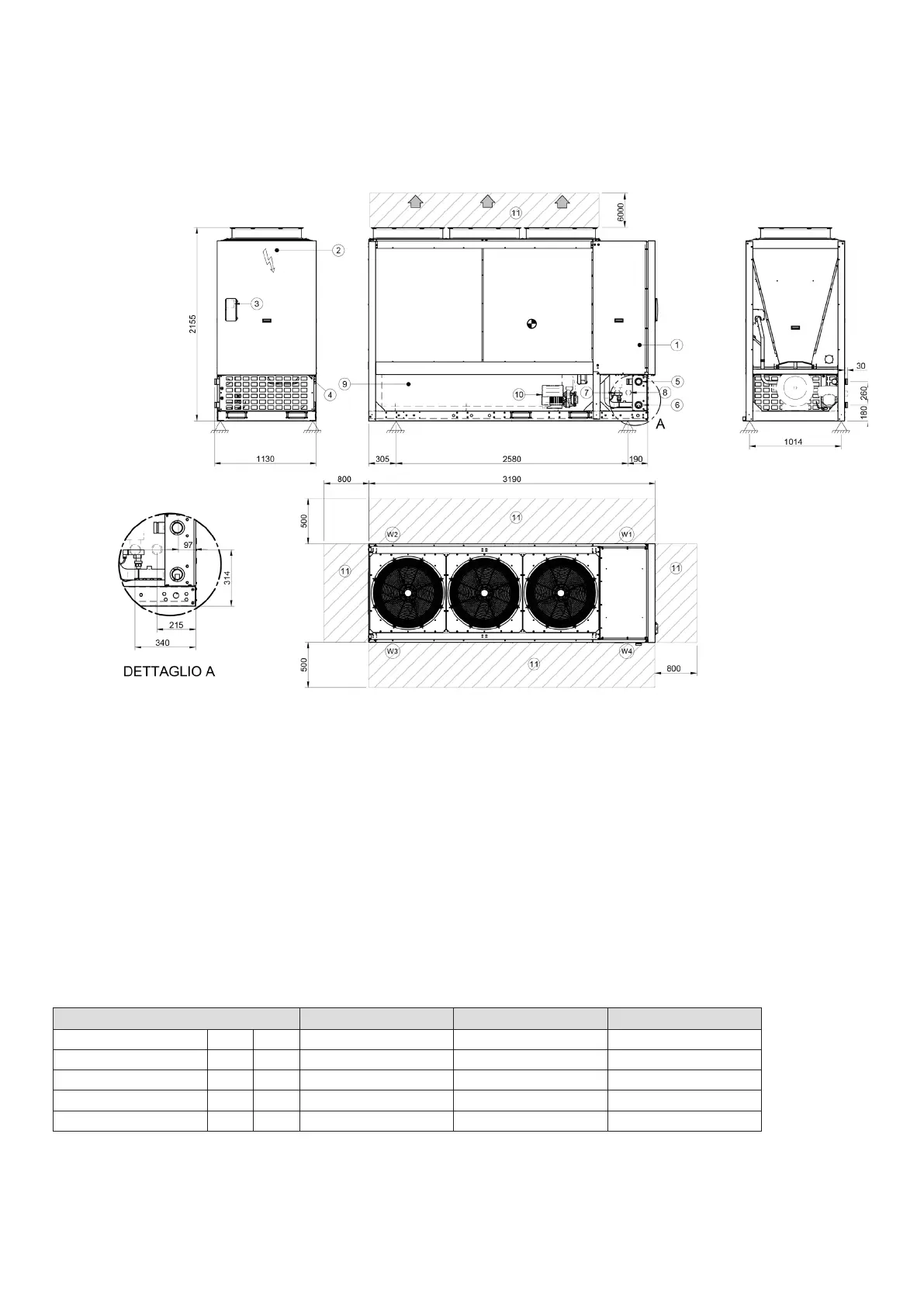

Dimensional drawings
1. Compressor compartment
2. Electrical panel
3. Control keypad
4. Power input
5. Water inlet 2” Victaulic
6. Water outlet 2” Victaulic
7. DWH inlet 2” Victaulic (optional)
8. DWH outlet 2” Victaulic (optional)
9. Water tank (optional)
10. Pump (optional)
11. Functional spaces
In modular conguration the water input and output are 4” Victaulic.
DAAST0002_REV00
Data/Date 10/04/2019
Size 25.2 - 30.2 - 35.2
Size 25.2 30.2 35.2
Lenght mm 3190 3190 3190
Depth mm 1130 1130 1130
Height mm 2155 2155 2155
Operating weight kg 780 780 780
Shipping weight kg 796 796 796
The presence of optional accessories may result in a substantial variation of the weights shown in the table.
