Signals / data lines
Do not overpass the maximum power allowed, which varies, according to the type of signal.
Lay the cables far from power cables or cables having a different tension and that are able to emit
electromagnetic disturbances.
Do not lay the cable near devices which can generate electromagnetic interferences.
Do not lay the cables parallel to other cables; cable crossings are possible, only if laid at 90°.
Connect the screen to the ground, only if there aren’t disturbances.
Guarantee the continuity of the screen during the entire extension of the cable.
Respect impendency, capacity and attenuation indications.

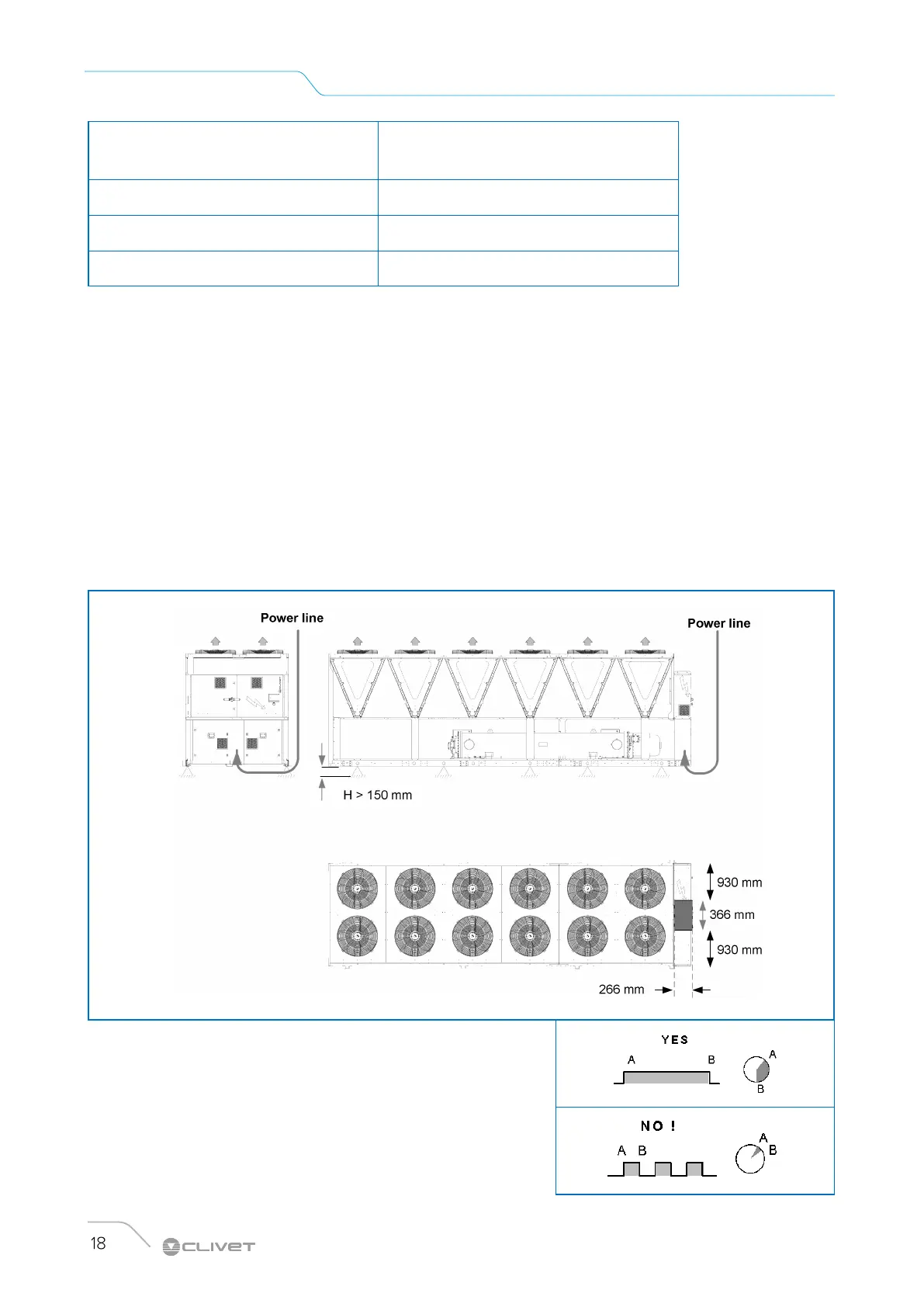

Power input
Remote ON-OFF
Do not perform short On Off cycles
Do not use the remote On Off with thermoregulation function.
Cross-section of the line conductors
(mm
2
)
Minimum cross-section of the protective
conductor (PE) (mm
2
)
S ≤ 16 S
16 < S ≤ 35 16
S > 35 S/2
5 - ELECTRICAL CONNECTIONS
