CLIVET WSAT-YSC4 User Manual

LonWorks - Option
BACnet IP - Option

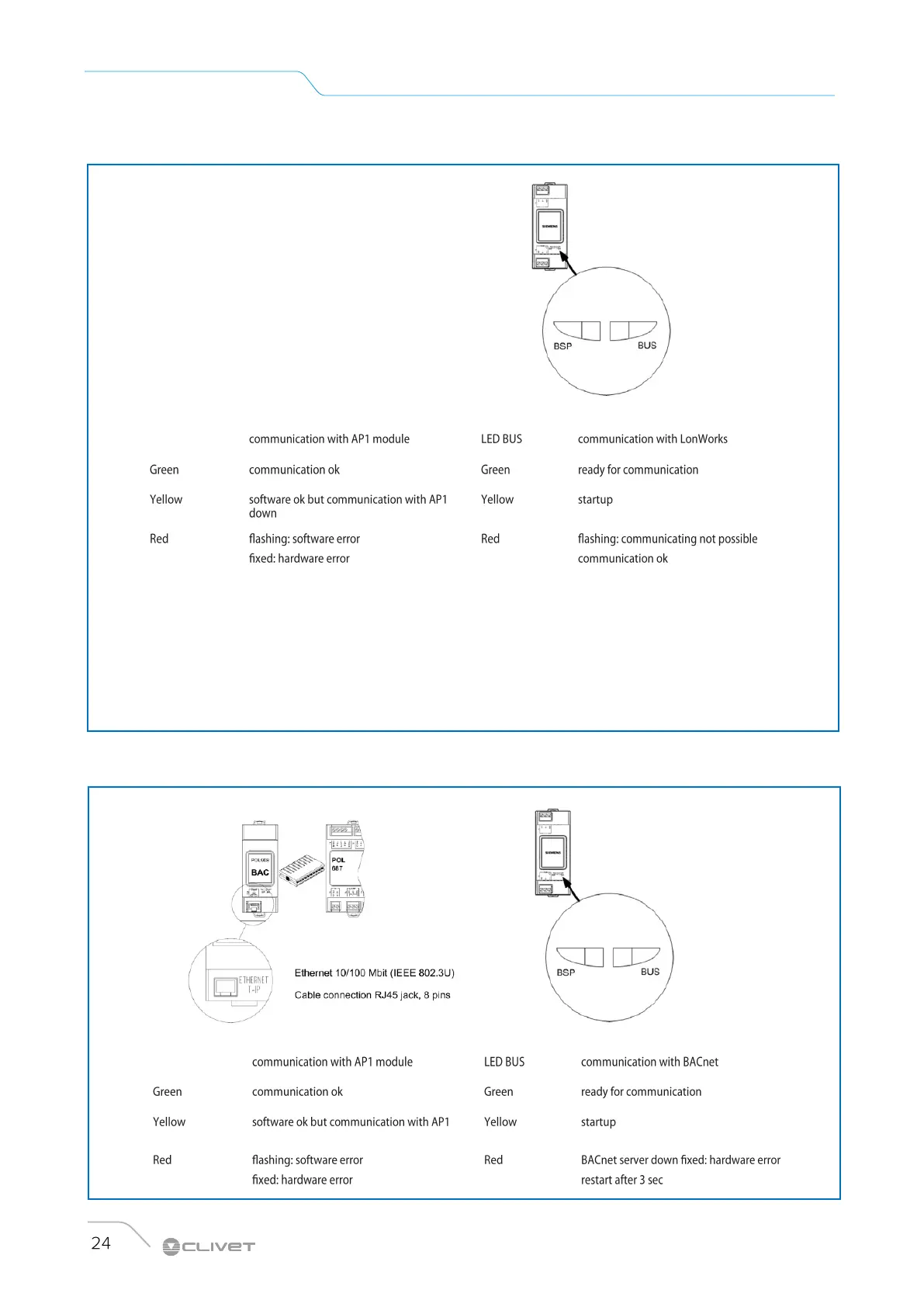

LED BSP
LONWORK CABLE TYPE
Echelon allows three cable types for channel type TP/FT-10, including the Category 5 network cable used commonly in building automaon and control (TIA 568A
Cat-5).
CAT-5 SPECIFICATIONS
Unshielded cable, twisted pair with at least 18 beats per meter:
- Cross-seconal area min ø 0,5mm
2
- impedance 100 +/- 15% @ f > 1 MHz
- operang capacity between two wires of a pair < 46 nf/km - capacity pair to ground, asymmetric. < 3,3 nF/km
- DC loop resistance < 168 Ω
LED BSP
5 - ELECTRICAL CONNECTIONS
