clivus multrum LOW PROFILE - STEP 6: CONNECT THE VENT PIPE AND FAN

©Ecoflo Wastewater Management Pty LtdIMCM-203-2023.08.30
9

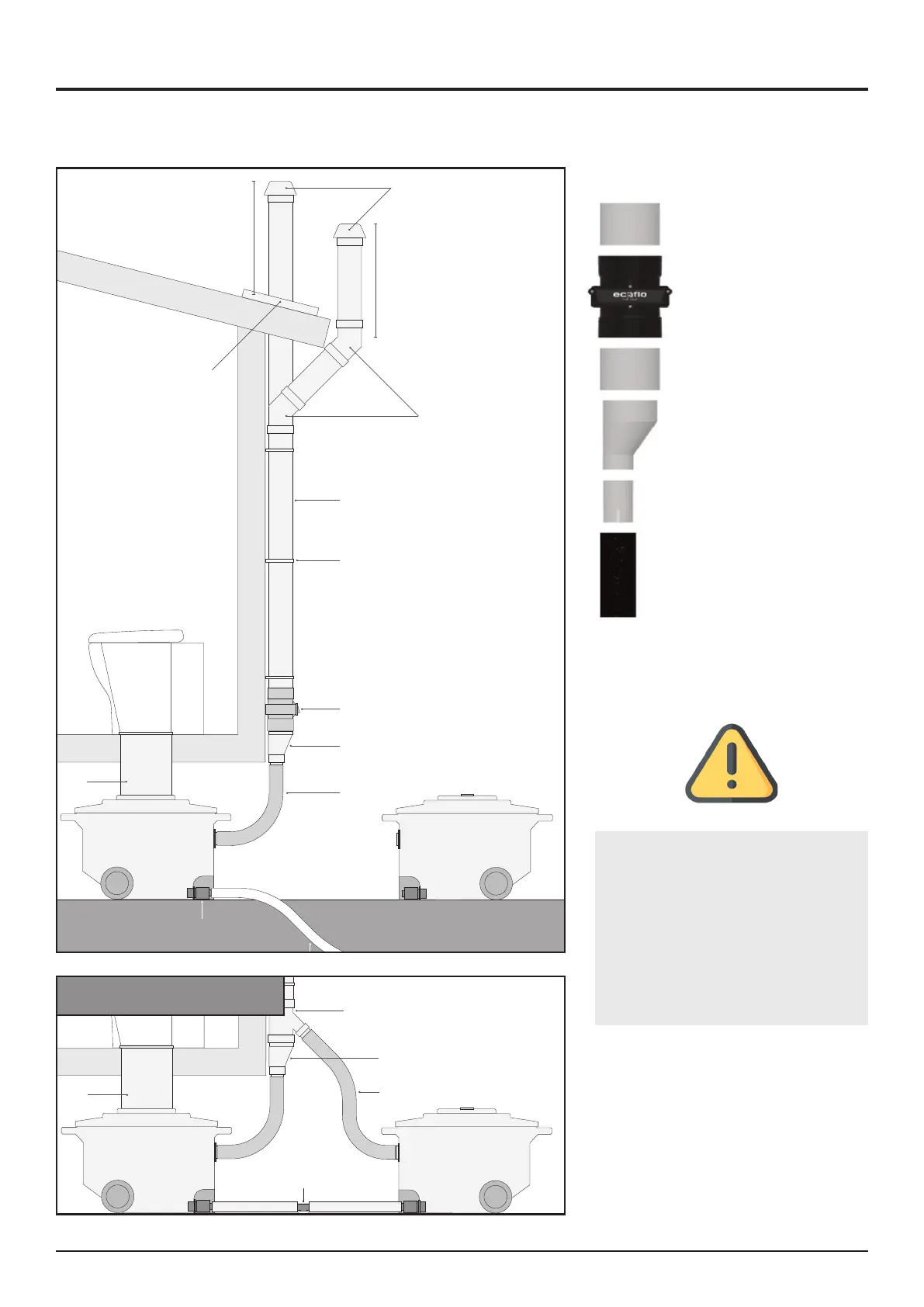

STEP 6: CONNECT THE VENT PIPE AND FAN
The fan is IP68 rated so will not be effected by moisture.
Do not glue the fan housing to
the DWV fittings.
It is recommended that the
fan runs 24 hours a day to
continuously circulate air
through the compost heap.
Pedestal
Chute
Min. 500mm
Fan in housing
Y Juntion
L.I.T Reducer
Vent pipe
Brackets*
100mm DWV pipe*
45° bend
Dektite*
600mm
600mm
Vent cowl
Camlock fittings
Excess liquid drain hose
T-piece*
(3 way hose connector)
Leachate drain*
Out-of-service
chamber
In-service
chamber
Pedestal
Chute
Min. 500mm
Fan in housing
L.I.T Reducer
Vent pipe
Brackets*
*Not included in package
100mm DWV/Sewer pipe*
45° bend
Dektite*
600mm
600mm
Vent cowl
Camlock fittings
Excess liquid drain hose
Leachate drain*
In-service
chamber
Out-of-service
chamber
Optional Installation
Air is drawn down the
toilet pedestal through the
compost chamber and out
the vent pipe.
Fan in housing
100mm Pipe (not included)
100mm Pipe (not included)
100-50mm L.I.T Reducer
Slotted Pipe Connector
Flexible Air Pipe
