clivus multrum LOW PROFILE - STEP 7: CONNECT THE FLEXIBLE VENT PIPE AND LIQUID DRAIN HOSE

©Ecoflo Wastewater Management Pty LtdIMCM-203-2023.08.30
10

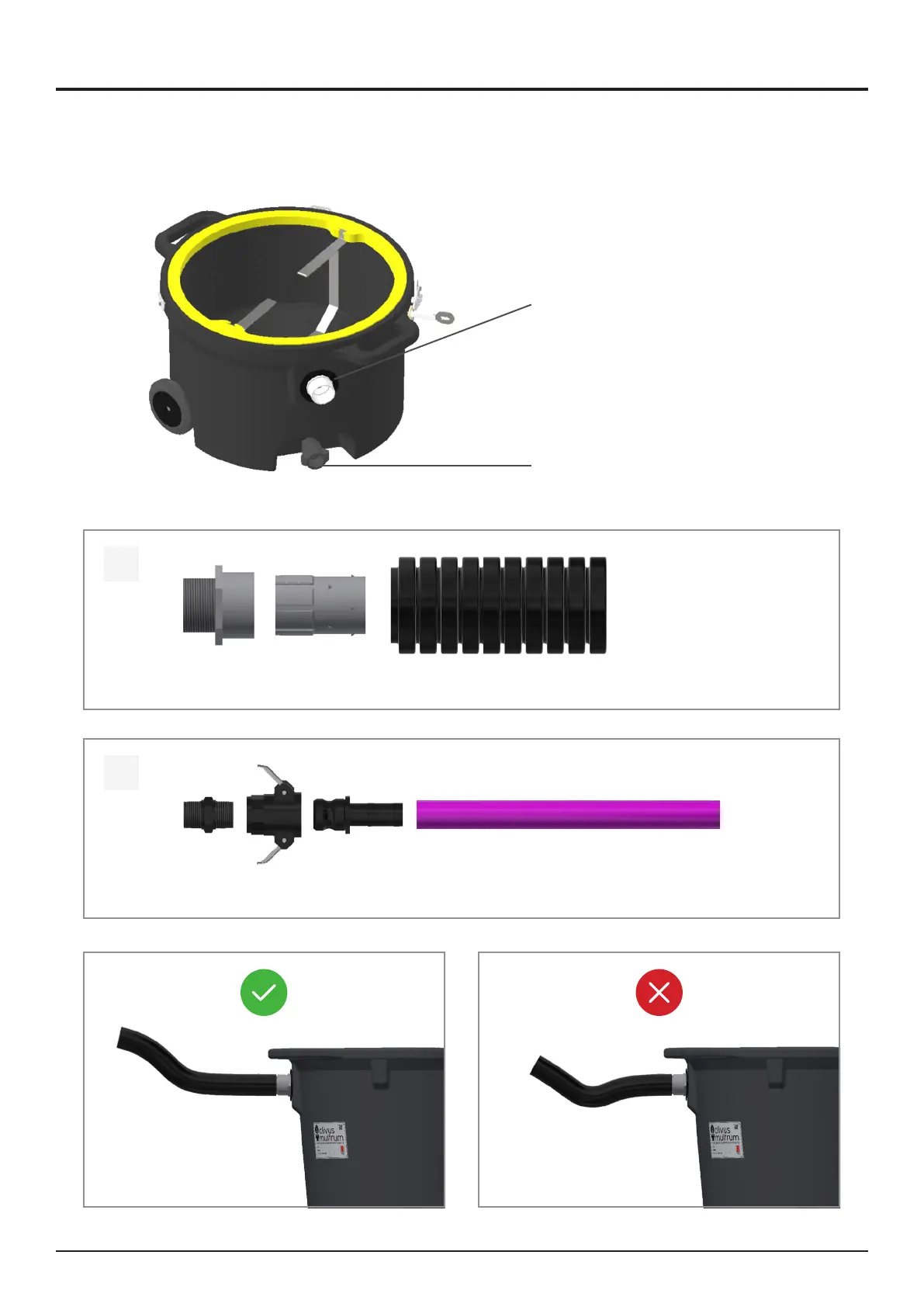

STEP 7: CONNECT THE FLEXIBLE VENT PIPE AND LIQUID DRAIN HOSE
Connect the flexible vent pipe (black) and liquid drain hose (purple) to the chambers.
1
2
Air vent outlet (See image 1)
Screw the threaded 50mm MI
connector into here. Then insert the
slotted pipe connector into the MI
connector.
Liquid drain outlet (See image 2)
MI Connector Slotted Pipe
Connector
Flexible Vent Pipe
Female
Camlock
Nipple Male Barbed
Camlock
Liquid Drain Hose
Dip the ends of the
vent pipe into hot
water for easier
insertion of the
pipe connectors.
