clivus multrum LOW PROFILE - LEACHATE DRAIN

©Ecoflo Wastewater Management Pty LtdIMCM-203-2023.08.30
13
LEACHATE DRAIN
A leachate drain kit (not including gravel) is available to purchase separately from Ecoflo Wastewater
Management.
Alternatively, if your council allows, you may wish to construct your own leachate drain. The liquid drain
hose should run into either a 50mm PVC pipe (drilled to allow liquid to escape) OR a length of socked

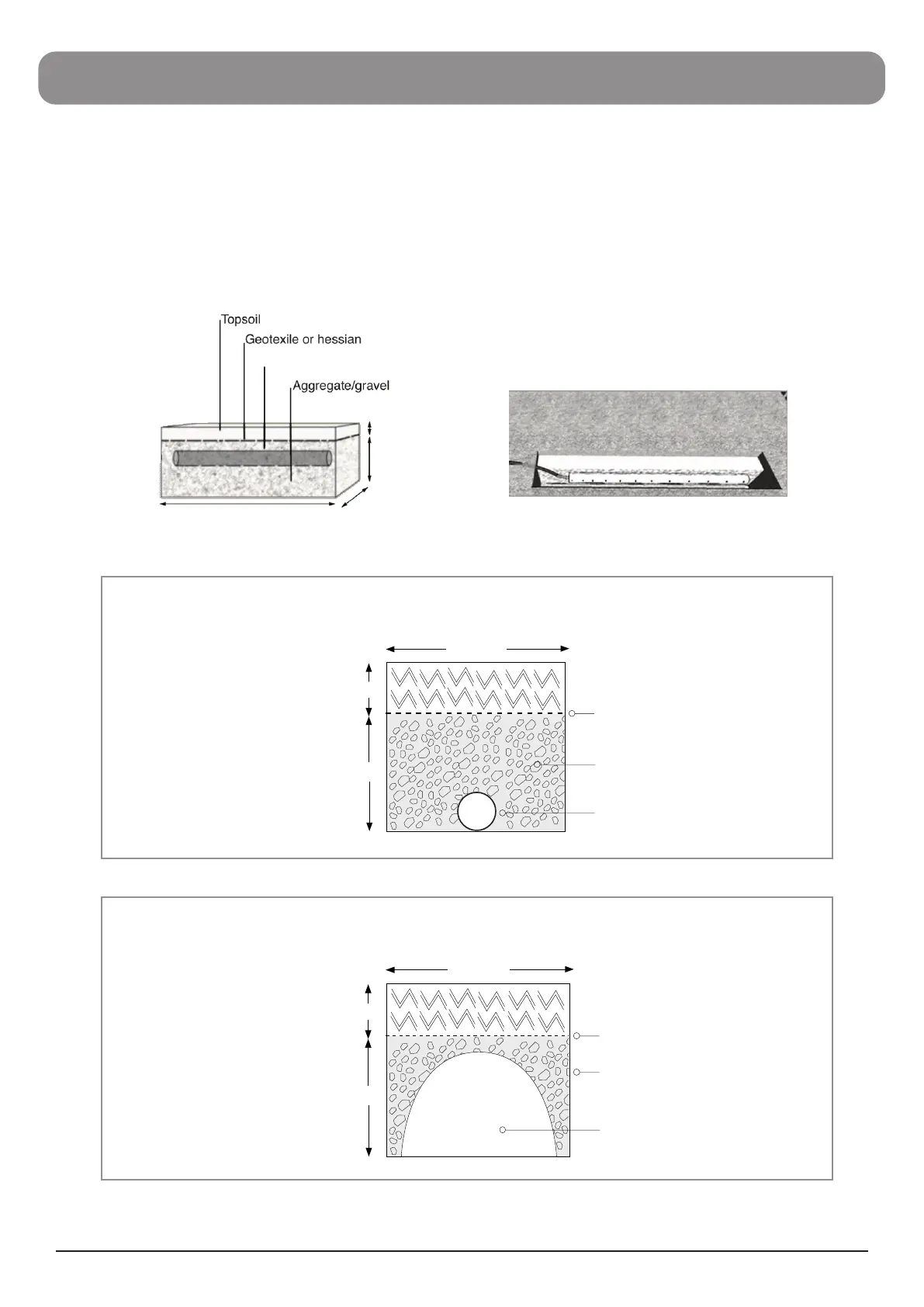

slotted Ag pipe, buried in an absorption trench as shown in the diagram below.
150mm
230mm
500mm
1200mm
Socked slotted pipe
230 min
150 min
500 min
Leachate drain
Gravel
Geofabric layer
300 min
150 min
450 min
20mm Gravel
ø100mm Agi Drain
Geofabric layer
agi Drain
Trench arch Drain
