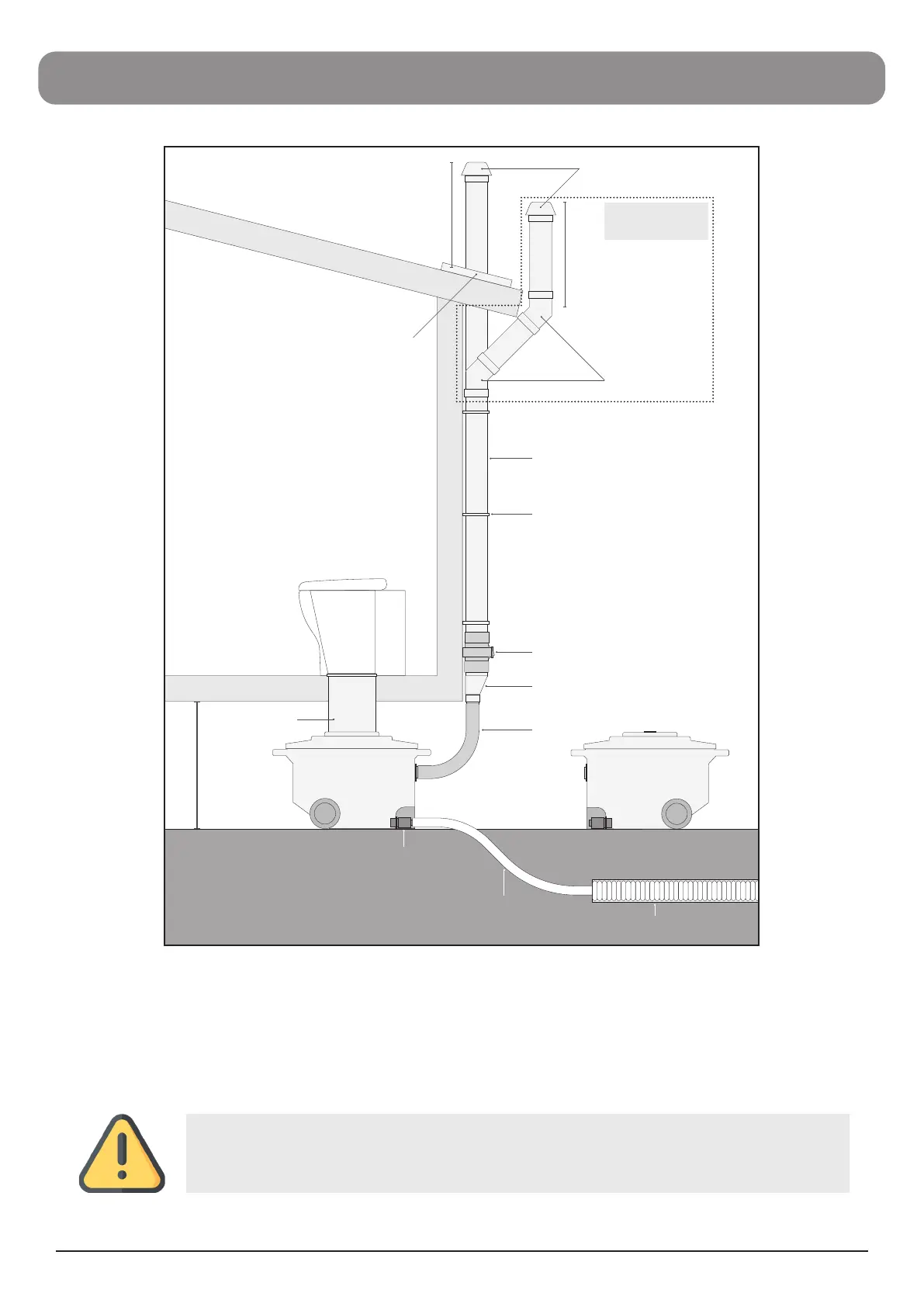

SCHEMATICS
If you are planning to excavate an area under the house for the compost
chambers, please ensure the area is well-drained and any retaining walls
are built to the satisfaction of the local authority.
Pedestal
Chute
Min. 500mm
Fan in housing
L.I.T Reducer
Vent pipe
Brackets*
100mm DWV/Sewer pipe*
45° bend
Dektite*
600mm
600mm
Vent cowl
Camlock fittings
Excess liquid drain hose
Leachate drain*
In-service
chamber
Out-of-service
chamber
Optional
Vent
Installation
* Not included in package.
A separate vent kit and drain kit are available to purchase from Ecoflo.
