INSTALLATION

STEP 1: POSITION THE PEDESTAL

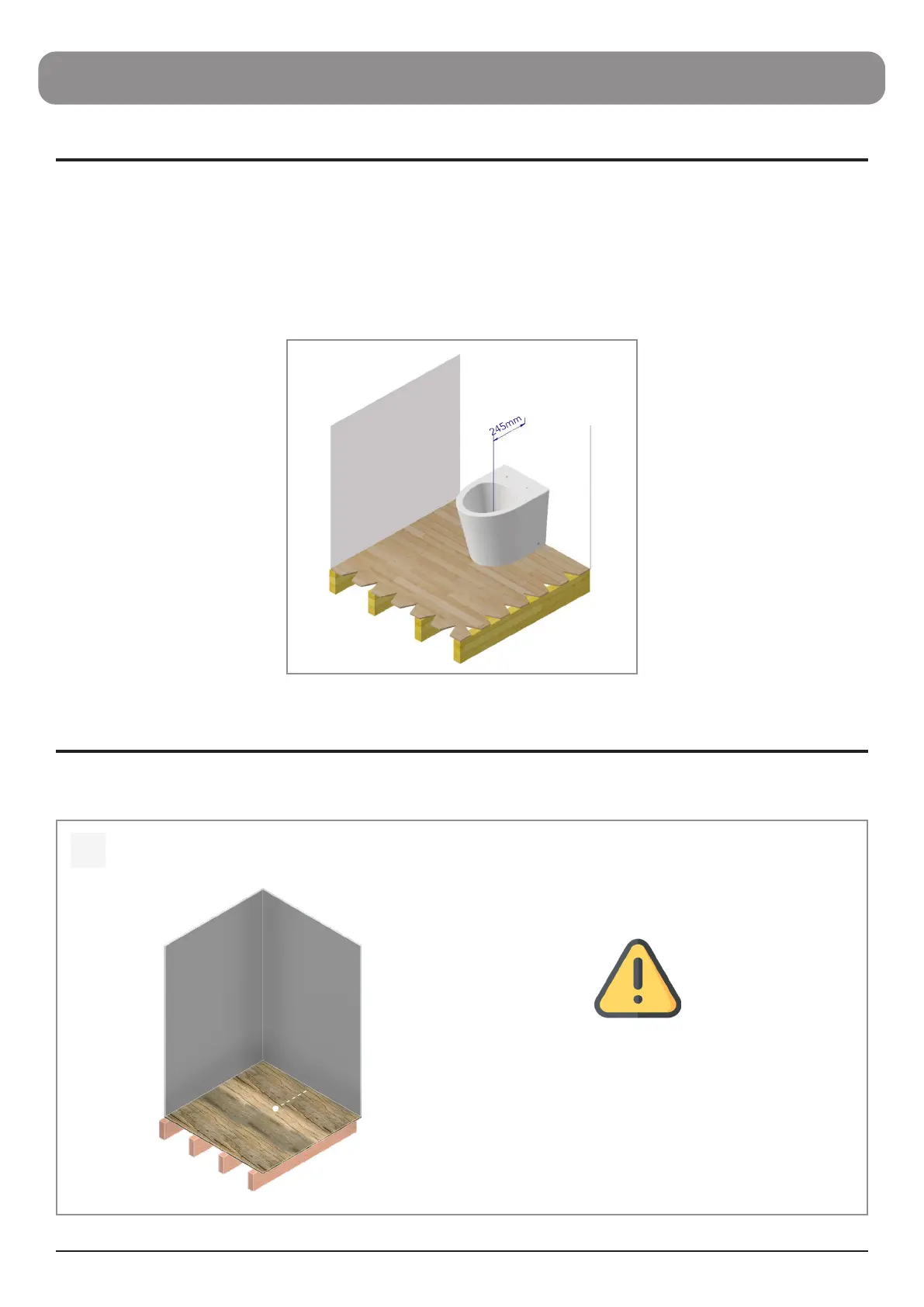

Locate the approximate area where you want the pedestal to go before cutting the hole.

The usual position for pedestals is centered between side walls.

NOTE: Due to the pedestals being man made, the distance to the center may vary from 245-255mm.

Please check before cutting the hole.

STEP 2: POSITION THE WASTE CHUTE

A 240mm hole must be cut in the toilet room floor to accommodate the waste chute.

Go to the underfloor area and look for

the hole you have drilled. Check to see if

there is a floor joist, water pipe or electrical

wiring under the area you are going to cut.

Following the provided pedestal floor template, mark the location of the centre hole 245-

255mm from the back wall. Drill a small hole.

Back wallSide wall
