POWERING YOUR FAN
Mains Power
A 120 /12 volt regulated transformer is included to run the fan from mains power. The positive wire
the transformer is marked with a white line. The fan has anti-polarity protection and would not run if
connected incorrectly. If you have a solar panel, refer to the instructions provided with it.
Connect the fans to the transformer as follows:
1
3
5
2
4
6

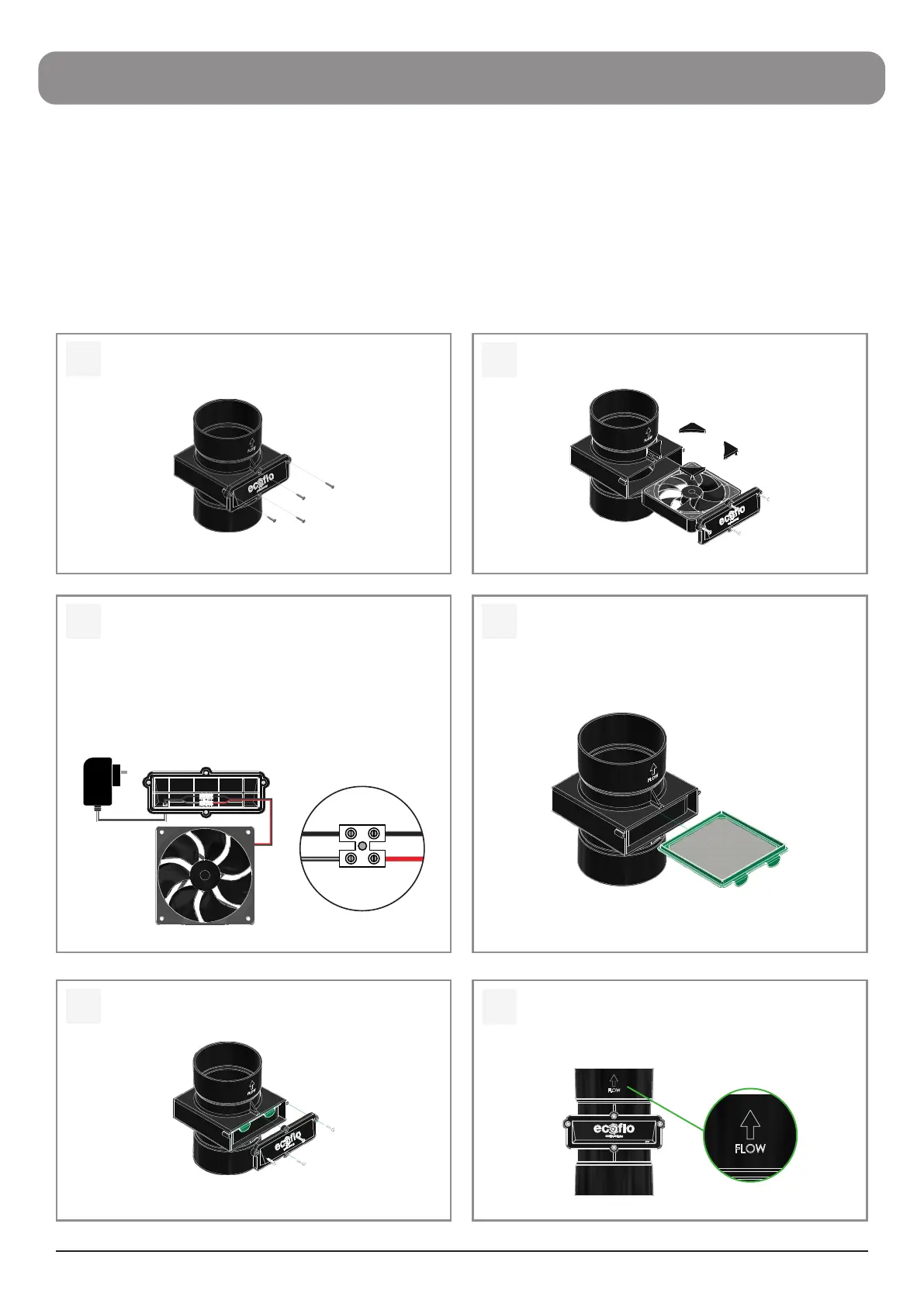

Unscrew the fan housing cover.
Attach the transformer cables to the
terminal block as shown below.
Pull out the transport spacers.
Insert the fan and fan mesh into the
housing, with the fan mesh on top.
Screw fan cover back onto housing. Test the fan. Airflow should be directed
upwards, towards the top of the fan
housing (see arrow).
Black to black (negative)
Red to black with white stripe (positive)
