1 - Overview
The CDT 100 four input Dante interface is the ideal interface for adding mic inputs to a Dante system.
The small form factor to the CDT 100 allows them to be mounted almost anywhere, pung them close to the microphone
sources and minimizing interference-prone analog wiring.
CDT 100 Features:
Easy to install with under table mounng.
Audio and control signals transported over Dante.
4 X mic/line inputs using 3-pin de-pluggable connectors for “Balanced” or “Unbalanced” connecvity.
Provides phantom power for each input also supports a +48V phantom power opon.
Powered by an external +12VDC (ordered separately).
Power can also be daisy chained
The CDT 100 has 4 X connecons to support the CH32 buon and other Clockaudio control devices:
 CRM 202S
 CS S Series
 S 80S
 SM 80S
 TS001
The CDT 100 connects directly to ARM-C port for the ARM motorized microphone.
The CDT 100 has two network connecons to allow Dante Daisy Chaining (DDC).
DDC further simplies system infrastructure wiring by allowing mulple CDT100’s to use a single CAT 5 home run connecon
to a network switch.
Compable with any Dante capable audio DSP.
The CDT 100 can be controlled and monitored with 3
rd
party control soware using direct UDP messages.

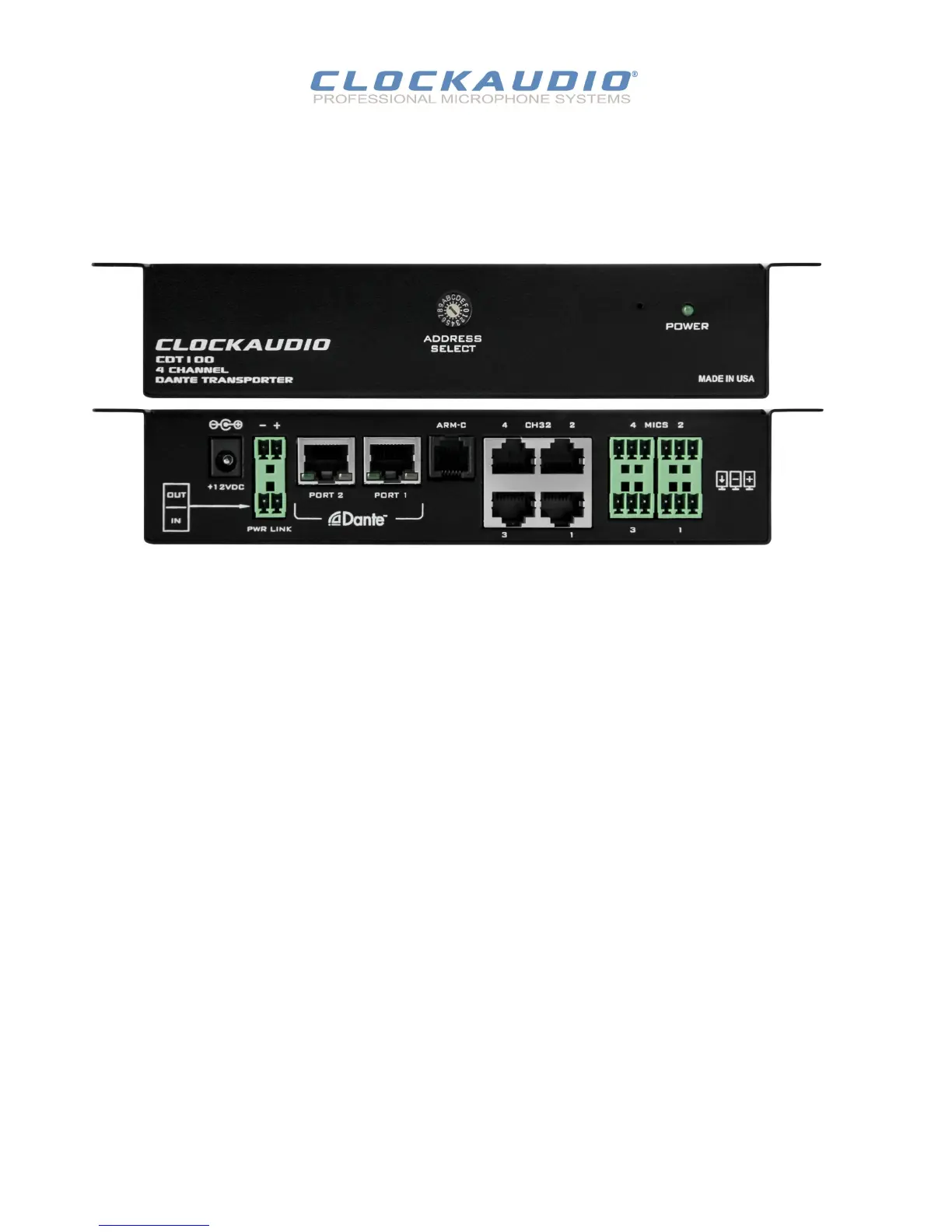

Figure 1 - CDT100 front and back panel
