Z4-8MK4 Installation and User Guide v1.2 7
PM Series paging microphones
Cloud PM paging microphones may be connected directly
to the Z8MK4 and Z4MK4. Models are available which can
page to 4, 8, 12 or 16 zones. Clearly, not all zones on the
‘higher’ models can be addressed with only one zone mixer.
See “Paging System connections” on page 13 for more
information.
PM1 paging microphone
The Cloud PM1 paging microphone is also compatible with the
Z8MK4 and Z4MK4. It is a much simpler unit which addresses
only one zone. See “Connecting a PM1 paging mic” on page
14 for more information.

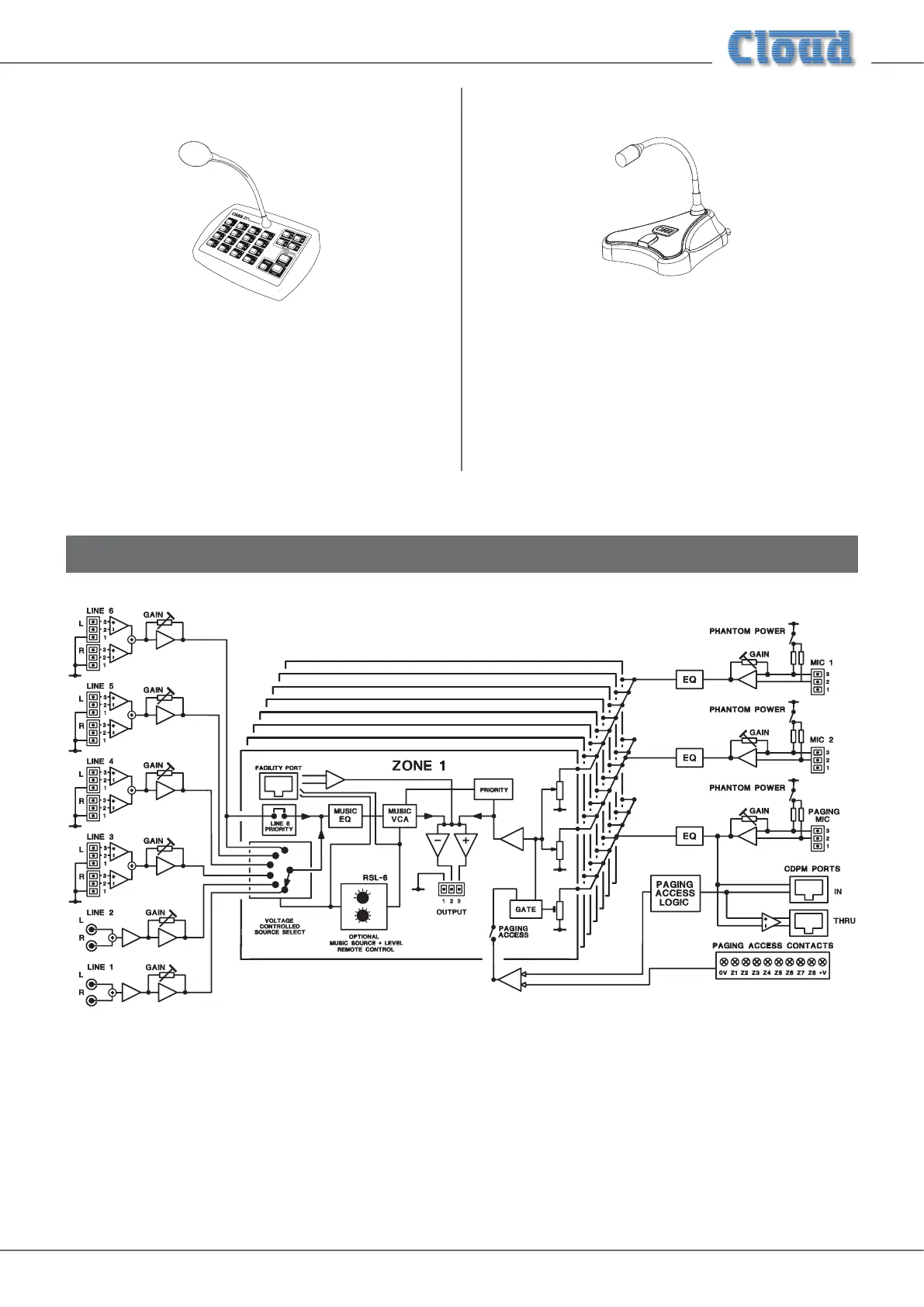

Block Diagram
The simplied block diagram above illustrates the basic signal architecture of the Z8MK4. Only the routing and logic for one zone
output is shown. The architecture of the Z4MK4 is identical, the only difference being the number of zone outputs.
